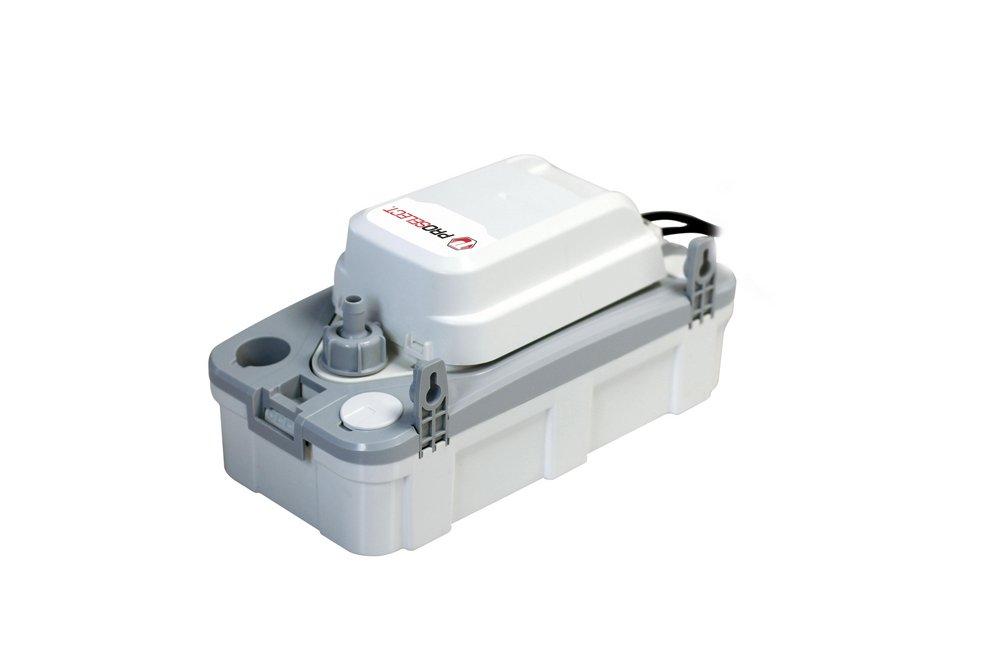

95W 115V 1.6A 1/35 hp 135 gph Condensate Pump

PROSELECT®

PSCPV3 95W 115V 1.6A 1/35 hp 135 gph Condensate Pump

Brand image
PROSELECT®

PSCPV3 95W 115V 1.6A 1/35 hp 135 gph Condensate Pump

  • Part #PSCPV315
  • Item #10030967
  • Manufacturer Part #PSCPV315
5 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1 CA: 6 PT: 252
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Product Details

  • Vapor guard technology to minimize the ingress of moisture into the electronics enclosure
  • Thermally protected, fan cooled motor with IP24 splashproof casing
  • Suitable for high-efficiency furnace, boiler, air conditioner or dehumidifier condensation
  • 6' power cord with molded 3-prong plug

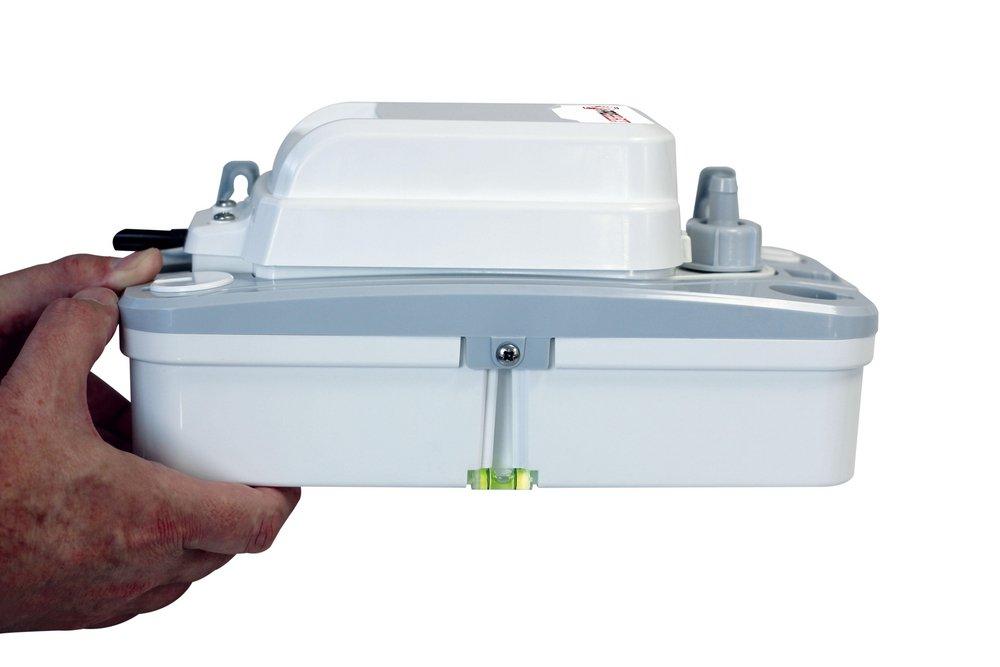

  • Built-in bubble level, wall mounting tabs and 4 inlet drain holes make installation flexible and easy
  • Removable 3/8" OD outlet barb with integrated non-return valve
  • Maximum working temperature of 140°F with short temperature excursions to 185°F
  • ABS tank, motor cover, and volute with stainless steel motor shaft
  • CSA listed

Specifications

AMP:
1.6
BTU:
1128000
CSA Certified:
CSA C22.2 No. 0, CSA C22.2 No. 0.4, CSA C22.2 No. 108
Capacity:
0.45 gal
Collection:
PSCPV3
Decibel Rating (dB):
44 dB
Discharge:
3/8 in
Flow Rate:
135 gph
Height:
5-9/32 in
Horsepower:
1/35 hp
Length:
11-7/32 in
Lift Capacity:
15 ton (short)
MBH:
1128
Maximum Feet of Head:
16
Origin:
Global
Power Source:
Electric
Product Type:
Condensate Pump
Pump Body Material:
ABS
Temperature Range:
Up to 140 Deg F
Tonnage:
94 Tons
Type:
PSCPV315
Volts:
115V
Watts:
95 W
Weight:
4.1 lb
Width:
5-21/32 in
