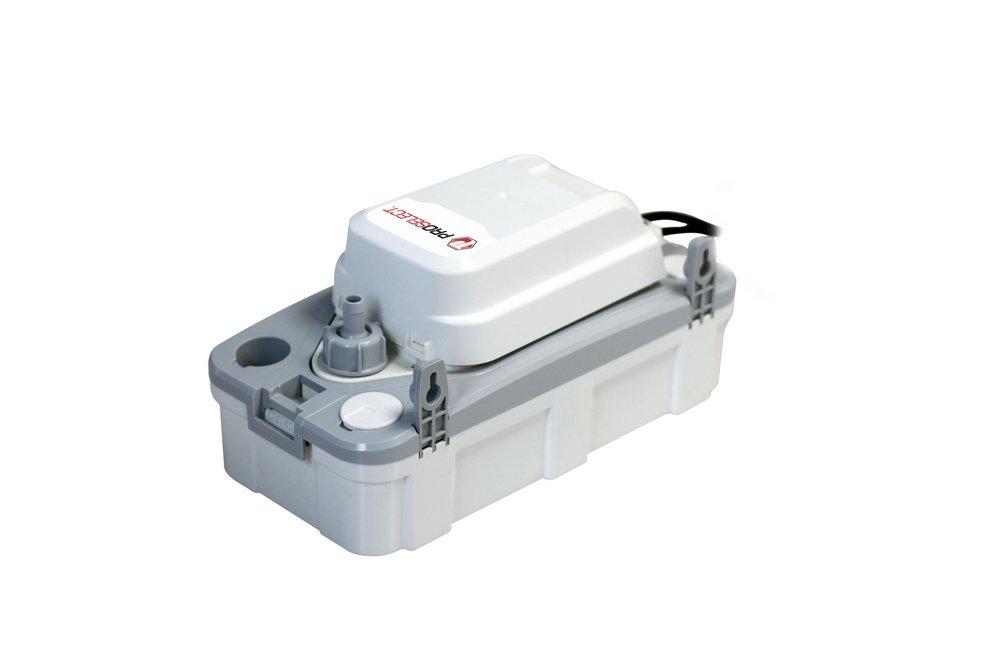

95W 115V 1.6A 1/35 hp 135 gph Condensate Pump with Safety Switch
PROSELECT®
PSCPV3 95W 115V 1.6A 1/35 hp 135 gph Condensate Pump with Safety Switch
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 6 Pallet: 252Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
PROSELECT®
PSCPV3
95W 115V 1.6A 1/35 hp 135 gph Condensate Pump with Safety Switch
PSCPV320WS
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Suitable for high-efficiency furnace, boiler, AC or dehumidifier condensation
- Float activated high-level safety switch can be wired to sound an alarm or shut down HVAC equipment to prevent overflow
- Vapor guard technology to minimize the ingress of moisture into the electronics enclosure
- Thermally protected, fan cooled motor with IP24 splashproof casing
- ABS tank, motor cover, and volute with stainless steel motor shaft
- Maximum working temperature of 140°F with short temperature excursions to 185°F

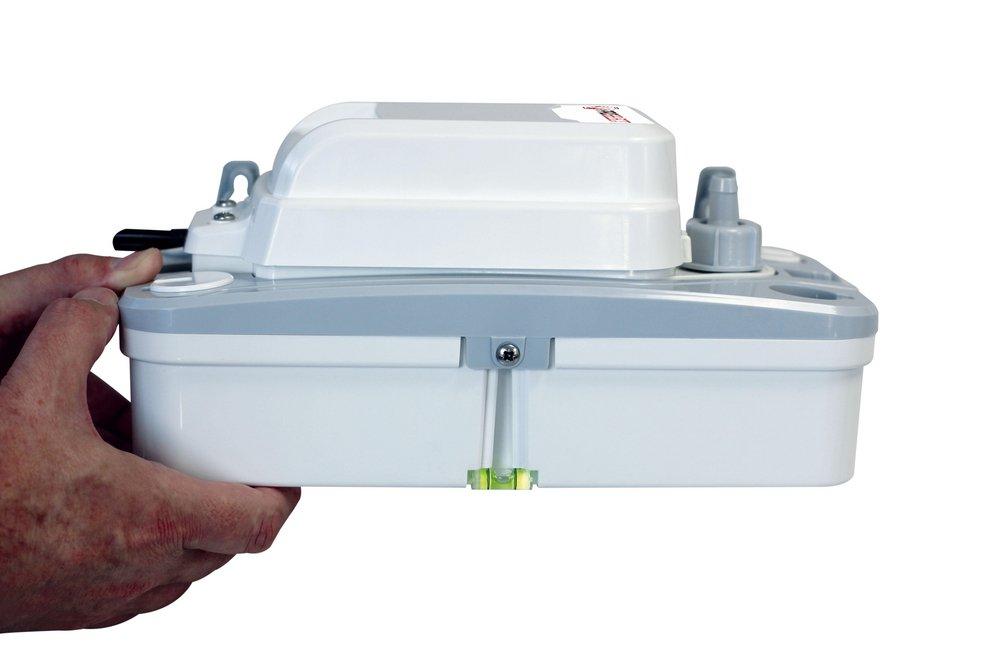

- Built-in bubble level, wall mounting tabs and 4 inlet drain holes make installation flexible and easy
- Removable 3/8" OD outlet barb with integrated non-return valve
- 6' power cord with molded 3-prong plug
- CSA listed
Dimensions & Measurements
Capacity
0.45 gal
Discharge
3/8 in
Flow Rate
135 gph
Height
5-9/32 in
Length
11-7/32 in
Lift Capacity
20 (short)
Maximum Feet of Head
21
Width
5-21/32 in
Characteristics & Features
Collection
PSCPV3
Proposition 65
WARNING: Reproductive Harm - www.P65Warnings.ca.gov
Pump Body Material
ABS
Electrical & Operational Information
AMP
1.6
Horsepower
1/35 hp
Power Source
Electric
Volts
115V
Watts
95 W
Warranty & Product Information
CSA Certified
CSA C22.2 No. 0, CSA C22.2 No. 0.4, CSA C22.2 No. 108
Origin
Global
Type
PSCPV320WS
UPC
781889916124
