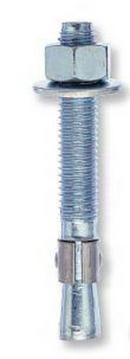

5/8 X 5 Stainless Steel 316 Wedge Anchor
You last purchased this on
REDHEAD
5/8 X 5 Stainless Steel 316 Wedge Anchor
Purchase history
REDHEAD
5/8 X 5 Stainless Steel 316 Wedge Anchor
SWW-5850
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Versatile fully threaded design is standard on sizes up to 3/4 in diameter and 10 in length
- Anchor diameter equals hole diameter
- 360 degree contact with concrete assures full expansion for reliable working loads
- Non bottom-bearing, may be used in hole depth exceeding anchor length
- Can be installed through the work fixture, eliminating hole spotting
- Inspectable torque values, indicating proper installation
- 2006 international building code (IBC) compliant
Documents
Specifications
- ANSI:
- ANSI B18.2.2, ANSI B18.22.1
- Application:
- Industrial, Pumps, Diffuser, Gate, Weir Plate
- Diameter:
- 5/8 in
- FM Approved:
- Yes
- Length:
- 5 in
- Material:
- Stainless Steel
- Material Type:
- 316
- Product Type:
- Wedge Anchor
- Thread Length:
- 3.25
- UL Listed:
- Yes
