3/4 in. Union Press Thermostat Mixing Valve

Resideo

AM-1 Series™ 3/4 in. Union Press Thermostat Mixing Valve

  • Fast #
  • Part #HAM101UP1LF
  • Item #7230102
  • Manufacturer Part #AM101-UP-1LF/U
3.2 out of 5 Customer Rating
Brand image

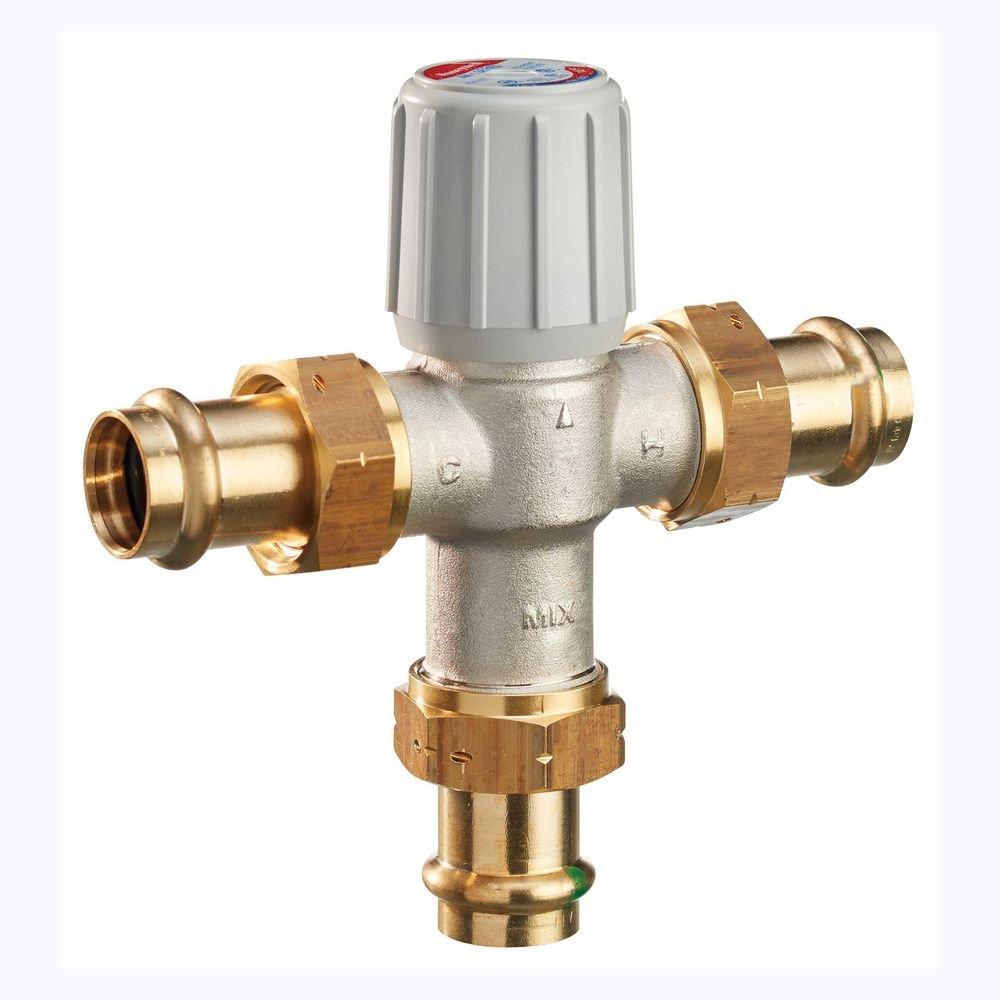

Resideo Metallic Union Press Thermostat Mixing Valve
Resideo Metallic Union Press Thermostat Mixing Valve
Resideo

AM-1 Series™ 3/4 in. Union Press Thermostat Mixing Valve

  • Fast #
  • Part #HAM101UP1LF
  • Item #7230102
  • Manufacturer Part #AM101-UP-1LF/U
3.2 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 12 Pallet: 360
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Features dual purpose mixing or diverting values
  • Offers constant water temperature under changing operating conditions
  • Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
  • Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
  • Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
  • Lead free products have products numbers end in LF
  • Available temperature gauge adapter in lead-free brass material with EPDM O-ring
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
Union Press
End Connection 2
Union Press
End Connection 3
Union Press
End Connections
Union Press
Fitting Size 1
3/4 in
Flow Rate
0.5 gpm
Height
6-1/5 in
Length
6-3/10 in
Pressure - Maximum
150 psi
Valve Size
3/4 in
Characteristics & Features
Collection
AM-1 Series™
Material
Brass, Plastic, Rubber
Material Type
EPDM, PTFE
Valve Body Material
Brass
Valve Body Style
Straight
Valve Material
Plastic
Valve Type
Thermostat Mixing Valve
Electrical & Operational Information
Maximum Temperature
145
Minimum Temperature
70
Warranty & Product Information
ANSI
ASSE 1017 Certified, CSA Listed, IAPMO Listed
ASME
ASSE 1017 Certified, CSA Listed, IAPMO Listed
ASSE Standards
ASSE 1017
ASTM
ASSE 1017 Certified, CSA Listed, IAPMO Listed
CSA Certified
Yes
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF Certified
No
Origin
Global
Recommended Valve Application
Water
UPC
085267499101
