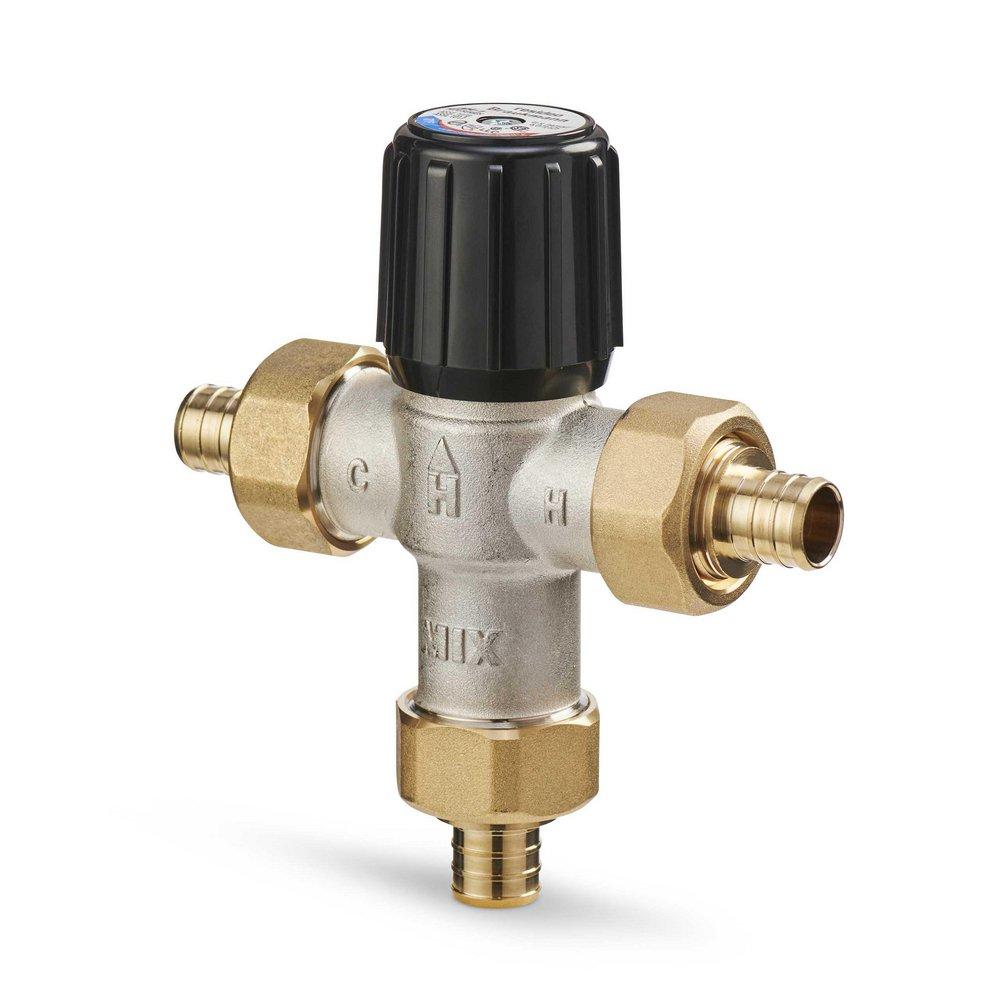

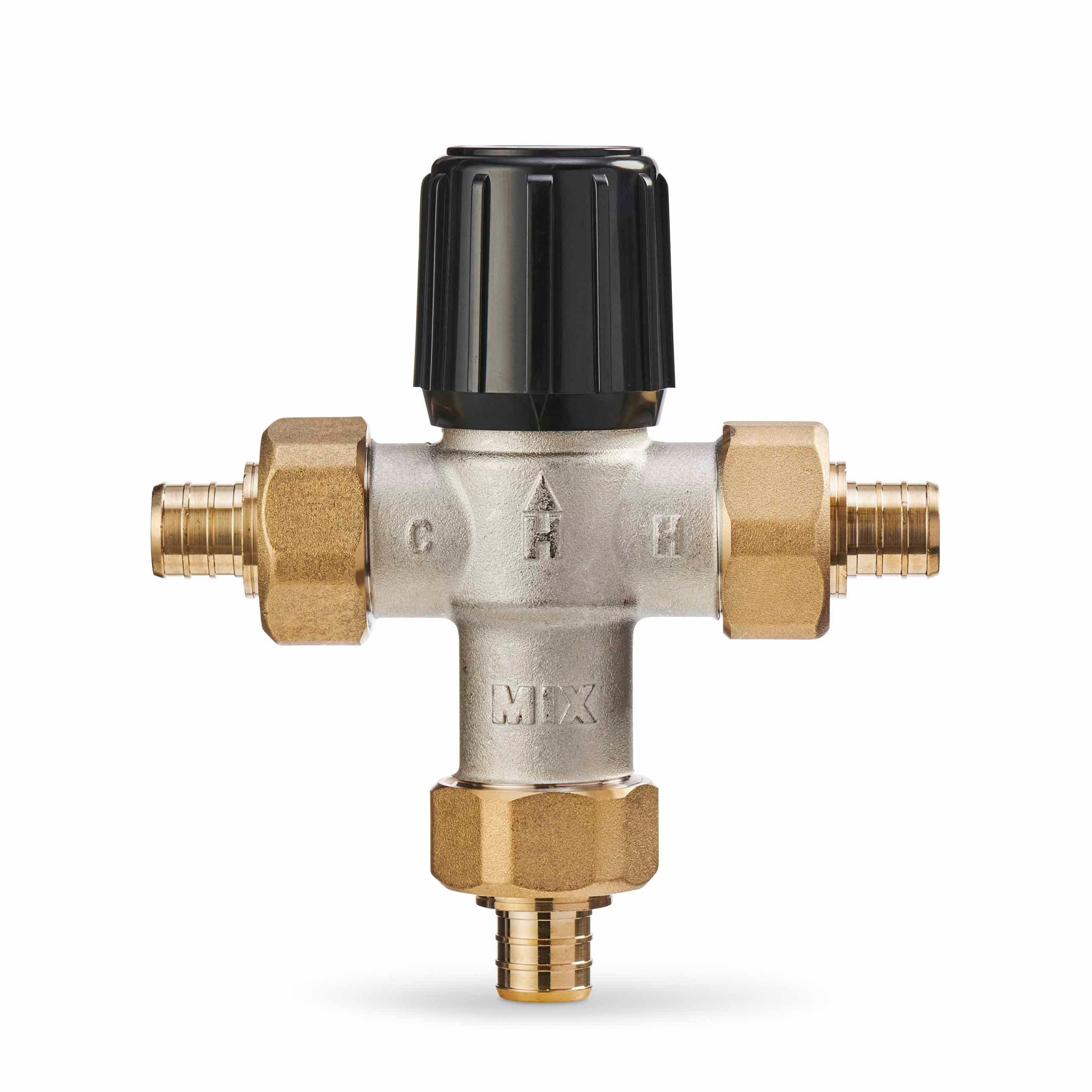

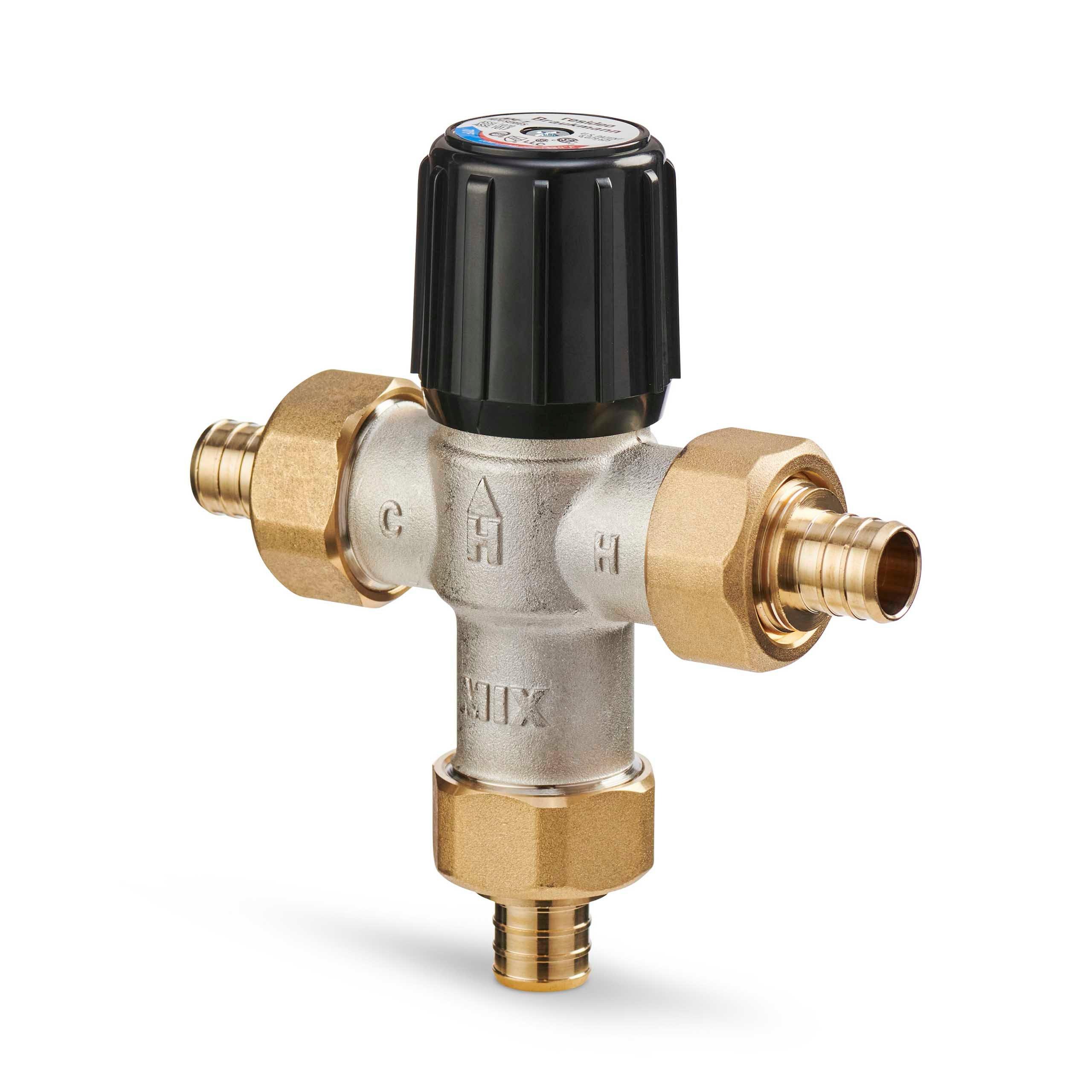

Union PEX Hydronic Mixing Valve Nickel Plated Brass, Rubber and Plastic 150 psi 120F
Resideo
AM-1 Series™ Union PEX Hydronic Mixing Valve Nickel Plated Brass, Rubber and Plastic 150 psi 120F
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 12 Pallet: 360Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Resideo
AM-1 Series™
Union PEX Hydronic Mixing Valve Nickel Plated Brass, Rubber and Plastic 150 psi 120F
AM100C1070-UPEX1LF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Color-coded black handwheel prevents tampering
- Free thermostrip included to make temperature setting easy for one person to handle
- Dual purpose mixing or diverting valves
- Constant water temperature under changing operating conditions
- Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
- Lead free products have products numbers end in LF
- Available Temperature Gauge Adapter in lead-free brass material with EPDM o-ring.
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Union PEX
End Connection 2
Union PEX
End Connections
Union PEX
Height
6 in
Length
5-1/10 in
Pressure - Maximum
150 psi
Valve Size
1/2 in
Characteristics & Features
Collection
AM-1 Series™
Material
Brass, Rubber, Plastic
Material Type
EPDM, PTFE
Valve Body Material
PTFE
Valve Body Style
Straight
Valve Material
Plastic
Electrical & Operational Information
Maximum Temperature
120
Warranty & Product Information
ANSI
ASSE 1017 Certified, ASSE 1070 Certified, IAPMO Listed
ASSE Standards
ASSE 1070, ASSE 1017
CSA Certified
ASSE 1017 Certified, ASSE 1070 Certified, IAPMO Listed
FM Approved
Yes
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
Origin
Global
UPC
085267337564
