Resideo L4064 Series Fan & Limit Controller 8 in Insert | Ferguson

Ferguson.com no longer supports Internet Explorer. If you continue using IE, your experience will be degraded and you will not be able to check out. To use Ferguson.com, please use one of the following browsers: Chrome, Safari, Firefox, or Edge.

Skip to main content Skip to footer content

Resideo

Resideo 4-1/5 in. HVAC Fan Control

Resideo 4-1/5 in. HVAC Fan Control

Resideo 4-1/5 in. HVAC Fan Control

Resideo

Fast #
Part #HL4064B2236
Item #70512
Manufacturer Part #L4064B2236

$188.99

EACH

Product Type: Controller

Log in or Create Account

Log in or Create an Account to see product availability.

Pick Up: 0 Available in Hilliard, OH - Available in 2 stores nearby
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

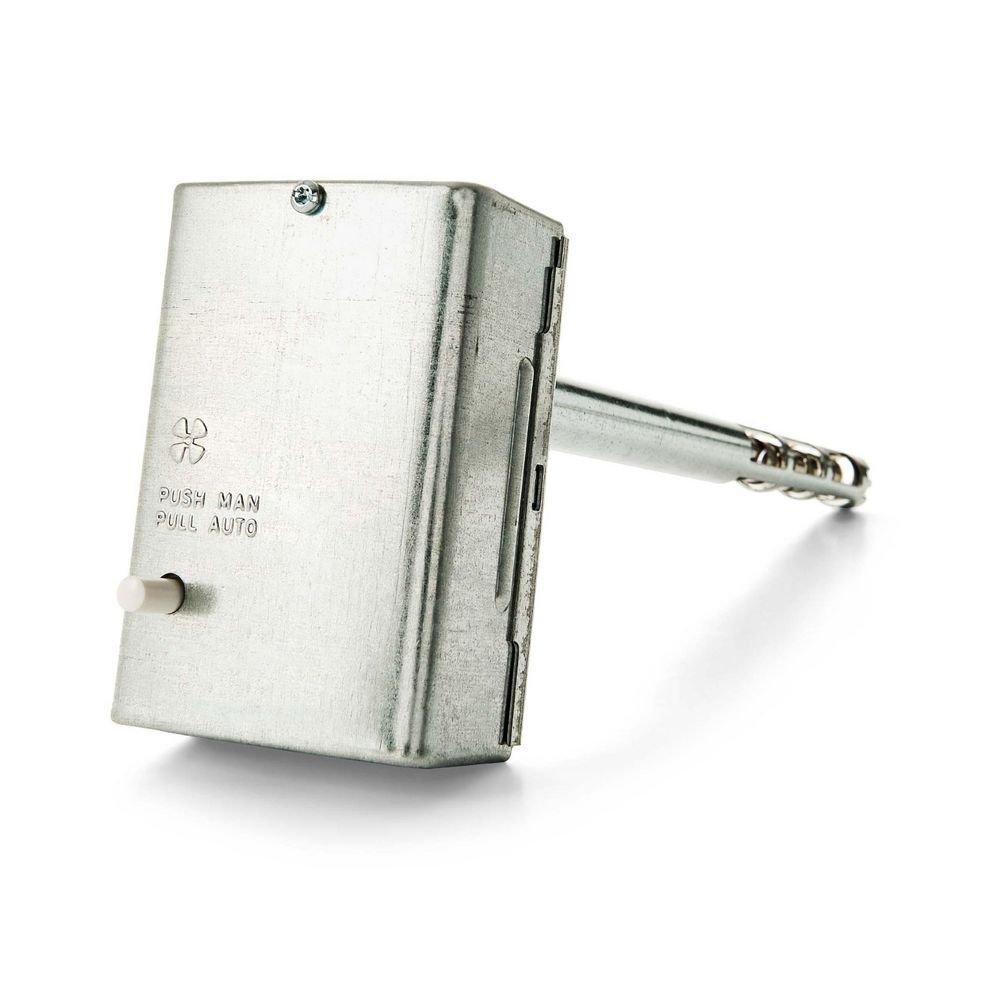

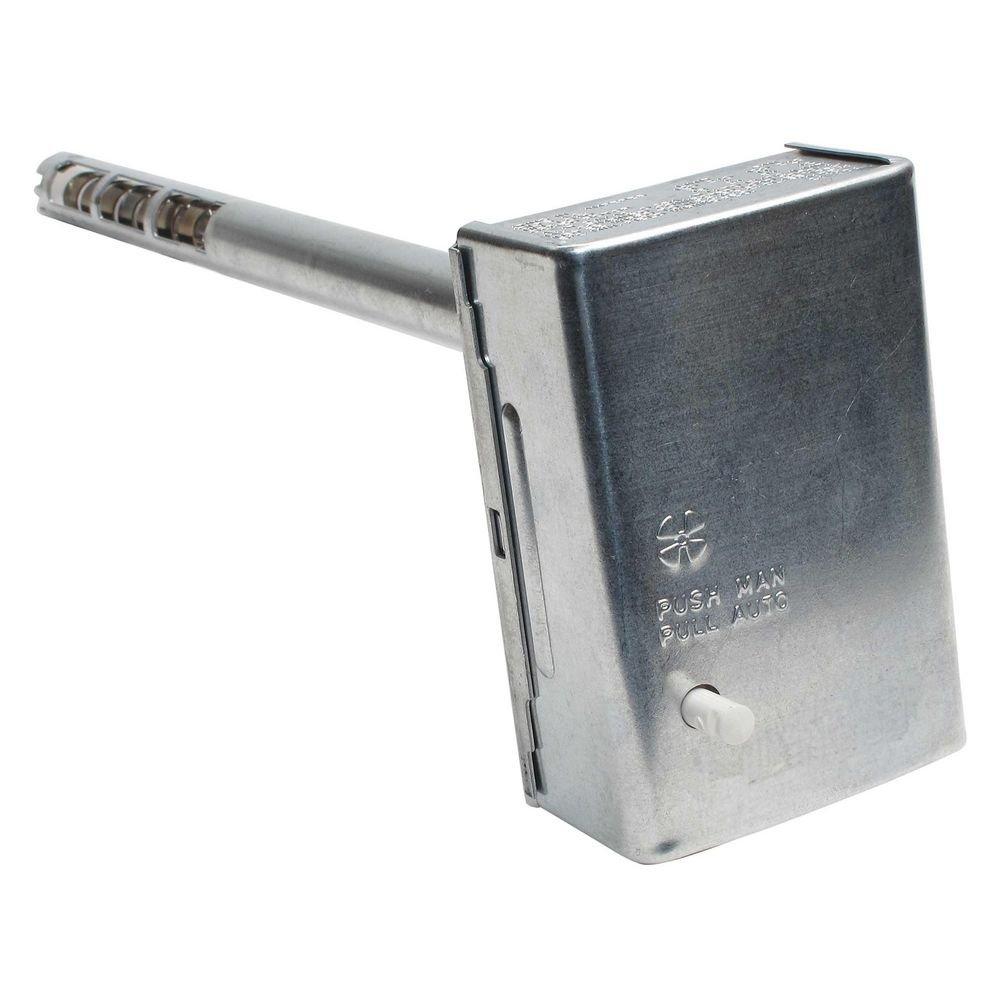

The L4064B have a manual fan switch which overrides the fan set points and keeps the fan running continuously
Variety of fan and high limit setting ranges available
Standard wire push-in terminals and female receptacles are provided to speed installation
Rigid or swivel bracket mounting or surface mounting
Suitable for line voltage, low voltage or millivoltage control applications
Slotted wiring knockouts for easy installation
L4064 adapts to most competitive mounting holes for ease in replacement installations
Locked rotor - (120V fan=84, limit 48), (240V fan=42, limit=24)
Maximum connected load - 2000V
Helical bi-metal sensing element

Documents

PARTS

WARRANTY

INSTALLATION

SPECIFICATION

Specifications

Application:: Fan

Collection:: L4064 Series

Depth:: 1-19/32 in

Product Type:: Controller

Temperature Range:: -40 to 190 Deg F

UL Listed:: Yes

Width:: 3 in
