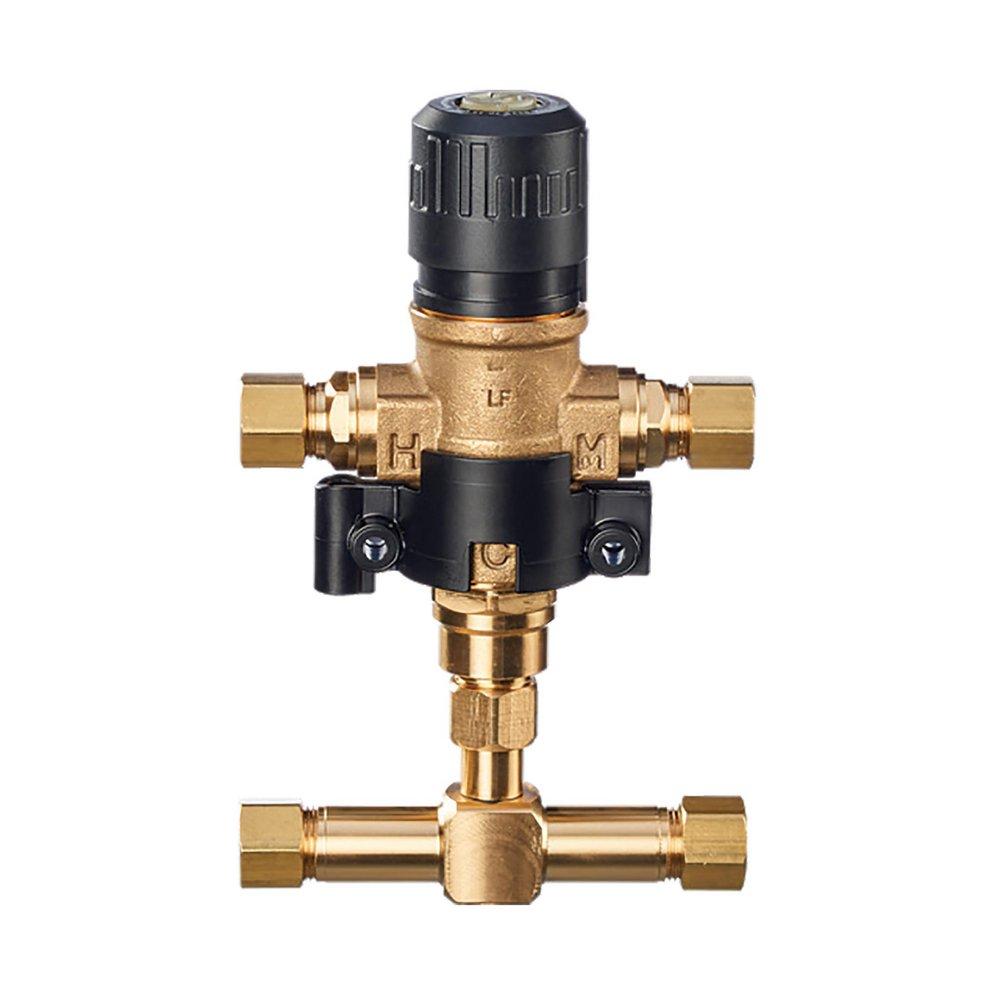

3/8 in Compression Thermostat Mixing Valve
Resideo
UMV Series 3/8 in Compression Thermostat Mixing Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 18 Pallet: 972Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Resideo
UMV Series
3/8 in Compression Thermostat Mixing Valve
UMV500-LF/U
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Universal design allows flexibility in adapting to three port or four port applications.
- Shipped with four port adapter.
- Shipped with standoffs for easy mounting.
- Integral check valves in hot and cold inlets.
- Lockable hand wheel for tamper resistant temperature setting.
- Lead Free (0.25% max. weighted average lead content)
Dimensions & Measurements
End Connection 1
Compression
End Connection 2
Compression
End Connections
Compression
Fitting Size 1
3/8 in
Flow Rate
4.3 gpm
Height
6 in
Length
3-1/8 in
Pressure - Maximum
125 psi
Valve Size
3/8 in
Characteristics & Features
Collection
UMV Series
Material
Forged Brass, Rubber, Stainless Steel
Valve Body Material
Forged Brass
Valve Material
Brass
Valve Type
Thermostat Mixing Valve
Electrical & Operational Information
Maximum Temperature
180
Warranty & Product Information
Application
Plumbing, Residential, Commercial
ASME
ASSE 1017 Listed, CSA Certified/Listed, IAPMO/UPC Listed, NSF/ANSI/CAN 61/372 Compliant, NSF/ANSI/CAN 61 : Q = 1
ASSE Standards
ASSE 1017
ASTM
ASSE 1017 Listed, CSA Certified/Listed, IAPMO/UPC Listed, NSF/ANSI/CAN 61/372 Compliant, NSF/ANSI/CAN 61 : Q = 1
CSA Certified
Yes
IAPMO Listed
Yes
NSF
NSF 61, NSF 372
NSF Certified
Yes
UPC
085267684224
