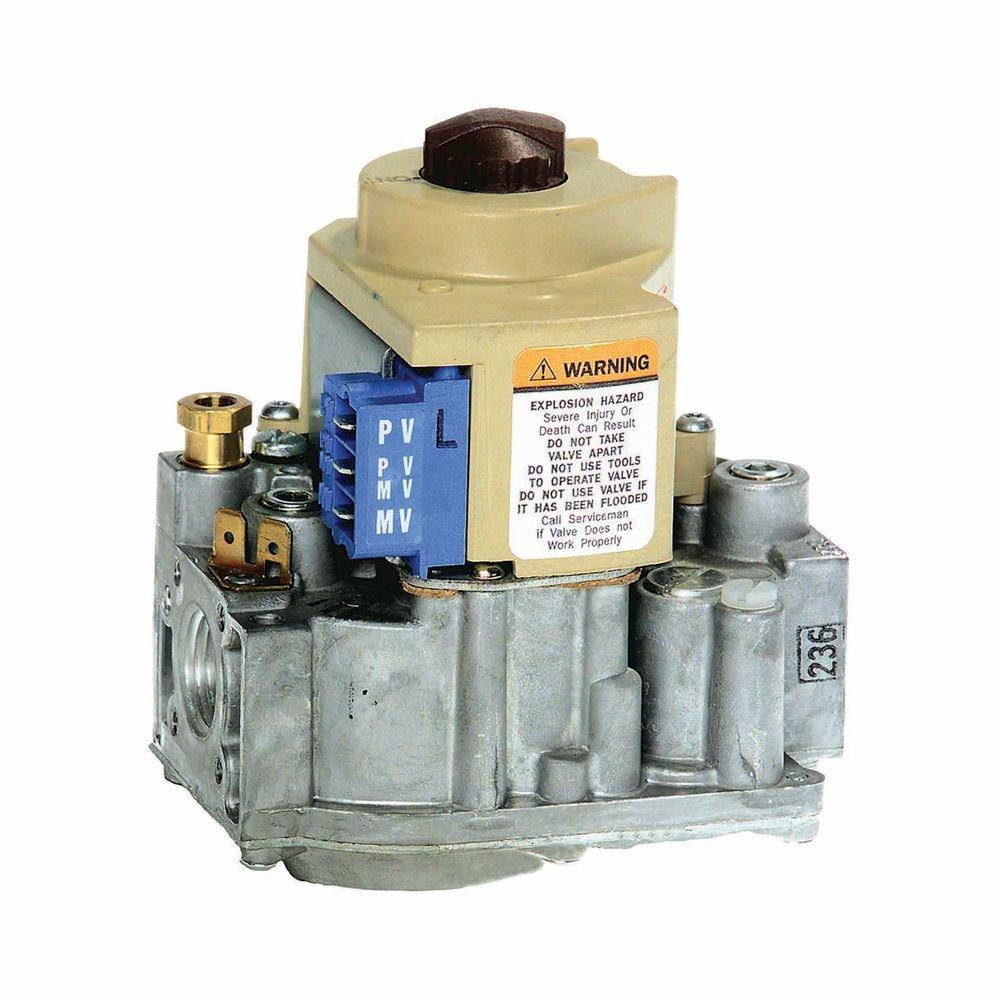

Single Stage 1/2 in Inlet x 1/2 in Outlet Intermittent Pilot Gas Valve - 24V
Resideo
VR8204 Series Single Stage 1/2 in Inlet x 1/2 in Outlet Intermittent Pilot Gas Valve - 24V
Points
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 12 Pallet: 288
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Resideo
VR8204 Series
Single Stage 1/2 in Inlet x 1/2 in Outlet Intermittent Pilot Gas Valve - 24V
VR8204A2076
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
- Compact size.
- Provide two automatic valves.
- Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
- Meet codes requiring dual safety shutoff.
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
- All adjustments, wiring connections and pilot outlet are accessible from top of control.
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
Dimensions & Measurements
Height
4-63/100 in
Inlet Outlet
1/2 in inlet/ 1/2 in outlet
Length
2-69/100 in
Width
4-13/100 in
Electrical & Operational Information
AMP
0.5
Fuel Type
Natural Gas
Power Source
Gas
Stages
Single
Volts
24V
Warranty & Product Information
UPC
085267112598
