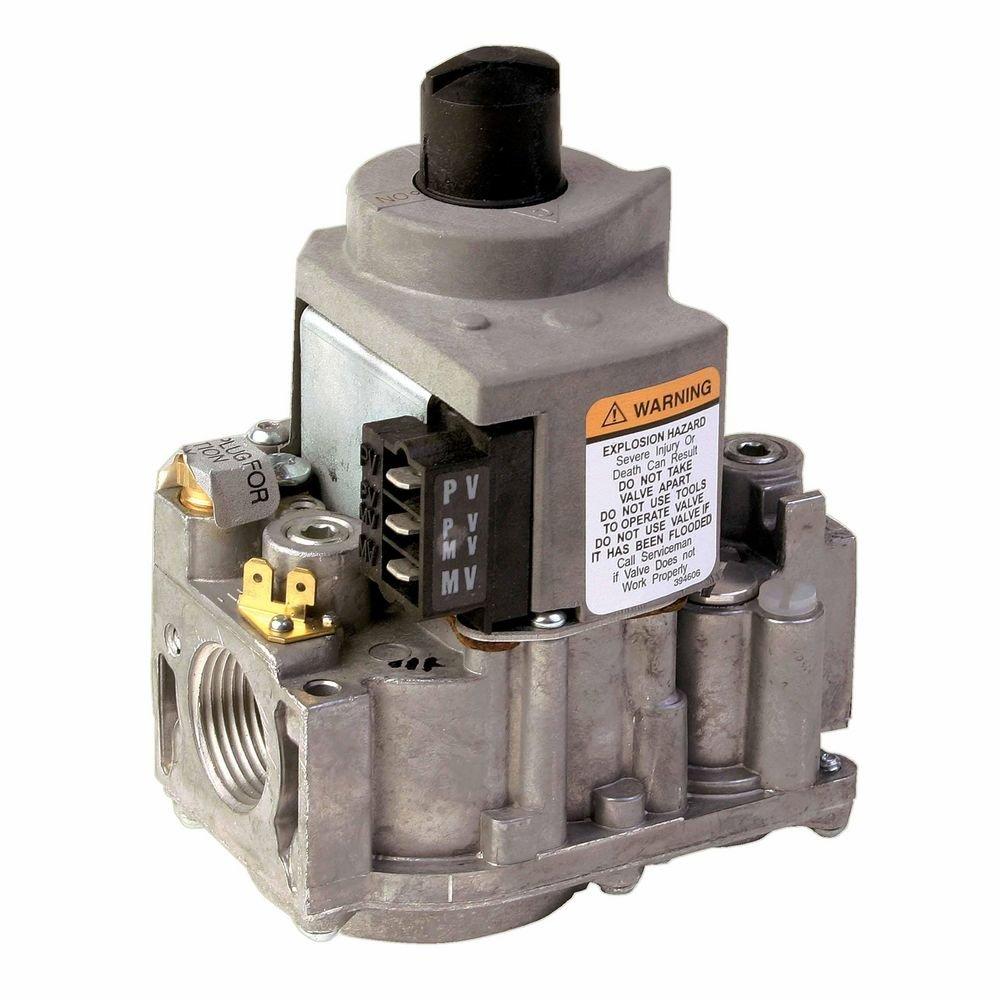

Multi-System Standard Opening 3/4 in Inlet x 3/4 in Outlet Intermittent Direct Ignition Gas Valve - 24V
Resideo
VR8345 Series Multi-System Standard Opening 3/4 in Inlet x 3/4 in Outlet Intermittent Direct Ignition Gas Valve - 24V
Points
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 12 Pallet: 360
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Resideo
VR8345 Series
Multi-System Standard Opening 3/4 in Inlet x 3/4 in Outlet Intermittent Direct Ignition Gas Valve - 24V
VR8345M4302
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter.
- Replaces many IP, HSI, or DSI gas control.
- For use with natural or manufactured gas or LP gas.
- Includes converter kit to adapt from natural to LP gas.
- Compact size.
- All adjustments and wiring connections accessible from top of control.
- Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules.
- Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper.
- Internal inlet screen blocks contaminants in gas line from entering valve.
Dimensions & Measurements
Height
5-19/50 in
Inlet Outlet
3/4 in inlet/ 3/4 in outlet
Length
2-20/29 in
Width
4-3/50 in
Electrical & Operational Information
Fuel Type
Propane, Natural Gas
Ignitor Type
Direct Spark
Power Source
Gas
Stages
Two
Volts
24V
Warranty & Product Information
UPC
085267780117
