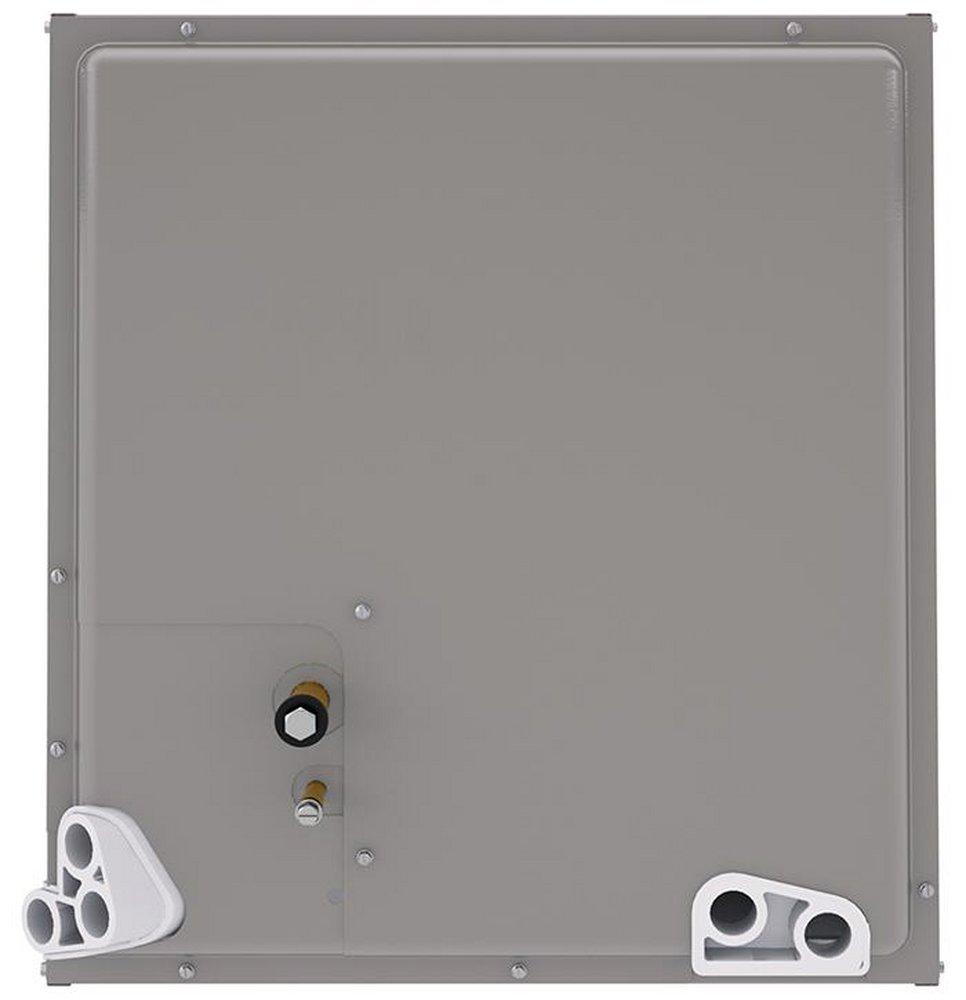

5 Ton - Multipoise - Standard Efficiency Cased Furnace A-Coil - R-454B EXV - 21" W
Rheem
Endeavor® Line 5 Ton - Multipoise - Standard Efficiency Cased Furnace A-Coil - R-454B EXV - 21" W
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Rheem
Endeavor® Line
5 Ton - Multipoise - Standard Efficiency Cased Furnace A-Coil - R-454B EXV - 21" W
RCFY6021SEAAMC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Constructed of aluminum fins bonded to internally grooved aluminum tubing
- Coils are tested at the factory with an extensive refrigerant leak check
- Coils have copper sweat refrigerant connections
- Approved for system application with variety of Rheem outdoor units
- Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
- Compatible with Germicidal Light System (UV resistant)
- Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right
- Unique drain pan design maximizes application flexibility and condensate removal
- N-Coil design maximizes performance and minimizes height required at installation;Coils are AHRI certified for system application with a variety of Rheem outdoor units
Product Information
-
A2L Compatible
Documents
Dimensions & Measurements
CFM
1800 ft3/min
Height
34-1/2 in
Length
21-11/16 in
Liquid Line (OD)
3/8 in
Suction Line (OD)
7/8 in
Tonnage
5 Ton
Weight
76 lb
Width
21 in
Characteristics & Features
A2L Compatible
Yes
Casing
Cased
Coil Type
Plate Fin
Collection
Endeavor® Line
Configuration
Multi-Position
Indoor Outdoor
Indoor
Material
Aluminum
Refrigerant
R-454B
Refrigeration Control Type
TXV
Electrical & Operational Information
BTU
60000
Warranty & Product Information
Type
RCFY6021SEAAMC
UL Listed
Yes
UPC
662021709425
