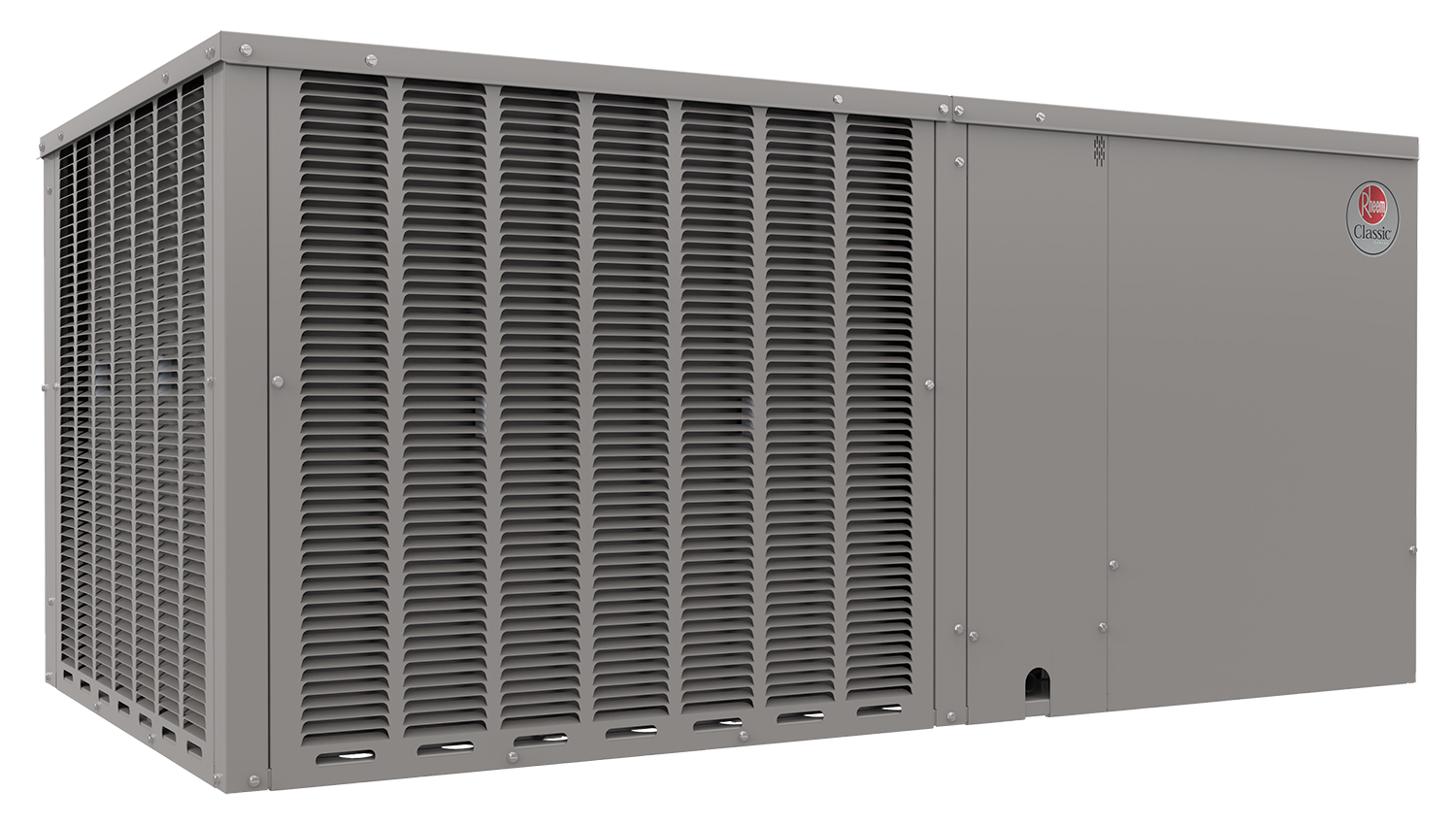

3 Ton - 13.4 SEER2 - Packaged Dedicated Horizontal Air Conditioner - No Electric Heat R454B - 208/230/1
Rheem
Endeavor® Line Classic® Series 3 Ton - 13.4 SEER2 - Packaged Dedicated Horizontal Air Conditioner - No Electric Heat R454B - 208/230/1
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Rheem
Endeavor® Line Classic® Series
3 Ton - 13.4 SEER2 - Packaged Dedicated Horizontal Air Conditioner - No Electric Heat R454B - 208/230/1
RACBYB036AJT000NA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- MicroChannel Evaporator and Condenser Coil: Delivers superior performance with a robust surface, a decreased refrigerant requirement and is lighter than conventional copper tube/aluminum fin coils. All-aluminum construction offers superior protection against formicary corrosion and aluminum tube rubbing damage. The design allows for easier and faster cleaning
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Scroll Compressors on all models: Provides maximum efficiency and quiet operation
- Two Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions
- High Pressure Control: Standard on all models for refrigerant component protection and reliability
- Double Sloped Evaporator Coil Drain Pan: Allows for complete water removal from the unit - contributing to improved indoor air quality
- Closed-Cell Insulation: Used on the base of the unit, to pre- vent moisture from being absorbed and helps reduce mold content
- Louvered Condenser Compartment: Protects the coil against yard hazards and/or weather extremes
- Easily Removable Outdoor and Indoor Section Top Cover: Allows access to the compressor, refrigerant tubing, blower housing and motors for easy required cleaning and service
- Easy High and Low Refrigerant Pressure Measurement: Two gauge ports located inside the control box allow for ease and accuracy
Product Information
-
A2L Compatible
Documents
Dimensions & Measurements
Height
35-15/16 in
Length
52-7/16 in
Tonnage
3 Ton
Weight
363 lb
Width
47-1/2 in
Characteristics & Features
A2L Compatible
Yes
Coil Type
Micro-channel
Collection
Endeavor® Line Classic® Series
Compressor Type
Scroll
EER2
10.6
EER2 Range
10.6 - 11.1
Factory Std. Refrigerant Charge
48 oz
Number of Condenser Fan Motors
1
Refrigerant
R-454B
Refrigeration Control Type
TXV
SEER2
13.4
SEER2 Range
13.4 - 13.7
Electrical & Operational Information
BTU
36000
BTU Cooling Rating
34200 Btu/h
Compressor Stages
Single Stage
Decibel Rating (dB)
75 dB
Horsepower
1 hp
Lock Rotor Amps (LRA)
93.5
Maximum Overcurrent Protection (MOP)
45
Minimum Circuit Ampacity (MCA)
30.3
Phase
Single Phase
Power Source
Electric
Rated Load Amps (RLA)
16.7
Volts
208/230V
Warranty & Product Information
CEC Compliant
For Sale in CA
Energy Star Compliant
No
Type
RACBYB036AJT000NA
UL Listed
Yes
UPC
662021735493
