3 Ton - 14.3 SEER2 - Two-Stage iM Heat Pump - R-454B - 460/3

Rheem

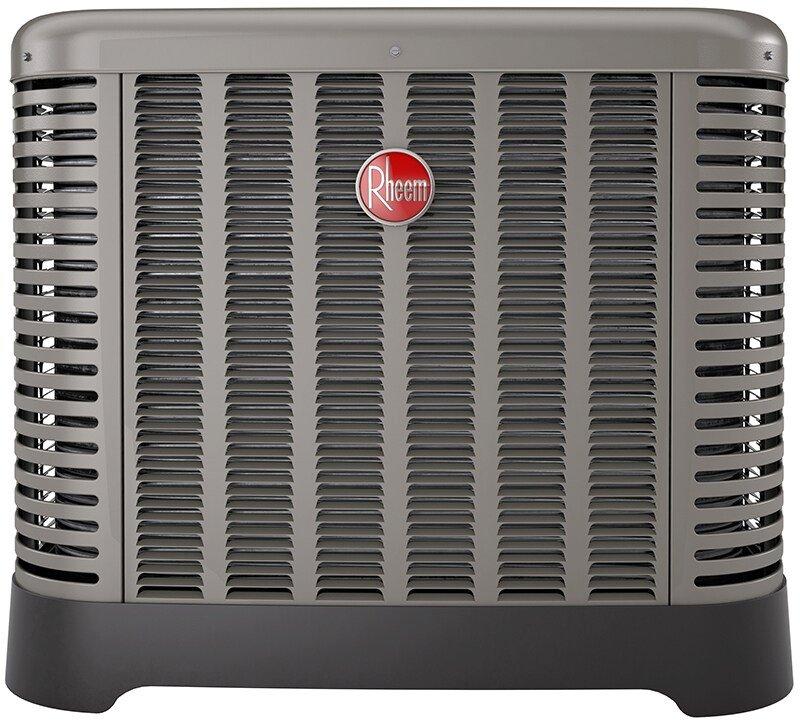

Endeavor® Line Classic® Series 3 Ton - 14.3 SEER2 - Two-Stage iM Heat Pump - R-454B - 460/3

  • Fast #
  • Part #RP14AY36AD2NA
  • Item #11635401
  • Manufacturer Part #RP14AY36AD2NA
3.6 out of 5 Customer Rating
Brand image
3T 14.3 SEER2 H/P 460/3 R454B
3T 14.3 SEER2 H/P 460/3 R454B
3T 14.3 SEER2 H/P 460/3 R454B
3T 14.3 SEER2 H/P 460/3 R454B
Rheem

Endeavor® Line Classic® Series 3 Ton - 14.3 SEER2 - Two-Stage iM Heat Pump - R-454B - 460/3

  • Fast #
  • Part #RP14AY36AD2NA
  • Item #11635401
  • Manufacturer Part #RP14AY36AD2NA
3.6 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Two-Stage Scroll Compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors
  • Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
  • PlusOne® Expanded Valve Space: 3 in. – 4 in. – 5 in. service valve space-provides a minimum working area of 27-square inches for easier access
  • PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels-makes repairs easier and faster
  • Requires Certification

  • A2L Compatible

Documents

SPECIFICATION

Specifications

A2L Compatible:
Yes
BTU:
36000
BTU Cooling Rating:
34200 Btu/h
BTU Heat Rating:
33600 Btu/h
CEC Compliant:
For Sale in CA
CFM:
4077 ft3/min
Coefficient of Performance (COP):
3.4
Coil Type:
Plate Fin
Collection:
Endeavor® Line Classic® Series
Compressor Stages:
Two Stage
Compressor Type:
Scroll
Decibel Rating (dB):
72 dB
Depth:
33-3/4 in
Factory Std. Refrigerant Charge:
94 oz
HSPF2:
7.5
Height:
35 in
Horsepower:
1/5 hp
Liquid Line (OD):
3/8 in
Lock Rotor Amps (LRA):
44
Maximum Overcurrent Protection (MOP):
15
Minimum Circuit Ampacity (MCA):
7
Number of Condenser Fan Motors:
1
Phase:
Three Phase
Power Source:
Electric
Rated Load Amps (RLA):
5
Refrigerant:
R-454B
Refrigeration Control Type:
TXV
SEER2:
14.3
Suction Line (OD):
3/4 in
Tonnage:
3 Ton
UL Listed:
Yes
UPC:
662021694790
Volts:
460V
Weight:
202 lb
Width:
33-3/4 in
