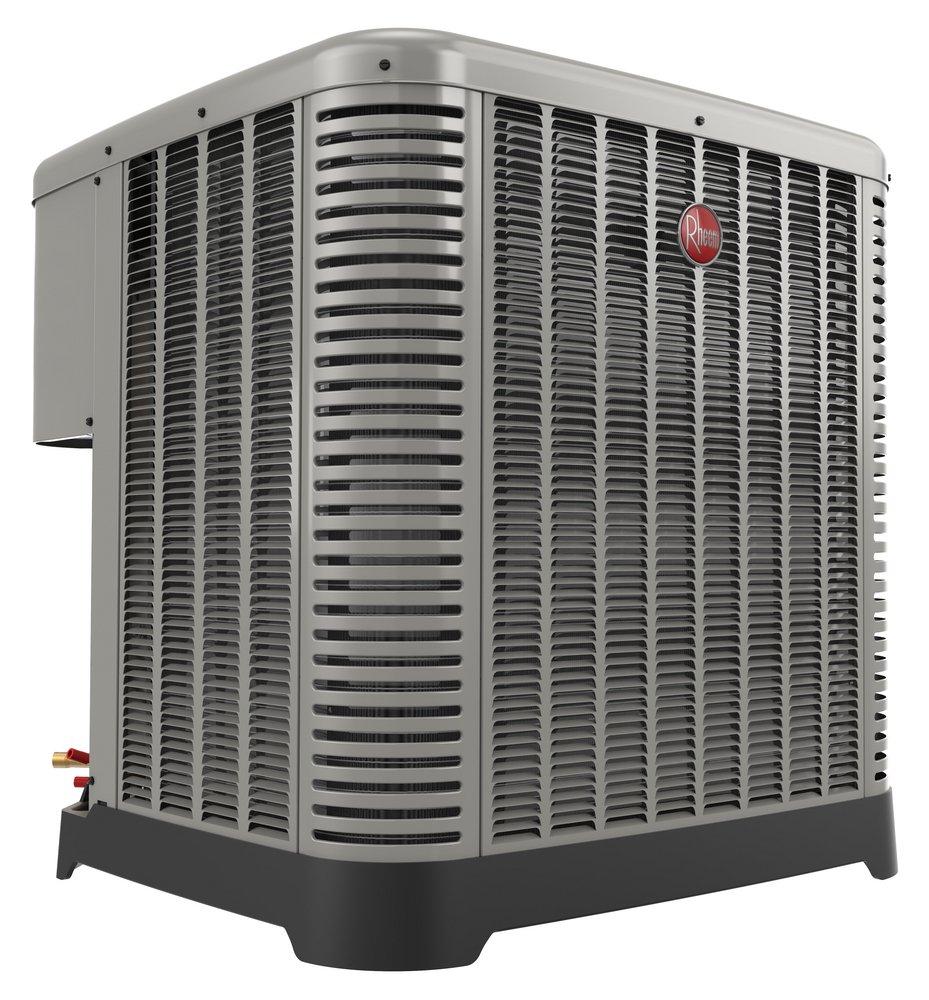

2 Ton - 14.3 SEER2 - Two-Stage - iM Heat Pump- 208/230/1/60 - R-454B
Ruud
Endeavor® Line 2 Ton - 14.3 SEER2 - Two-Stage - iM Heat Pump- 208/230/1/60 - R-454B
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Ruud
Endeavor® Line
2 Ton - 14.3 SEER2 - Two-Stage - iM Heat Pump- 208/230/1/60 - R-454B
RP14AY24AJ2NA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- A2L Compatible
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
Product Information
-
A2L Compatible
Dimensions & Measurements
CFM
2620 ft3/min
Depth
29-3/4 in
Height
25 in
Liquid Line (OD)
3/8 in
Suction Line (OD)
3/4 in
Tonnage
2 Ton
Weight
153 lb
Width
29-3/4 in
Characteristics & Features
A2L Compatible
Yes
Collection
Endeavor® Line
Communicating
Non-Communicating
Compressor Type
Scroll
EER2
9
EER2 Range
0 - 10.5
Factory Std. Refrigerant Charge
83 oz
HSPF2 Range
7.5 - 25.0
Refrigerant
R-454B
Refrigeration Control Type
TXV
SEER2
14.3
SEER2 Range
13.4 - 13.7
Electrical & Operational Information
AMP
16
BTU
24000
BTU Cooling Rating
22800 Btu/h
BTU Heat Rating
22800 Btu/h
Compressor Stages
Two Stage
Decibel Rating (dB)
73 dB
Horsepower
1/6 hp
Max Fuse Size
25
MBH
24
Phase
Single Phase
Power Source
Electric
Volts
208/230V
Watts
145 W
Warranty & Product Information
Application
Residential
HSPF2
7.5
UL Listed
Yes
UPC
662021694745
