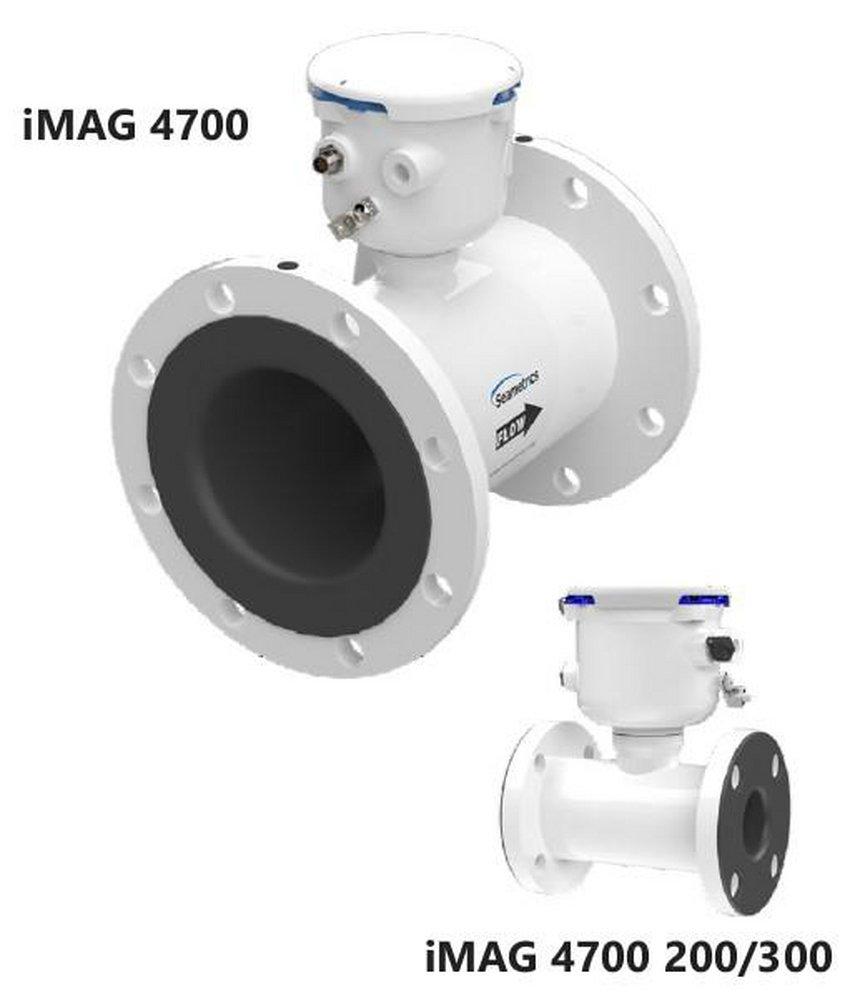

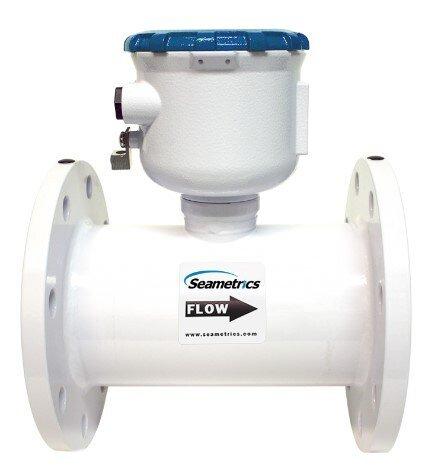

Mag Meter 6 in. Battery Powered Integral Display with Pulse Output

Seametrics

iMAG4700 Mag Meter 6 in. Battery Powered Integral Display with Pulse Output

  • Fast #
  • Part #SIMAG4700B600
  • Item #9826160
  • Manufacturer Part #IMAG4700-0600-F1-P-BX-X-XX-0000
5 out of 5 Customer Rating
Brand image
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics White Welded Steel, Plastic, Rubber, Die Cast Aluminum and Stainless Steel Magmeter
Seametrics

iMAG4700 Mag Meter 6 in. Battery Powered Integral Display with Pulse Output

  • Fast #
  • Part #SIMAG4700B600
  • Item #9826160
  • Manufacturer Part #IMAG4700-0600-F1-P-BX-X-XX-0000
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
Looking for compatible parts?

Product Details

Product Description
  • The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market.
  • With electrodes designed to discourage fouling, it is available in 2” to 12” pipe in municipal or industrial water/wastewater and reclaimed water applications

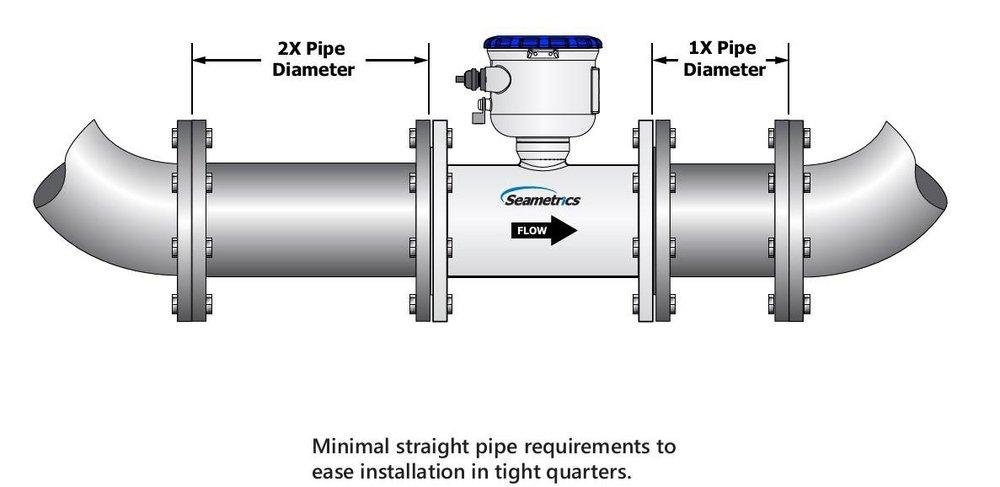

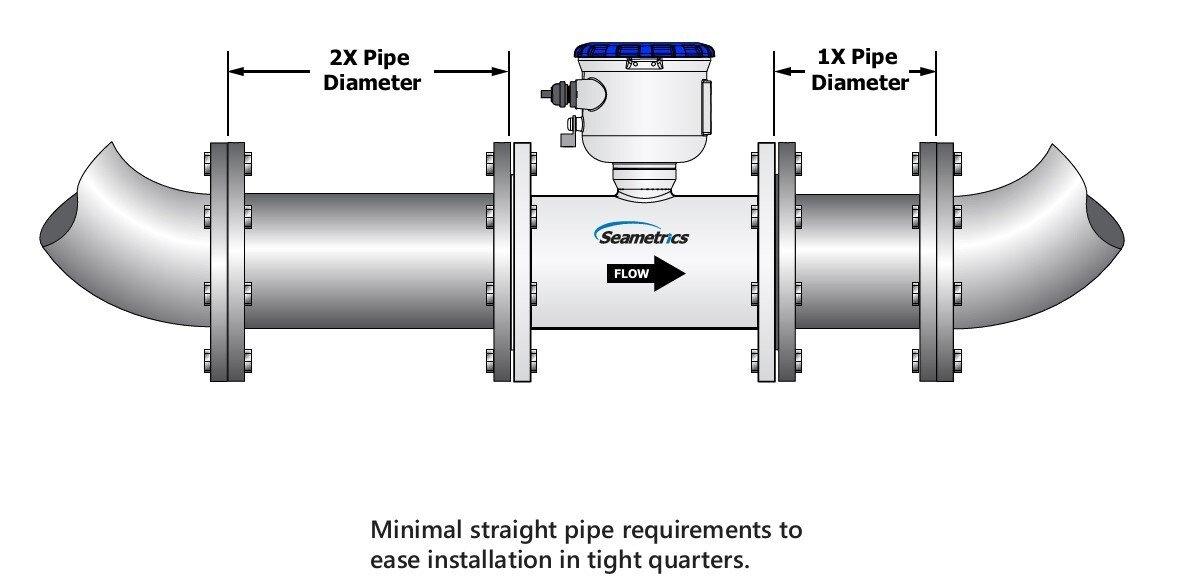

  • Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow
  • IMAG-Series meters are CE certified, certified to NSF/ANSI standard 61 and are rated IP68 for applications where the meter may be operated under water to a depth of at least 10 feet continuously
  • Battery powered for those remote locations where a power source is not available

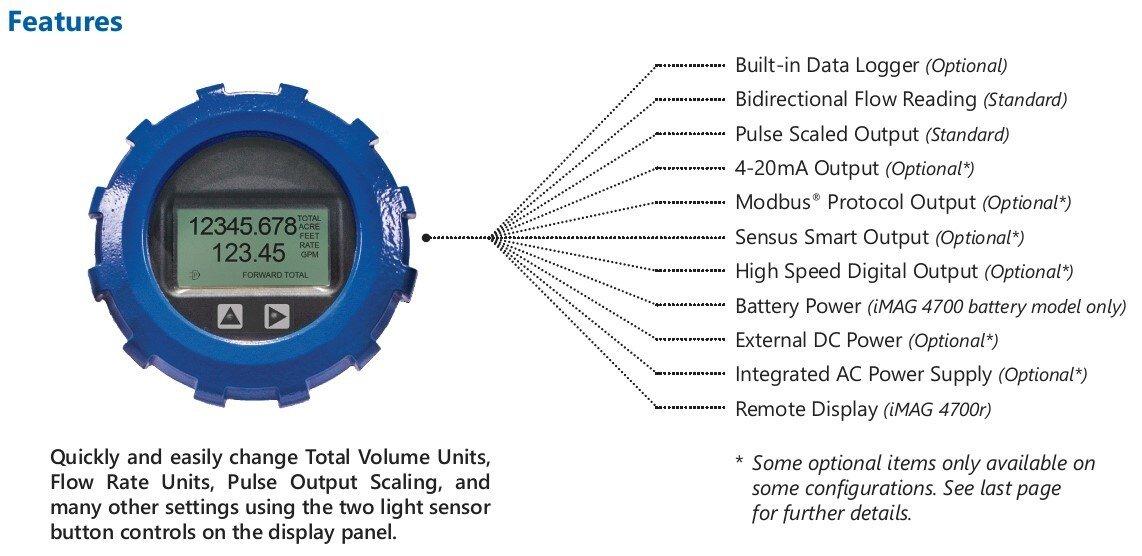

  • Standard with one pulse output
  • Grounding rings sold separately (2x S10409306)
  • NSF Gaskets (x2) included
  • MFG Part Code Configuration: IMAG4700-0600-US-P-BX-X-XX-0000
  • BABA Compliant
  • Requires Certification
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Fitting Size 1
6 in
Fitting Size 2
6 in
Fitting Sizes
6 in

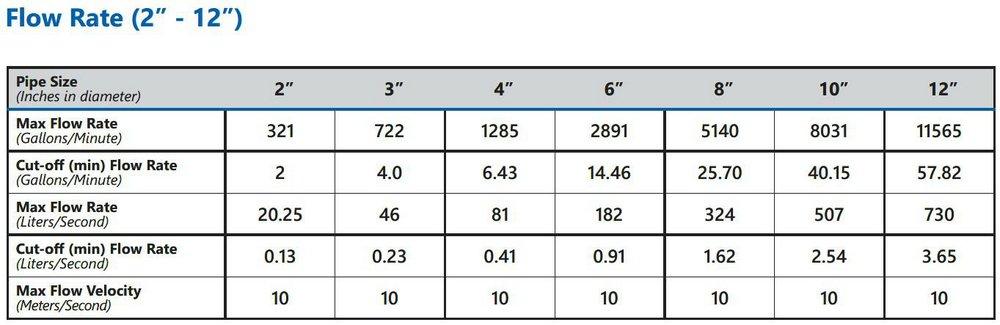

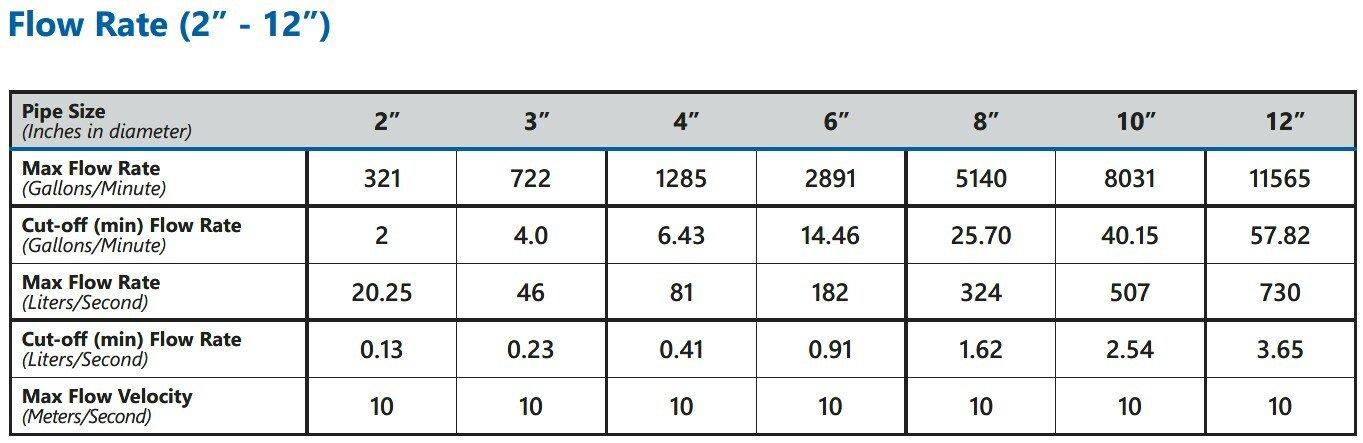

Flow Rate
2891 gpm
Height
14-16/25 in
Length
12-9/100 in
Pressure - Maximum
150 psi
Weight
49 lb

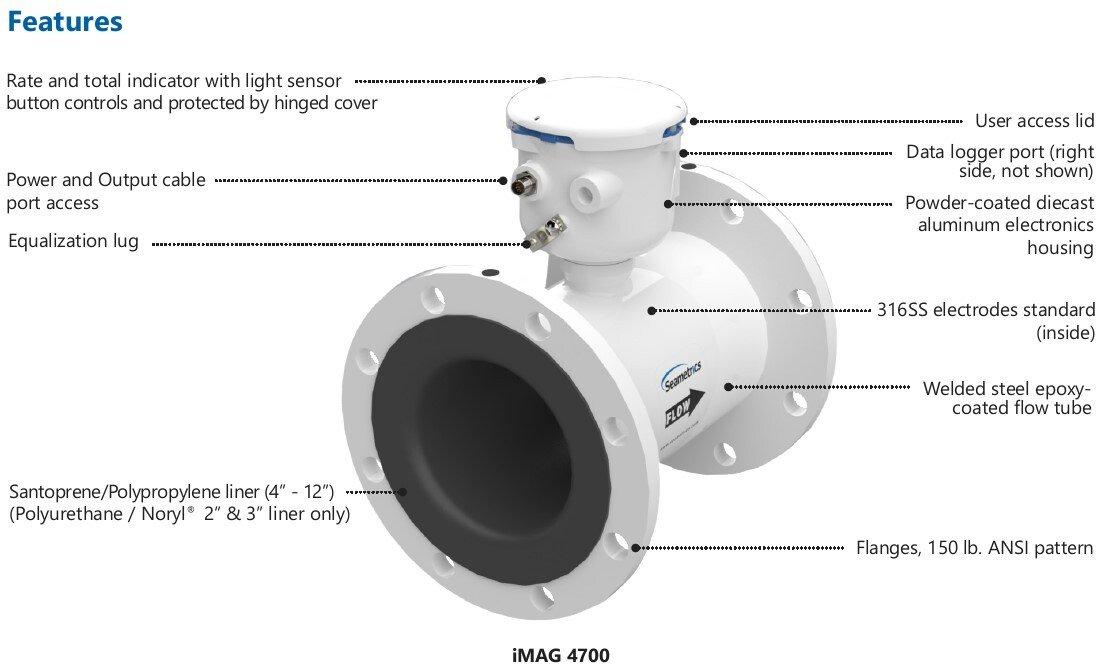

Characteristics & Features
Battery Size
7.2V D
Coating
Epoxy
Collection
iMAG4700
Color Finish Name
White
Fitting Type
Flange
Material
Welded Steel, Plastic, Rubber, Die Cast Aluminum, Stainless Steel
Material Type
Polyurethane, Santoprene
Electrical & Operational Information
Maximum Temperature
140
Warranty & Product Information
ANSI
ANSI 61
NSF
NSF 61
NSF Certified
Yes
