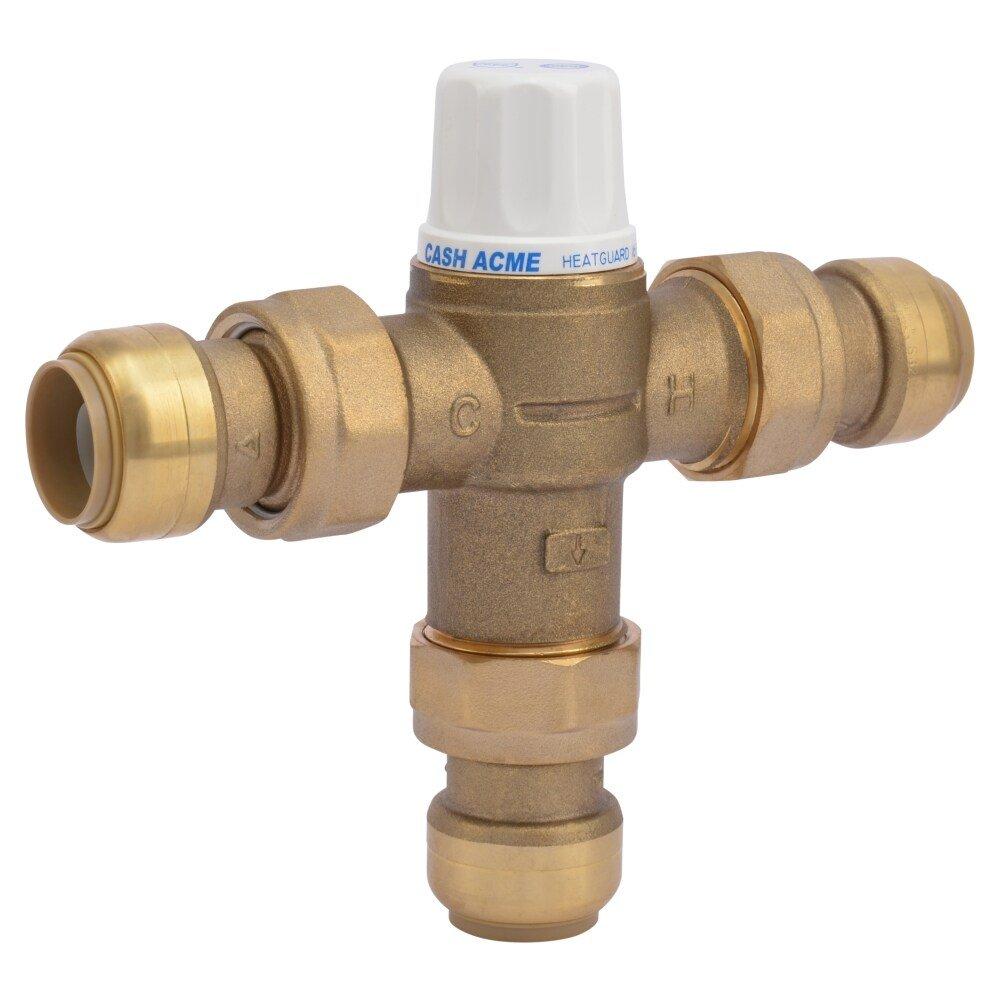

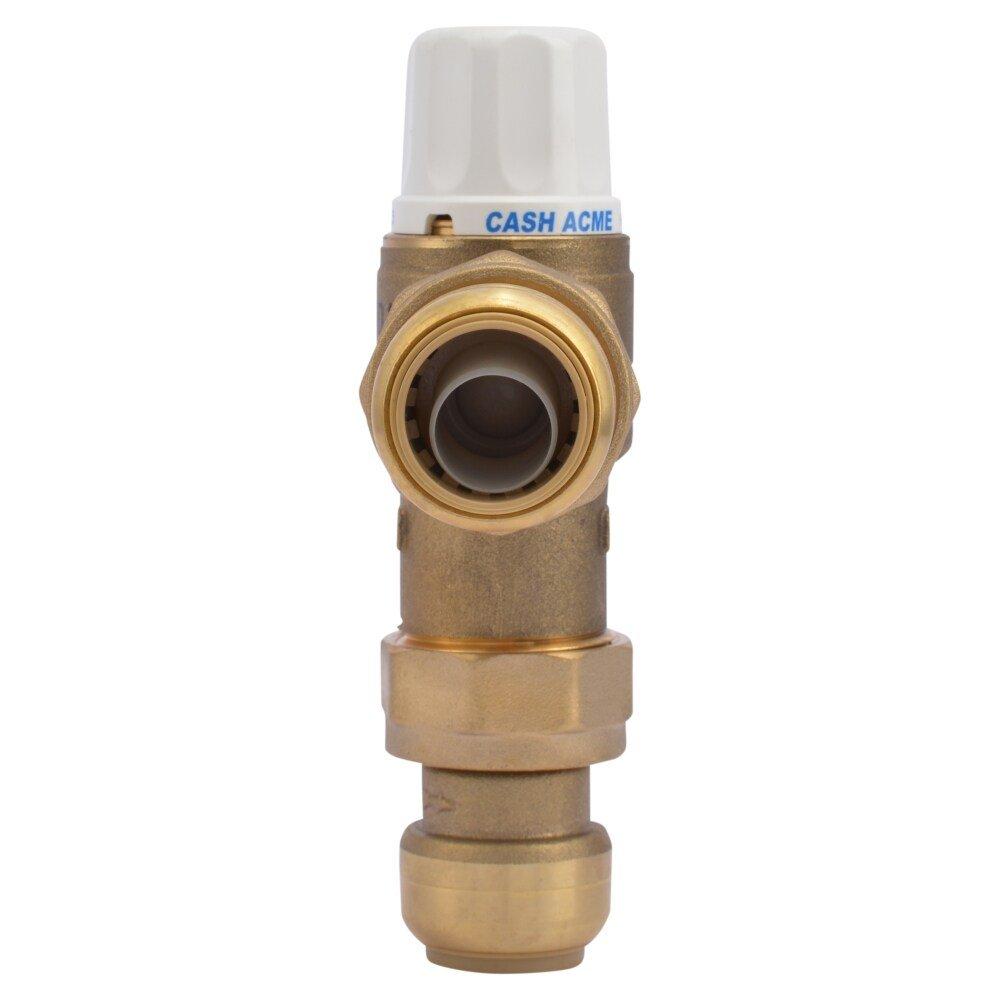

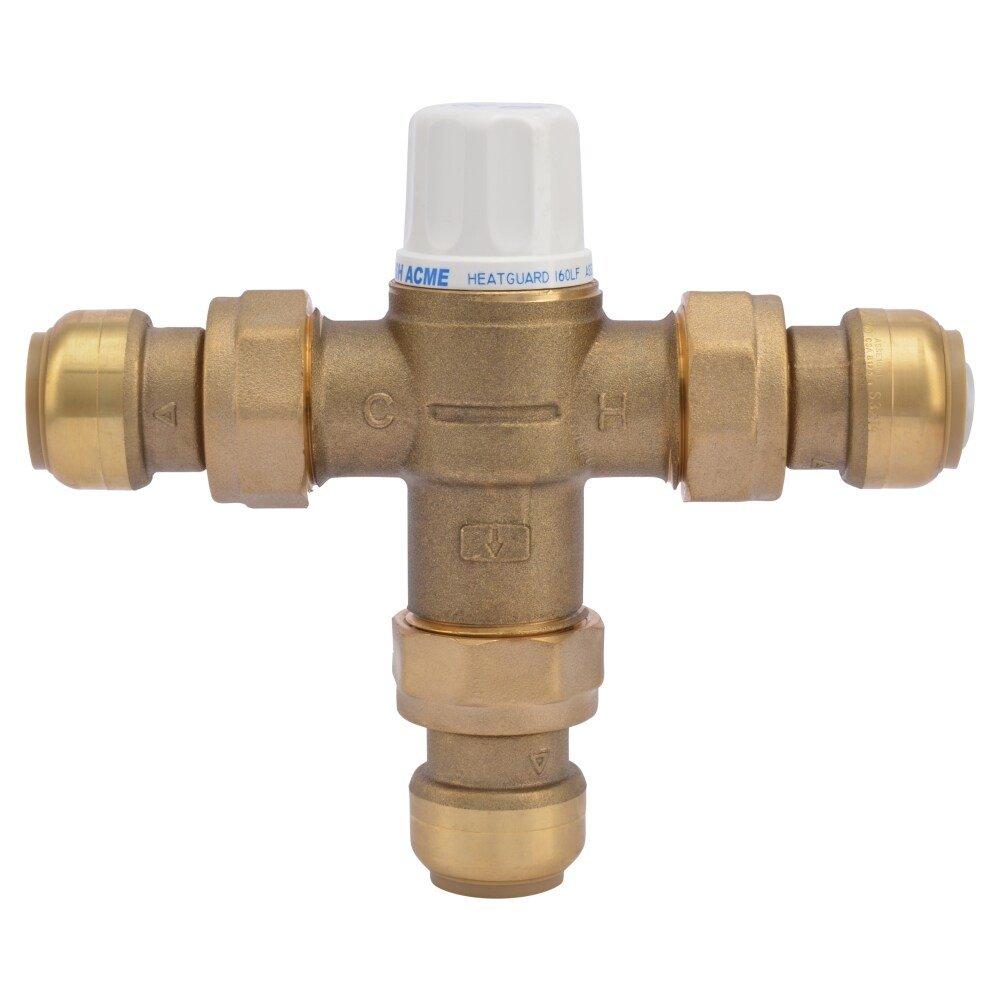

3/4 in. Thermostatic Mixing Valve with Connector
SharkBite®
3/4 in. Thermostatic Mixing Valve with Connector
Package Quantity Info:
Each: 1 Case: 12Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
SharkBite®
3/4 in. Thermostatic Mixing Valve with Connector
24530
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Compatible with PEX, copper, CPVC and PE-RT pipe
- Triple listed: ASSE 1017, ASSE 1069 & ASSE 1070
- Approved for use at the source (water heater), at the point-of-use (sink, shower, bath) or at multiple fixtures
- No special tools, crimping, glue or soldering is needed
- Remove if needed using Disconnect Clip or Disconnect Tongs (both sold separately)
- Outlet temperature range is factory set at 120°F (49°C) and adjustable anywhere from 85°F (29°C) - 130°F (54°C) to prevent scalding water temperatures
Product Information
-
Lead Law Compliant
Dimensions & Measurements
Depth
1-1/2 in
End Connection 1
Push-to-Connect
End Connection 2
Push-to-Connect
End Connection 3
Push-to-Connect
End Connections
Push-to-Connect
Flow Rate
11 gpm
Height
4-1/2 in
Length
5-3/16 in
Pressure - Maximum
145 psi
Valve Size
3/4 in
Characteristics & Features
Material
Bronze
Valve Body Material
Bronze
Valve Seat Material
EPDM
Valve Type
Hydronic Mixing Valve
Electrical & Operational Information
Maximum Temperature
180
Temperature Range
33 to 180 Deg F
Warranty & Product Information
ASSE Standards
ASSE 1069, ASSE 1070
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 14, NSF 61, NSF 372
NSF Certified
Yes
Type
S24530
UPC
697285245303
