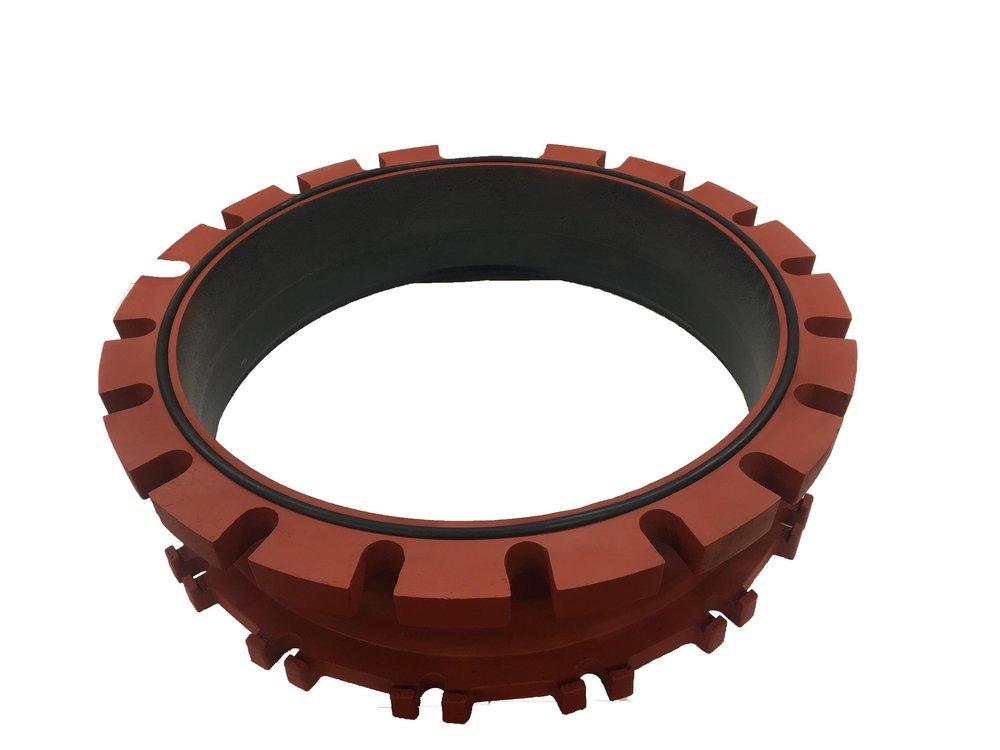

6 in. Mechanical Joint Ductile Iron PVC Pipe and Valves Restrained Flange Adapter
SIGMA
6 in. Mechanical Joint Ductile Iron PVC Pipe and Valves Restrained Flange Adapter
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
SIGMA
6 in. Mechanical Joint Ductile Iron PVC Pipe and Valves Restrained Flange Adapter
SFA6
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Accommodates pipe misalignment
- Acts as a dismantling joint for service and maintenance requirements
- Provides a pressure rating equal to the pipe with a 2:1 factor of safety
- No special tools required for installation or removal
- Allows slight variations in field-cut pipe
- Slotted bolt hold design for ease of installation
- Accommodate dia PVC pipe
- O-ring on flange face for better compression and sealing
Documents
Dimensions & Measurements
Diameter - Inside 1
7 in
End Connection 1
Mechanical Joint
End Connection 2
Flanged
End Connections
Mechanical Joint x Flanged
Fits Pipe Size
6 in
Length
5-4/57 in
Pressure Class
350#
Weight
19.5 lb
Width
11 in
Characteristics & Features
Coating
Red Primer
Material
Ductile Iron, Rubber
Material Type
SBR
Warranty & Product Information
ANSI
ANSI A21.10, ANSI A21.11, ANSI A21.15, ANSI A21.53, ANSI C110, ANSI C111, ANSI C115, ANSI C153
Application
Ductile Iron Pipe, PVC Pipe, Flanges, Valves
ASTM
ASTM A-536 Grade 65-45-12
AWWA
AWWA A-21.10, AWWA A-21.11, AWWA A-21.15, AWWA A-21.53, AWWA C-110, AWWA C-111, AWWA C-115, AWWA C-153
FM Approved
Yes
NSF
NSF 61
Product Type
Flange Adapter
UL Listed
Yes
UPC
829805218379
