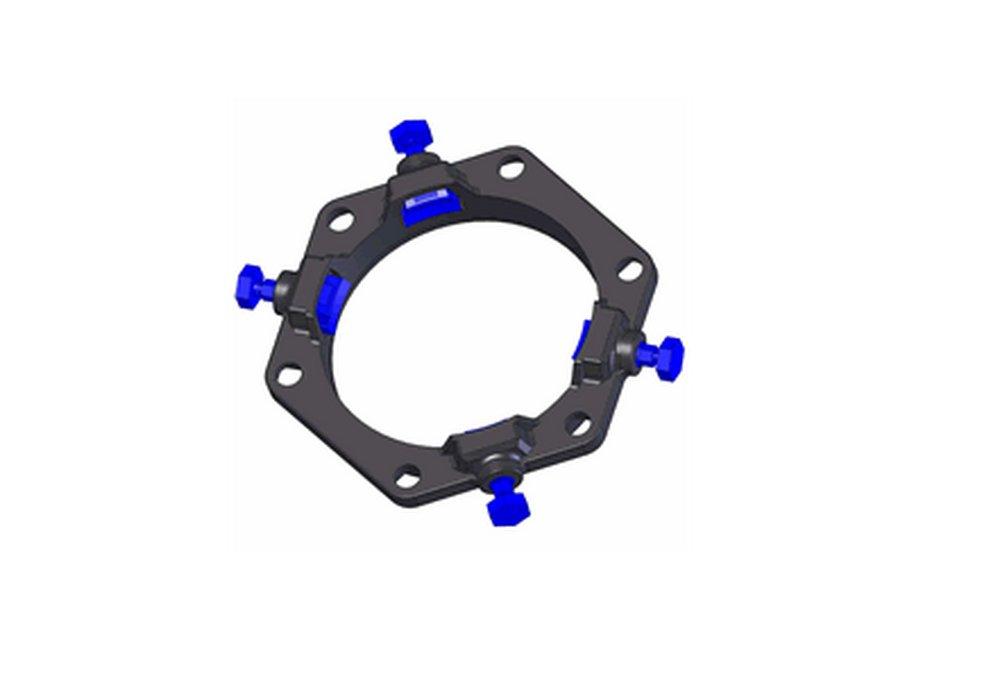

12 in. Joint Restraint for PVC Pipe

SIGMA

ONE-LOK™ Series SLCS 12 in. Joint Restraint for PVC Pipe

  • Fast #
  • Part #SSLCEP12TT
  • Item #7048521
  • Manufacturer Part #SLCEP12TT
3.4 out of 5 Customer Rating
Brand image
SIGMA Mechanical Joint and PVC Pipe Ductile Iron and Plastic Wedge Restraint
SIGMA Mechanical Joint and PVC Pipe Ductile Iron and Plastic Wedge Restraint
SIGMA Mechanical Joint and PVC Pipe Ductile Iron and Plastic Wedge Restraint
SIGMA Mechanical Joint and PVC Pipe Ductile Iron and Plastic Wedge Restraint
SIGMA

ONE-LOK™ Series SLCS 12 in. Joint Restraint for PVC Pipe

  • Fast #
  • Part #SSLCEP12TT
  • Item #7048521
  • Manufacturer Part #SLCEP12TT
3.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • The SIGMA ONE-LOK™ series SLCE is a mechanical joint restraining gland that implements a series of individually activated wedges into the mechanical joint follower gland
  • When the wedge segment is engaged by the actuating bolt, the primary contact edges of each wedge segment lock onto the pipe wall
  • This action causes the primary contact edges to grip the pipe and effectively restrain all classifications of both AWWA C900 and ASTM D2241 IPS size PVC pipe
  • ONE-LOK™ SLCE’s precision contoured wedges provide proper contact and support of the PVC pipe wall
  • Each wedge is manufactured with an elongated contour that evenly matches the outside circumference of each nominal diameter of PVC pipe
  • Unlike other actuating bolts, the ONE-LOK™ SLCE is manufactured with a proprietary quality control system that ensures the breakaway tops will activate at the correct torque
  • ONE-LOK™ SLCE’s wedge actuating bolt provides the installer with two visual torque indicators
  • The breakaway top and secondary shoulder stop ensure proper engagement of the wedge segment at the time of installation
  • The breakaway top is sized to match the same dimensions of the bolts and nuts used to assemble the mechanical joint fitting and follower gland, eliminating the need for special installation tools
  • Requires Certification
Dimensions & Measurements
Fits Pipe Size
12 in
Pressure Class
235#
Weight
26.96 lb
Characteristics & Features
Coating
Red Alkyd Paint
Collection
ONE-LOK™ Series SLCS
Material
Ductile Iron, Plastic
Material Type
Fluoropolymer
Warranty & Product Information
ANSI
ANSI A21.11, ANSI A21.53, ANSI C111, ANSI C153
Application
Mechanical Joint, PVC Pipe
ASTM
ASTM A-536 Grade 65-45-12, ASTM D-2241, ASTM F-1674
AWWA
AWWA A-21.11, AWWA A-21.53, AWWA C-111, AWWA C-153, AWWA C-900, AWWA C-909
FM Approved
Yes
NSF Certified
No
Product Type
Wedge Restraint
UL Listed
Yes
UPC
829805414368
