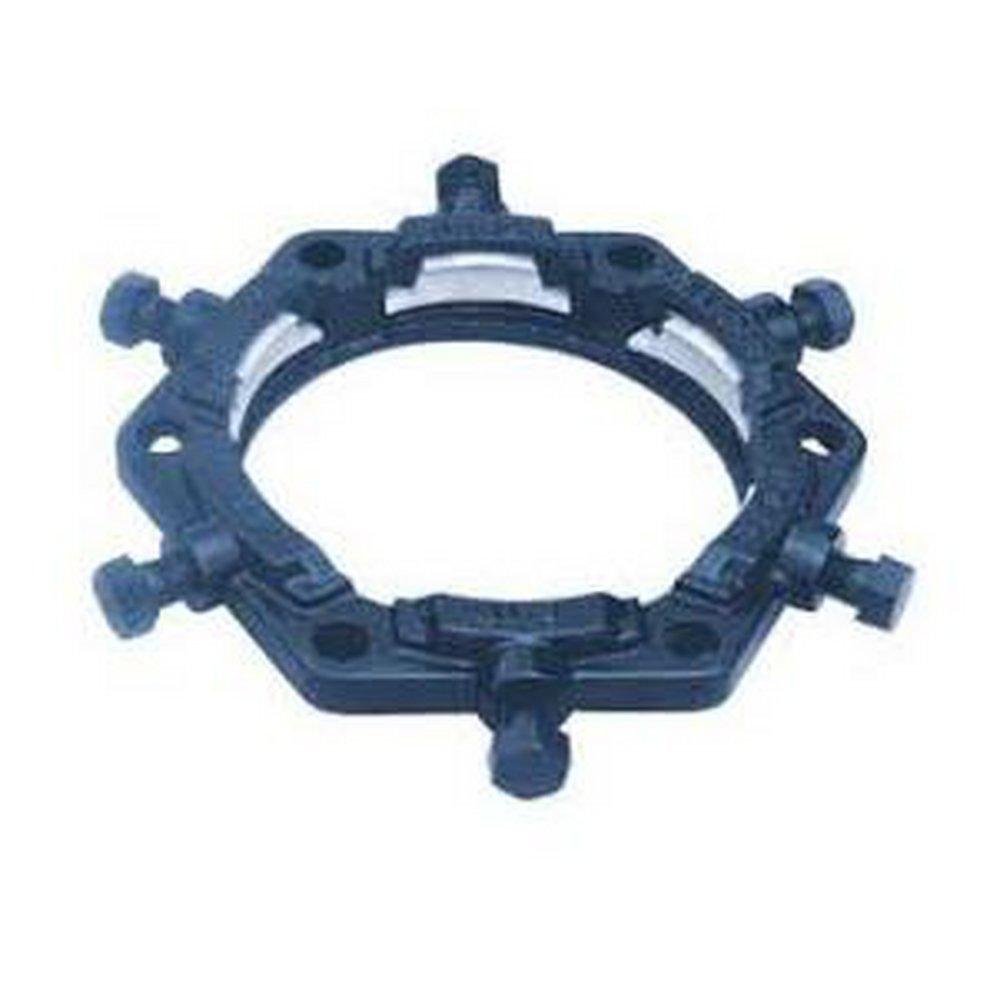

4 in. Mechanical Joint Wedge Restraint
SIGMA
ONE-LOK™ Series SLCS 4 in. Mechanical Joint Wedge Restraint
Package Quantity Info:
Each: 1 Inner Pack: 1 Bundle: 5Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
SIGMA
ONE-LOK™ Series SLCS
4 in. Mechanical Joint Wedge Restraint
SLCS4
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Eliminates precise field-cuts of pipe for ease of installation
- Adapter body length provides improved future service, maintenance, or replacement
- Compression O-ring eliminates the need for other flange gaskets
- Allows the use of wedge-style and serration-lock devices
- Drop-in slotted bolt areas for mechanical joint and flanged ends
- Mechanical Joint restraining gland that implements a series of individually activated wedges into the mechanical joint follower gland
- Wedge actuating bolt provides the installer with a visual torque indicator when the breakaway top disengages at the time of installation
- The breakaway top and secondary shoulder stop ensure proper engagement of the wedge segment at the time of installation
- ONE-LOK™ SLCE’s wedge actuating bolt provides the installer with two visual torque indicators
- The breakaway top is sized to match the same dimensions of the bolts and nuts used to assemble the mechanical joint fitting and follower gland, eliminating the need for special installation tools
Dimensions & Measurements
Fits Pipe Size
4 in
Pressure Class
235#
Weight
6.78 lb
Characteristics & Features
Coating
Red Alkyd Paint
Collection
ONE-LOK™ Series SLCS
Material
Ductile Iron, Low Alloy Steel
Warranty & Product Information
ANSI
ANSI A21.11, ANSI A21.53, ANSI C111, ANSI C153
Application
Mechanical Joint, PVC Pipe
ASTM
ASTM A-536 Grade 65-45-12, ASTM D-2241, ASTM F-1674
AWWA
AWWA A-21.11, AWWA A-21.53, AWWA C-111, AWWA C-153, AWWA C-900, AWWA C-909
FM Approved
Yes
Product Type
Wedge Restraint
UL Listed
Yes
UPC
829805417963
