14 in. Bell Restraint for C900 PVC Pipe

SIGMA

PV-LOK™ Series PWP 14 in. Bell Restraint for C900 PVC Pipe

  • Fast #
  • Part #SPWPC14
  • Item #1775576
  • Manufacturer Part #PWP-C14
5 out of 5 Customer Rating
Brand image

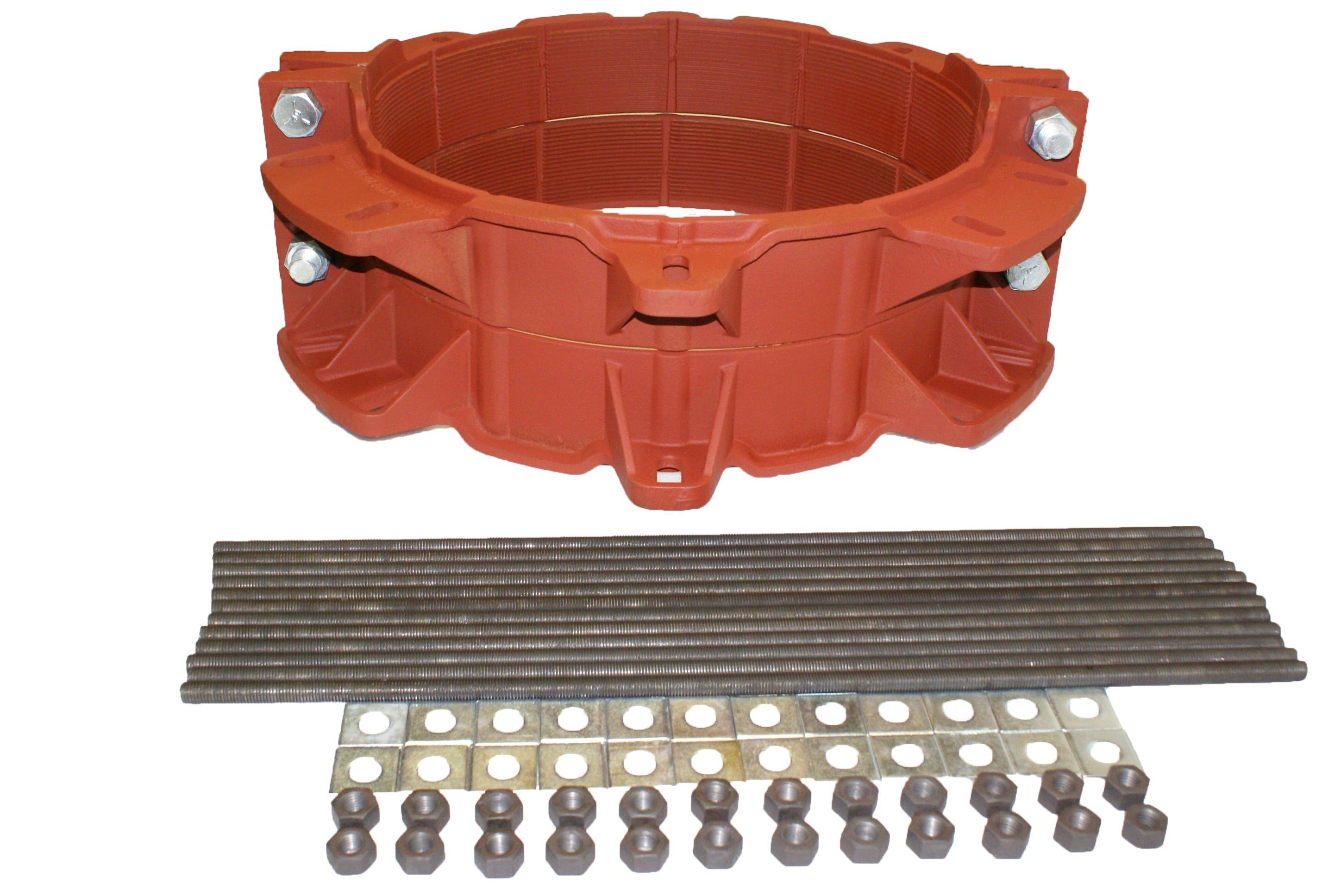

SIGMA Bell End Bell Joint Restraint PVC Pipe Ductile Iron and Steel Restraint
SIGMA Bell End Bell Joint Restraint PVC Pipe Ductile Iron and Steel Restraint
SIGMA

PV-LOK™ Series PWP 14 in. Bell Restraint for C900 PVC Pipe

  • Fast #
  • Part #SPWPC14
  • Item #1775576
  • Manufacturer Part #PWP-C14
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 10
Unavailable
Looking for compatible parts?

Product Details

Product Description
  • Restrainer incorporates a series of machined serrations that effectively engage PVC pipe walls, to provide positive joint security and full support of the pipe
  • Directional gripping action maximizes restraint during increased line pressures such as those resulting from surges and water hammer
  • It incorporates two PV-LOK™ clamping rings and a series of restraining rods & nuts that tie the two rings together and secure the PVC bell and spigot pipe joint
  • Anti-rotational side clamping bolts for ease of installation
  • Carries a water working pressure rating equal to the pipe upon which it is installed with a 2:1 factor of safety
  • Restrainer rings provided with restraining rods, nuts and plate washers
  • The PV-LOK™ series PWP restrainer incorporates a series of machined serrations that effectively engage PVC pipe walls, to provide positive joint security and full support of the pipe
  • The directional gripping action maximizes restraint during increased line pressures such as those resulting from surges and water hammer
  • The series PWP incorporates two PV-LOK™ clamping rings and a series of restraining rods & nuts that tie the two rings together and secure the PVC bell and spigot pipe joint
  • Requires Certification

Documents

SPECIFICATION
Dimensions & Measurements
Diameter - Inside 1
13-11/25 in
End Connection 1
Bell End
End Connections
Bell End
Fits Pipe Size
14 in
Length
22 in
Pressure Class
305#
Weight
101.61 lb
Characteristics & Features
Coating
Red Alkyd Paint, Zinc Plated
Collection
PV-LOK™ Series PWP
Material
Ductile Iron, Steel
Warranty & Product Information
ANSI
ANSI C900, ANSI C111, ANSI A21.11
Application
PVC Pipe
ASTM
ASTM A-449, ASTM A-536 Grade 65-45-12
AWWA
AWWA A-21.11, AWWA C-111, AWWA C-900, AWWA C-905
FM Approved
Yes
Origin
Global
Product Type
Bell Joint Restraint
UL Listed
No
UPC
829805220914
