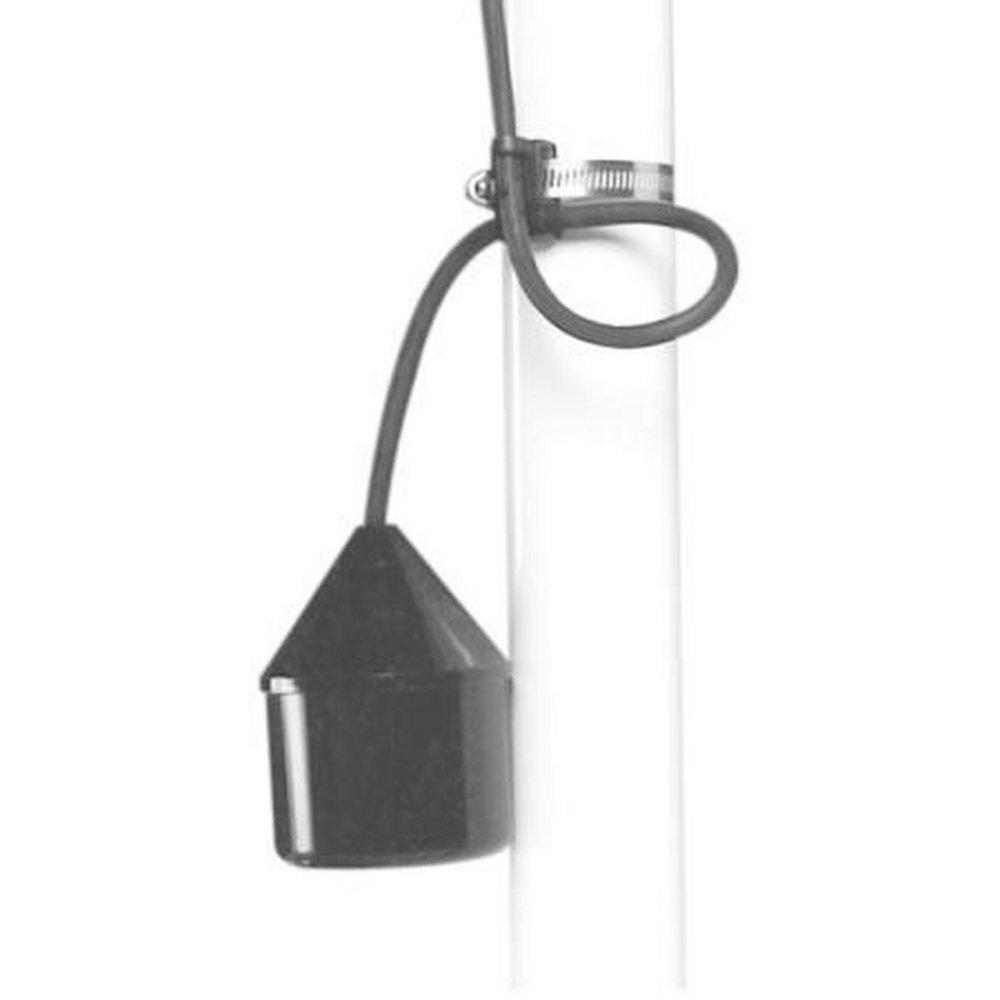

230V Sensor Float Control Switch with 20 ft. Cable
You last purchased this on
SJE Rhombus
230V Sensor Float Control Switch with 20 ft. Cable
Purchase history
SJE Rhombus
230V Sensor Float Control Switch with 20 ft. Cable
1002089
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
- Suitable for use with intrinsically safe circuits
- impact resistant, non-corrosive, PVC housing float for use in liquids up to 140°F
- Mercury tilt float switch, hermetically sealed in a steel capsule and epoxy sealed in the float housing
- For use as a pilot duty, narrow angle sensing device to monitor liquid levels in sewage and water systems
- In normally open, high level applications, switch turns on when float tips above horizontal position signaling a high level and turns off when float drops below horizontal position
- In normally closed, low level applications, switch turns on when float drops below horizontal position signaling a low level and turns off when float tips above horizontal position
Documents
Specifications
- AMP:
- 5
- CSA Certified:
- Yes
- Cord Length:
- 20 ft
- Diameter:
- 3-19/50 in
- Length:
- 4-11/20 in
- Material:
- Plastic
- Material Type:
- PVC
- Maximum Temperature:
- 140
- NSF Certified:
- No
- Power Source:
- Electric
- Pressure - Maximum:
- 13 psi
- UL Listed:
- Yes
- Volts:
- 230V
