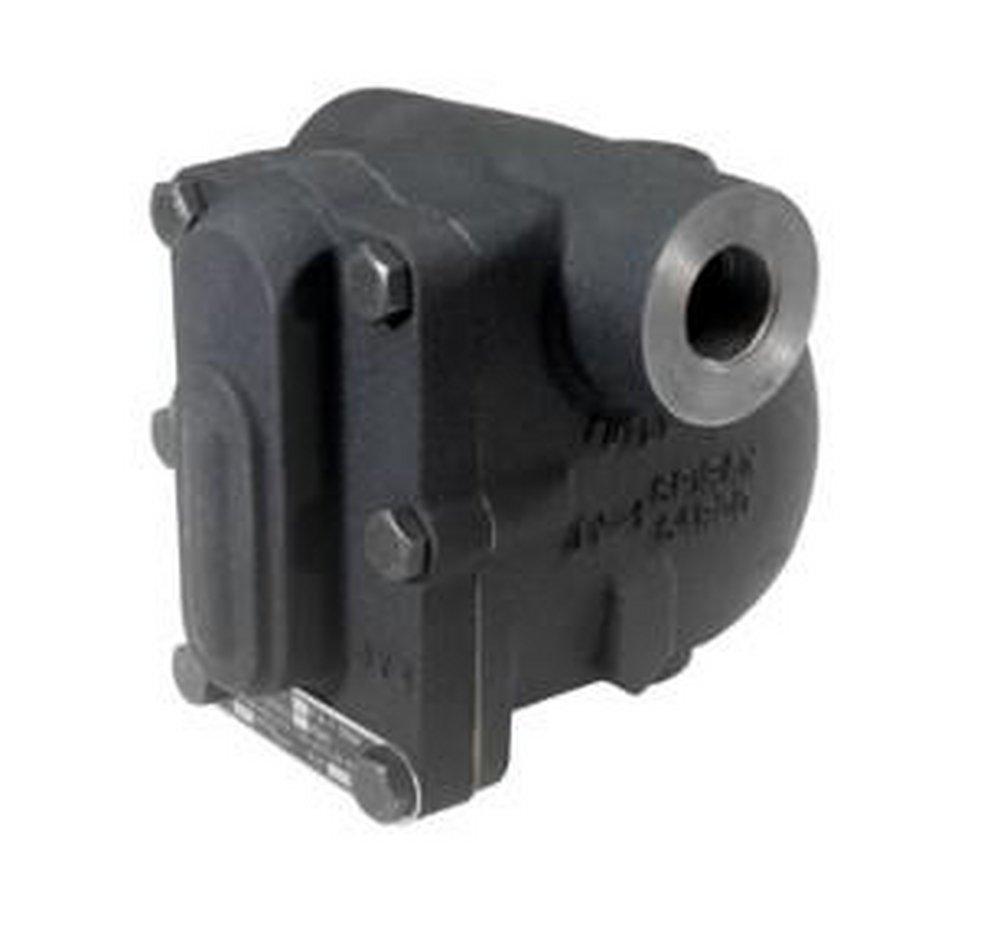

3/4" NPT FTI-15 Float & Thermostatic Steam Trap, Cast Iron, Straight through Piping
Spirax Sarco
FTI-15 3/4" NPT FTI-15 Float & Thermostatic Steam Trap, Cast Iron, Straight through Piping
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 250000
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Spirax Sarco
FTI-15
3/4" NPT FTI-15 Float & Thermostatic Steam Trap, Cast Iron, Straight through Piping
66669
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- The Spirax Sarco FTI contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent.
- The in-line piping connections simplify installation.
- Typical applications include air heating coils, heat exchangers, steam main drip stations
- Replacement of less efficient inverted bucket traps on unit heating equipment
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Pressure - Maximum
15 psig
Valve Size
3/4 in
Characteristics & Features
Collection
FTI-15
Material
Cast Iron
Valve Body Material
Cast Iron
Valve Operator
Float
Valve Seat Material
Stainless Steel
Electrical & Operational Information
Maximum Temperature
450
Warranty & Product Information
Application
Commercial, Industrial
ASTM
ASTM A-126 Class B
TIS
TIS TI-2-321-US
