8 in. Mechanical Joint Wedge Restraint For Ductile Iron Pipe
Star Pipe Products

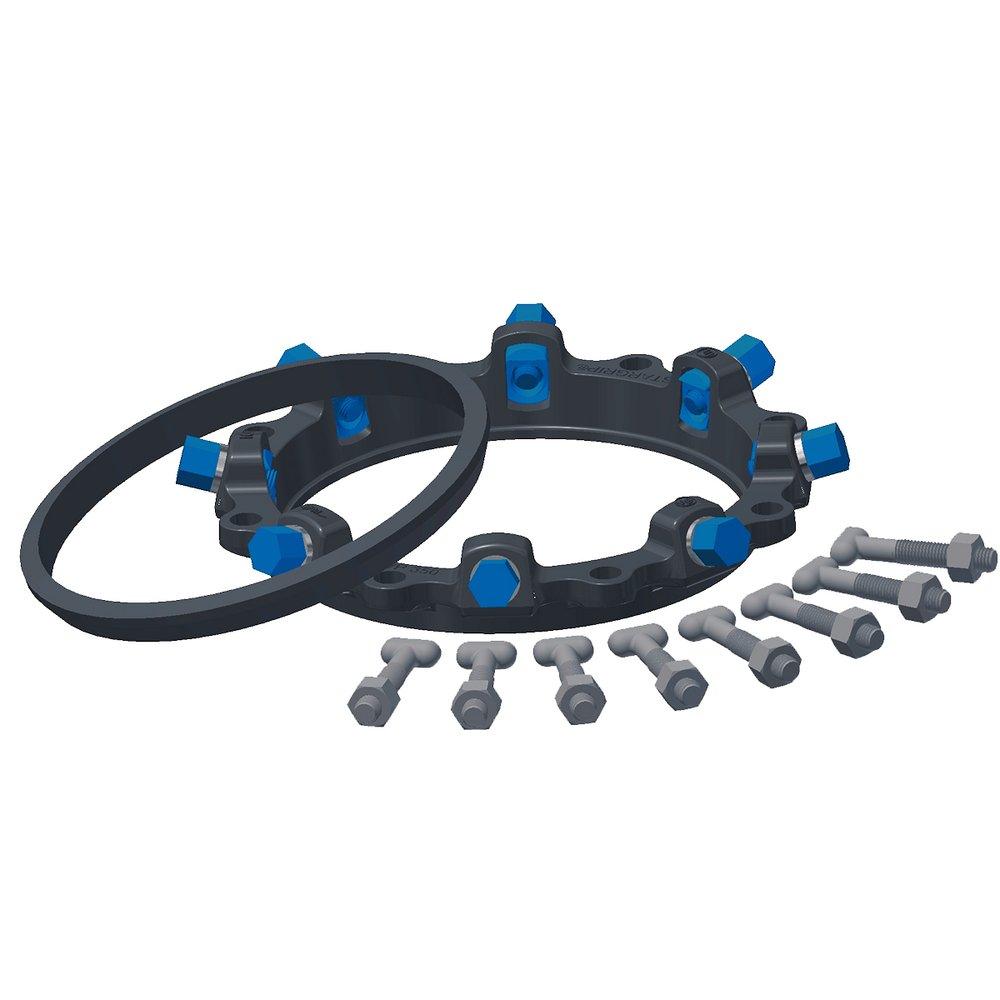

Stargrip® 3000 Series 8 in. Mechanical Joint Wedge Restraint For Ductile Iron Pipe
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 99Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Star Pipe Products
Stargrip® 3000 Series
8 in. Mechanical Joint Wedge Restraint For Ductile Iron Pipe
SGDPPK08N
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- The StarGrip ® mechanical joint restraint system is a unique product with a proven design that provides an exceptional restraining system for mechanical joint fitting
- No special tools required for installation
- StarGrip ® eliminates tie rods and thrust blocks
- The wedge assembly is designed with a break-off torque control nut that will only break off in one direction, ensuring proper installation
- Minimum safety factor of 2:1
- The wedges are heat treated to a minimum of 370 BHN
- The wedge assembly is designed to fit specific pipe sizes and is field repairable
- High strength low alloy steel t-bolts and twisted off nut
Documents
Dimensions & Measurements
End Connection 1
Mechanical Joint
End Connections
Mechanical Joint
Fits Pipe Size
8 in
Pressure Class
350#
Characteristics & Features
Coating
Thermally Cured Fluoropolymer Epoxy, Alkyd Enamel
Collection
Stargrip® 3000 Series
Material
Ductile Iron
Warranty & Product Information
ANSI
ANSI A21.11, ANSI C111
Application
Ductile Iron Pipe
ASTM
ASTM A-536 Grade 65-45-12
AWWA
AWWA A-21.11, AWWA C-111
FM Approved
Yes
NSF Certified
No
Origin
Global
Product Type
Wedge Restraint
UL Listed
Yes
UPC
829351478654
