3/8 in. Compression Mixing Valve

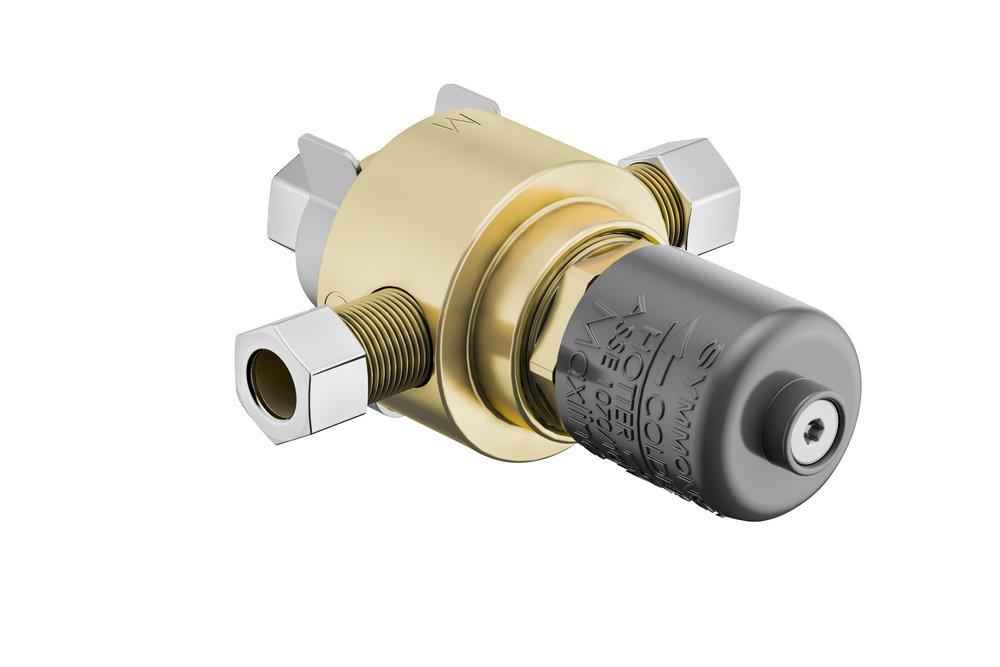

Maxline® 3/8 in. Compression Mixing Valve
Frequently Purchased Together
Product Details
- 3/8 in. compression tee fitting to allow water bypass for hot and cold supply faucet
- Vandal resistant
- Maxline thermostatic mixing valve
- Temp. control range 59 to 113° F
- Min. flow rate .5 gpm
-
Lead Law Compliant
Specifications
- ADA Compliant:
- No
- ANSI:
- ANSI 372, ANSI 61
- ASME:
- ASME A112.18.1
- ASSE Standards:
- ASSE 1017, ASSE 1070
- Above Floor Rough:
- No
- Acid Base:
- No
- Adjustable:
- No
- Antimicrobial:
- No
- Application:
- Commercial
- Automatic Shut-Off:
- No
- BAA Compliant:
- Yes
- Built-in Stops:
- Yes
- CARB OTC LEED Compliant:
- No
- CE Approved:
- No
- CSA Certified:
- CSA B125.1, CSA B125.3
- Cartridge Type:
- Thermostatic
- Chemical Resistant:
- No
- Collection:
- Maxline®
- Color Finish Category:
- Brass Tones
- Color Finish Name:
- Rough Brass
- Deck Plate Included:
- No
- Depth:
- 4-3/8 in
- Dishwasher Safe:
- No
- Dispenser Only:
- No
- Drain Included:
- No
- End Connection 1:
- Compression
- End Connection 2:
- Compression
- End Connection 3:
- Compression
- End Connections:
- Compression
- FM Approved:
- No
- Fire Rated:
- No
- Flow Rate:
- 0.25 gpm
- GSA Approved:
- No
- Grab Bar Included:
- No
- Handle Included:
- No
- Handle Length (in):
- 1-2/5 in
- Handle Material:
- Plastic
- Handle Type:
- Knob
- Height:
- 4-1/8 in
- IAPMO Listed -:
- No
- ISO:
- No
- Indoor Outdoor:
- Indoor
- Installation Type:
- Undercounter
- Insulated:
- No
- LED Light:
- No
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 1-3/4 in
- Lights Included:
- No
- MA Approved -:
- Yes
- Material:
- Brass, Bronze, Stainless Steel, Plastic
- Material Type:
- 303 SS
- Maximum Temperature:
- 113
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Number of Handles:
- No Handle
- Origin:
- Domestic
- Overall Box Size:
- 8-1/2 in x 8-3/8 in x 5-3/8 in
- Overflow Included:
- No
- Pause Control:
- No
- Plug Included:
- No
- Pressure - High:
- 100
- Pressure - Low:
- 25
- Pressure - Maximum:
- 125 psi
- Pressure - Minimum:
- 20 psi
- Reverse Osmosis Compatible:
- No
- Rigid:
- No
- Scald Guard:
- Yes
- Seat Included:
- No
- Temperature Range:
- 59 to 114 Deg F (15 to 45 Deg C)
- Test Cap Included:
- No
- Trim Only:
- No
- UL Listed:
- No
- Vacuum Breaker:
- No
- Valve Operator:
- Knob Handle
- Valve Size:
- 3/8 in
- Valve Type:
- Thermostat Mixing Valve
- Vandal Resistant:
- Yes
- WIFI Enabled:
- No
- WaterSense Labeled:
- No
- Weight:
- 1.9 lb
- Width:
- 1-9/10 in
- With Horn:
- No
- cUPC Certified:
- No
