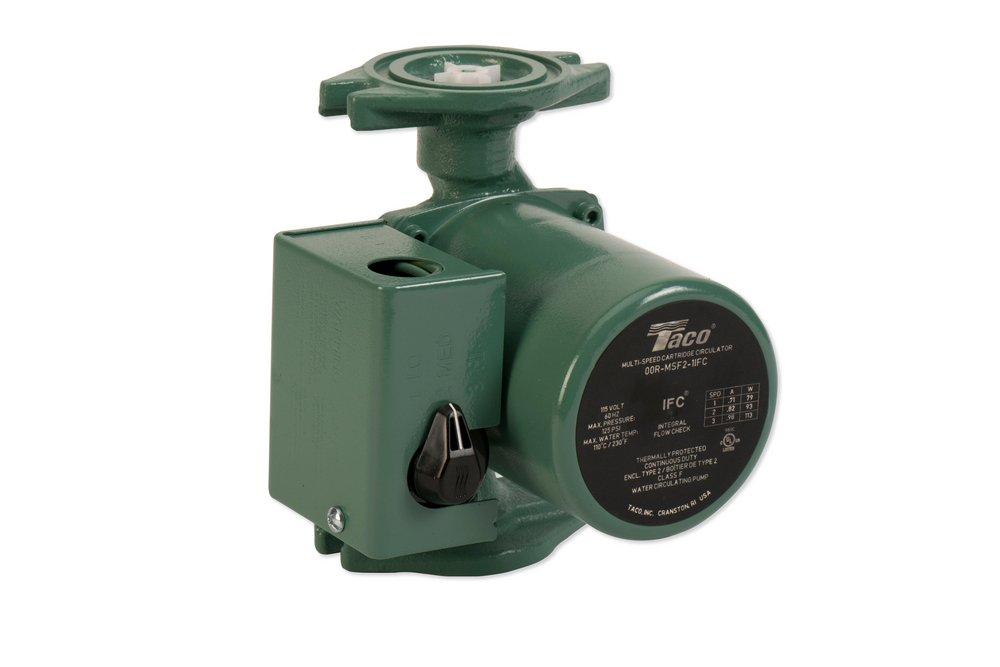

1/20 HP 115V Cast Iron Circulator Pump
Taco
1/20 HP 115V Cast Iron Circulator Pump
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Taco
1/20 HP 115V Cast Iron Circulator Pump
0015-MSF3-1IFC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Integral Flow Check (IFC) prevents gravity flow
- Eliminates separate in-line flow check - reduces installed cost
- Improved flow performance vs. in-line check valves
- Unique replaceable cartridge - field serviceable
- Self-lubricating, no mechanical seal
- Quiet, efficient operation
- Direct drive - low power consumption
- Unmatched reliability - maintenance free
- Standard high capacity output - compact design
- Cast Iron or Stainless Steel construction available
Dimensions & Measurements
Flow at 10 feet of Head
14 gpm
Flow at 5 feet of Head
16 gpm
Flow Rate
18 gpm
Height
6-1/2 in
Length
3-7/16 in
Maximum Feet of Head
17
Pressure - Maximum
125 psi
Width
5-3/8 in
Characteristics & Features
Blower Type
3 Speed
Connection Type
Flanged
Flow of 15 feet of Head
10 gpm
Hertz
60
Impeller
Composite
Material
Stainless Steel
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pump Body Material
Cast Iron
Pump Motor Type
PSC
Pump Mounting
Horizontal
Pump Phase
1
Pump Stage
1
Electrical & Operational Information
AMP
1.3
Horsepower
1/25 hp
Maximum Temperature
230
Minimum Temperature
40
Phase
Single Phase
Power Source
Hardwired
RPM
3250
Volts
115V
Watts
37 W
Warranty & Product Information
ANSI
ANSI 372
ASTM
No
NSF
NSF 372
NSF Certified
Yes
Origin
Domestic
Product Type
Circulator Pump
Pump Application
Circulator Pump
UL Listed
Yes
UPC
687752044744
