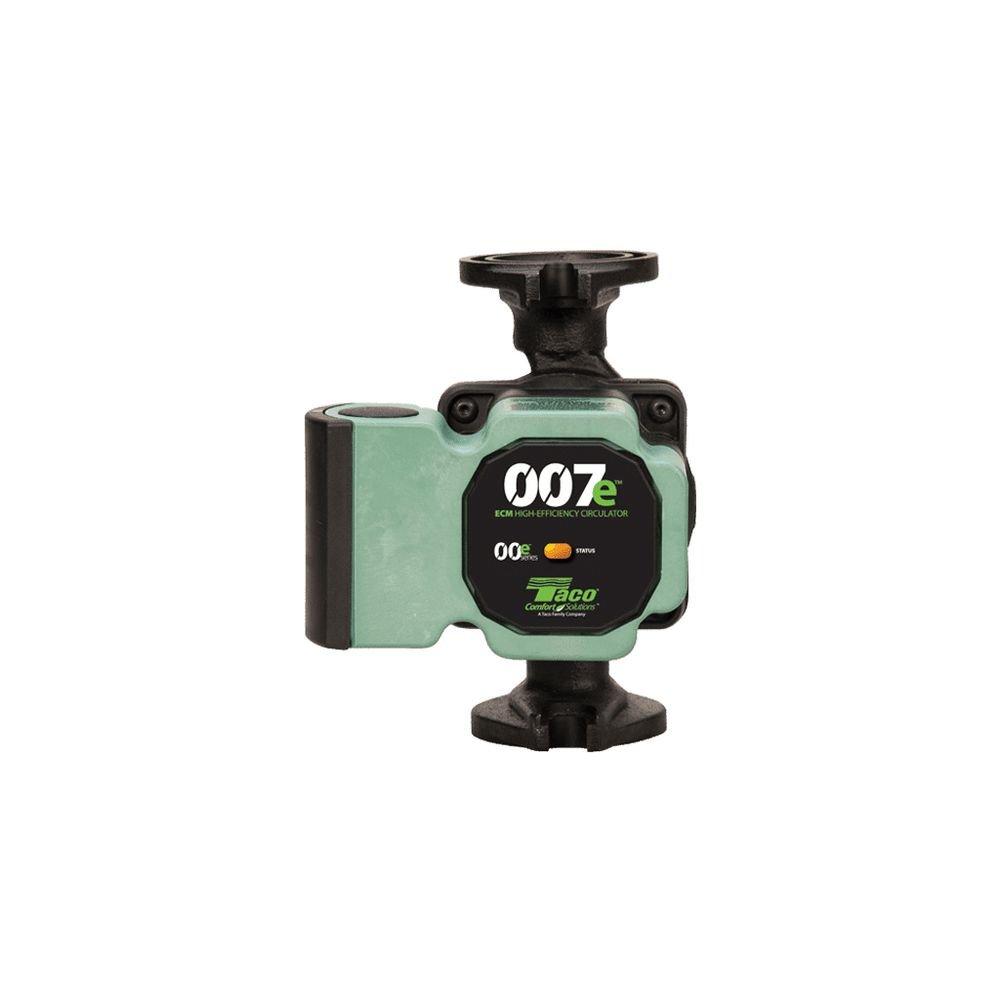

1/25 HP 120V Cast Iron Circulator Pump
Taco
1/25 HP 120V Cast Iron Circulator Pump
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Taco
1/25 HP 120V Cast Iron Circulator Pump
VB1016-HY2-FC2A00
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- High-efficiency ECM technology uses up to 85% less electricity
- SureStart® automatic unblocking and air purging
- BIO Barrier® protects pump from system contaminants
- Multi-color LED for operating mode and diagnostics
- Whisper quiet operation
- Double insulated - no ground wire required
- Integral Flow Check (IFC®) included
- Nut-capture feature for easier installation
- Industry leading customer service & technical support
- 3-year warranty
Dimensions & Measurements
Depth
6 in
Flow at 10 feet of Head
8.5 gpm
Flow at 5 feet of Head
12 gpm
Flow Rate
16 gpm
Height
6-3/8 in
Length
6 in
Maximum Feet of Head
10
Width
5 in
Characteristics & Features
Connection Type
Flanged
Hertz
60
Impeller
Composite
Material
Cast Iron
Proposition 65
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Pump Body Material
Cast Iron
Pump Motor Type
ECM
Pump Mounting
Horizontal
Pump Phase
1
Pump Stage
1
Electrical & Operational Information
AMP
0.54
Horsepower
1/25 hp
Maximum Temperature
230
Minimum Temperature
36
Phase
Single Phase
Power Source
Hardwired
RPM
4830
Volts
115V
Watts
44 W
Warranty & Product Information
ASTM
No
Energy Star Compliant
No
IAPMO Listed
No
NSF Certified
No
Origin
Domestic
Product Type
Circulator Pump
Pump Application
Circulator Pump
UL Listed
Yes
UPC
190145175647
