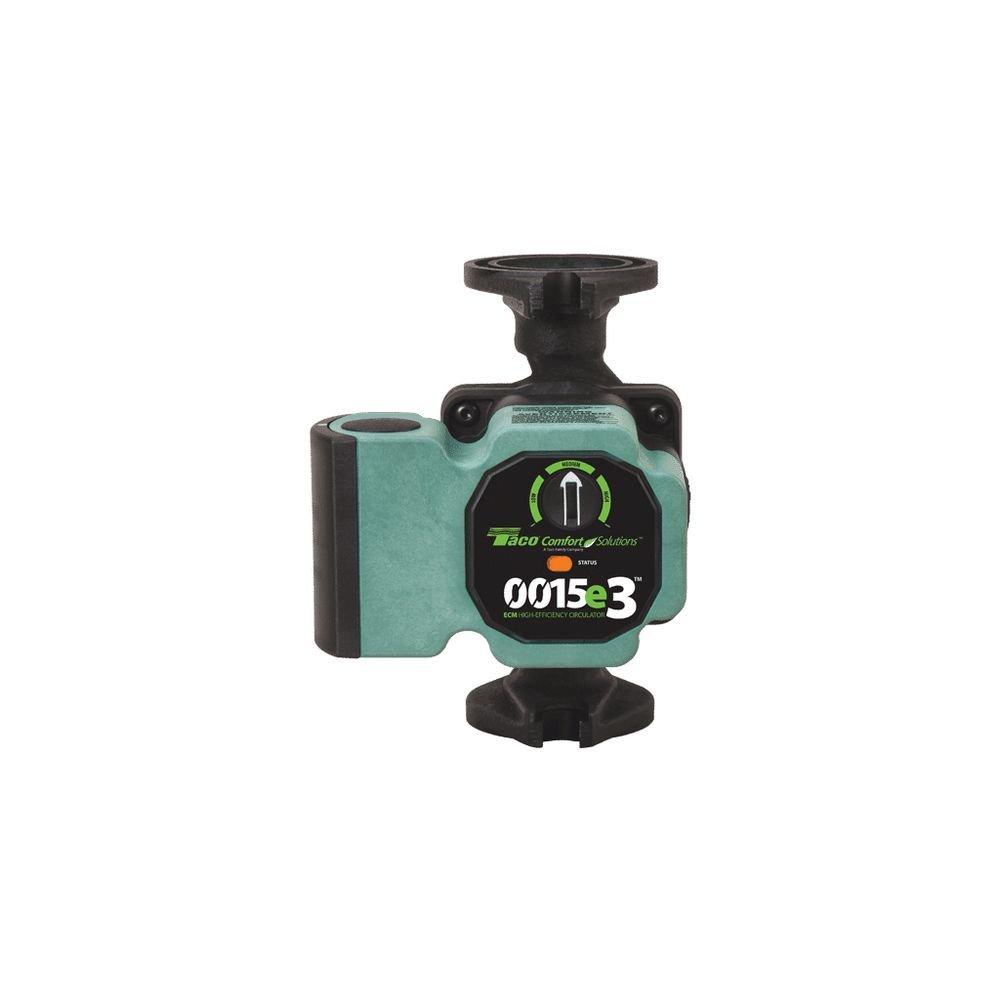

1/8 HP 120V Cast Iron Circulator Pump
Taco
1/8 HP 120V Cast Iron Circulator Pump
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 120Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Taco
1/8 HP 120V Cast Iron Circulator Pump
VM1816-HY2-4C2A00
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- High-efficiency ECM technology uses up to 85% less electricity
- SureStart® automatic unblocking and air purging
- BIO Barrier® protects pump from system contaminants
- Multi-color LED for operating mode and diagnostics
- Whisper quiet operation
- Double insulated - no ground wire required
- Integral Flow Check (IFC®) included
- Nut-capture feature for easier installation
- Industry leading customer service & technical support
- 3-year warranty
Dimensions & Measurements
Depth
6 in
Flow at 5 feet of Head
14 gpm
Flow Rate
16 gpm
Height
6-3/8 in
Length
6 in
Maximum Feet of Head
18
Pressure - Maximum
125 psi
Width
5 in
Characteristics & Features
Connection Type
Flanged
Hertz
60
Impeller
Composite
Material
Cast Iron
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pump Body Material
Cast Iron
Pump Motor Type
ECM
Pump Mounting
Horizontal
Pump Phase
1
Pump Stage
1
Electrical & Operational Information
AMP
0.54
Horsepower
1/25 hp
Maximum Temperature
230
Minimum Temperature
36
Phase
Single Phase
Power Source
Hardwired
RPM
4830
Volts
115V
Watts
44 W
Warranty & Product Information
ASTM
No
Energy Star Compliant
No
IAPMO Listed
No
NSF Certified
No
Product Type
Circulator Pump
Pump Application
Circulator Pump
UL Listed
Yes
UPC
190145007870
