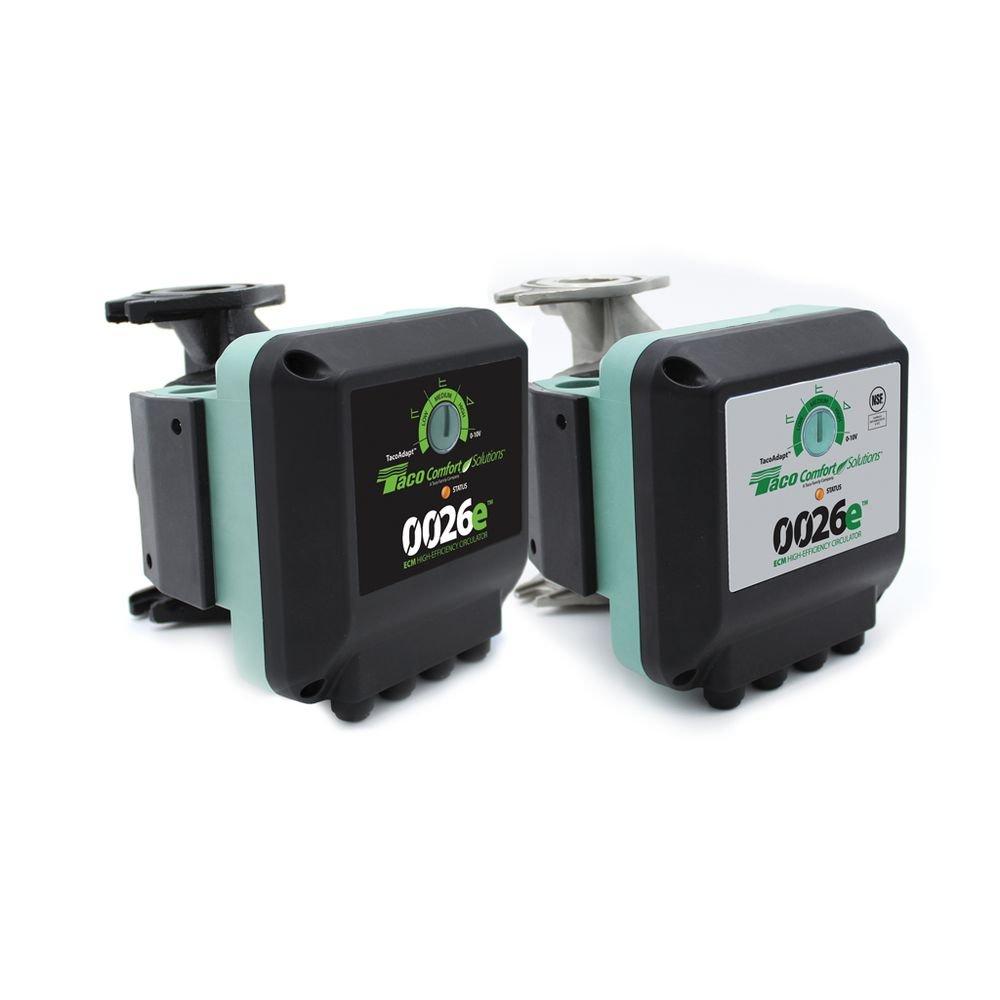

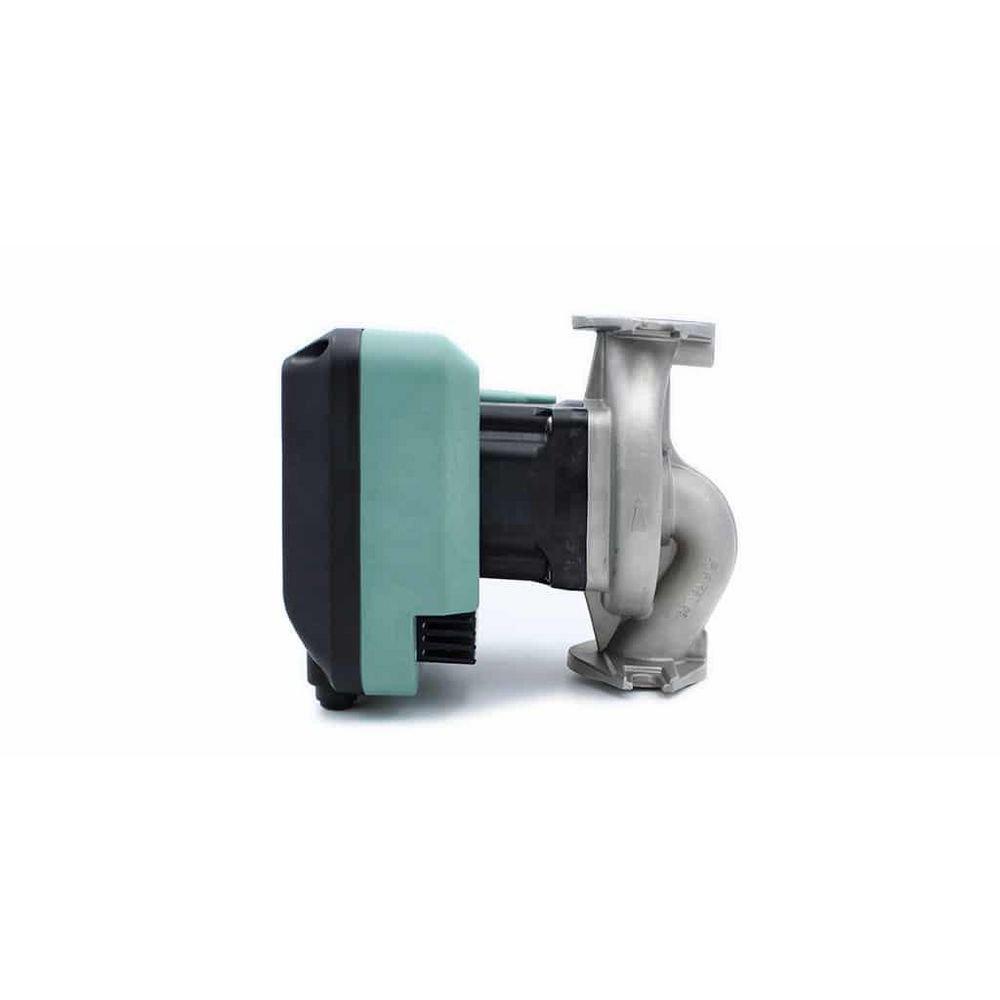

115/208/230V Cast Iron Circulator Pump
Taco
115/208/230V Cast Iron Circulator Pump
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Taco
115/208/230V Cast Iron Circulator Pump
VM2644-HD1-RC2A00
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- High-efficiency ECM technology uses up to 85% less electricity
- SureStart® automatic unblocking and air purging
- BIO Barrier® protects pump from system contaminants
- Multi-color LED for operating mode and diagnostics
- 0-10V DC or PWM external input for variable speed control
- Dual electrical knockouts with removable terminal strip
- Rotatable control cover for any pump orientation
- TacoAdapt™ self-adjusting proportional pressure
- Industry leading customer service & technical support
- 3-year warranty
Dimensions & Measurements
Flow at 5 feet of Head
42 gpm
Flow Rate
44 gpm
Height
7 in
Length
8 in
Maximum Feet of Head
26
Pressure - Maximum
150 psi
Weight
10.5 lb
Width
6-1/4 in
Characteristics & Features
Connection Type
Flanged
Hertz
60
Impeller
Composite
Material
Cast Iron
Pump Body Material
Cast Iron
Pump Motor Type
ECM
Pump Mounting
Horizontal
Pump Phase
1
Pump Stage
1
Electrical & Operational Information
AMP
1
Horsepower
1/6 hp
Maximum Temperature
230
Minimum Temperature
14
Phase
Single Phase
Power Source
Hardwired
RPM
3800
Volts
115-230V
Watts
120 W
Warranty & Product Information
ASTM
No
NSF Certified
No
Product Type
Circulator Pump
Pump Application
Circulator Pump
UL Listed
Yes
UPC
195445162434
