3/4 in. Bronze Reducing Valve
Taco

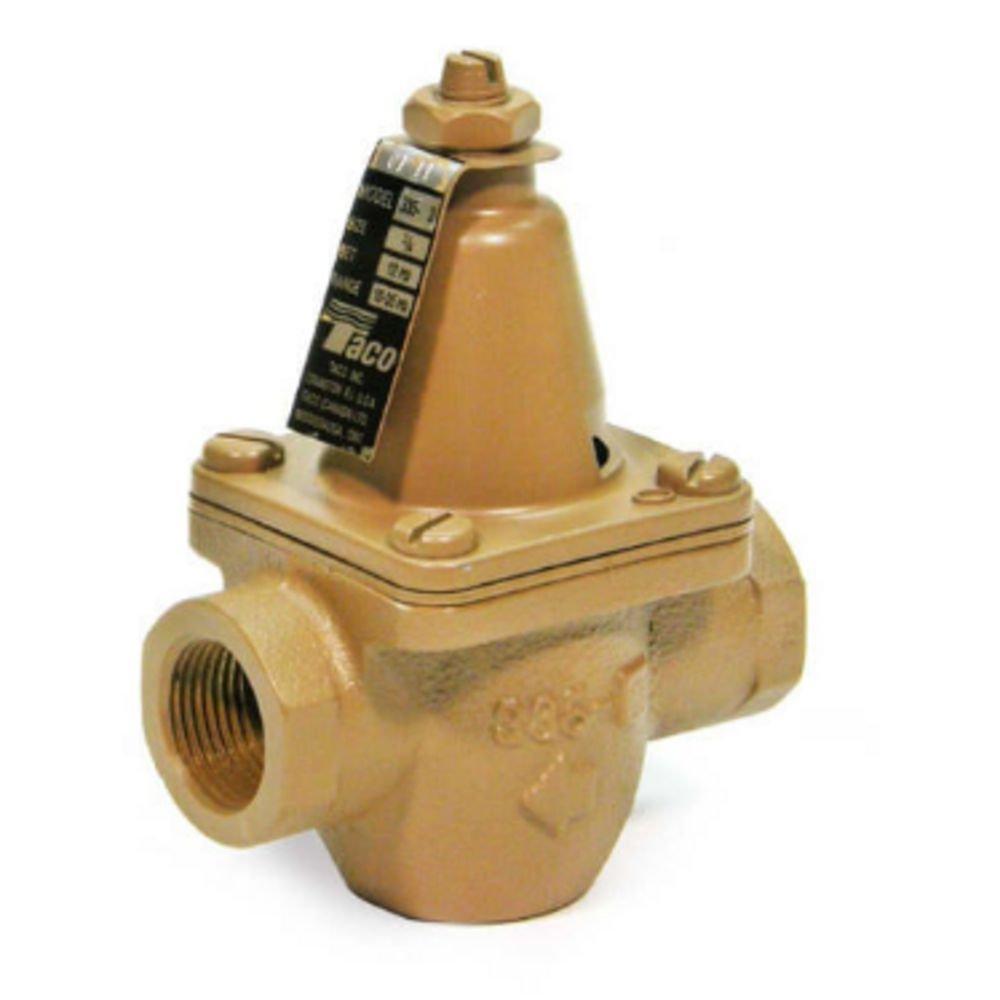

3/4 in. Bronze Reducing Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 12 Pallet: 1200Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Taco
3/4 in. Bronze Reducing Valve
335-3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Automatically feeds water to the hydronic system whenever system pressure drops below the valve setting.
- Built-in check prevents the system from emptying if incoming supply pressure fails.
- Fast fill rate with an exclusive fast fill lever lock for quick system filling.
- Pressure setting adjustment is separated from the fast fill lever for easy, fast adjustment.
- Rated for a maximum supply pressure of 100 PSI and maximum fluid temperature of 212°F.
- Adjustable pressure setting range of 10 to 25 PSI with a factory preset of 12 PSI.
- Certified to ASSE 1012-2009 and CAN/CSA-B64.3-11 for reliable backflow protection.
- Durable brass body construction for long service life in hydronic heating applications.
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Fitting Size 1
3/4 in
Height
3-3/4 in
Length
3-3/4 in
Pressure - Maximum
100 psi
Valve Size
3/4 in
Characteristics & Features
Material
Brass
Proposition 65
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Valve Body Material
Brass
Valve Body Style
Inline
Valve Disc Material
Brass
Valve Seat Material
EPDM
Valve Type
Pressure Reducing Valve
Electrical & Operational Information
Maximum Temperature
212
Warranty & Product Information
ASSE Standards
ASSE 1012-2009
LBC Red List Approved
No
LBC Red List Free
No
Living Product Challenge Certification
No
Type
T3353
UPC
687752022322
