Hot-Link Recirculation System

Taco

Hot-Link Recirculation System

  • Fast #
  • Part #THLS2
  • Item #7173017
  • Manufacturer Part #HLS-2
5 out of 5 Customer Rating
Brand image
Taco 115V MNPT Stainless Steel Hot-link System
Taco 115V MNPT Stainless Steel Hot-link System
Taco 115V MNPT Stainless Steel Hot-link System
Taco 115V MNPT Stainless Steel Hot-link System
Taco 115V MNPT Stainless Steel Hot-link System
Taco 115V MNPT Stainless Steel Hot-link System
Taco

Hot-Link Recirculation System

  • Fast #
  • Part #THLS2
  • Item #7173017
  • Manufacturer Part #HLS-2
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Reduces the time it takes for hot water comfort to reach showers and faucets
  • Saves an average family up to 12,000 gallons of water per year
  • Easy to retrofit to an existing plumbing system - No dedicated return line needed
  • Exclusive clean-in-place undersink valve design reduces customer calls to replace "plugged" valves
  • Analog clock timer allows you to set the system to work during peak usage hours or to work continuously

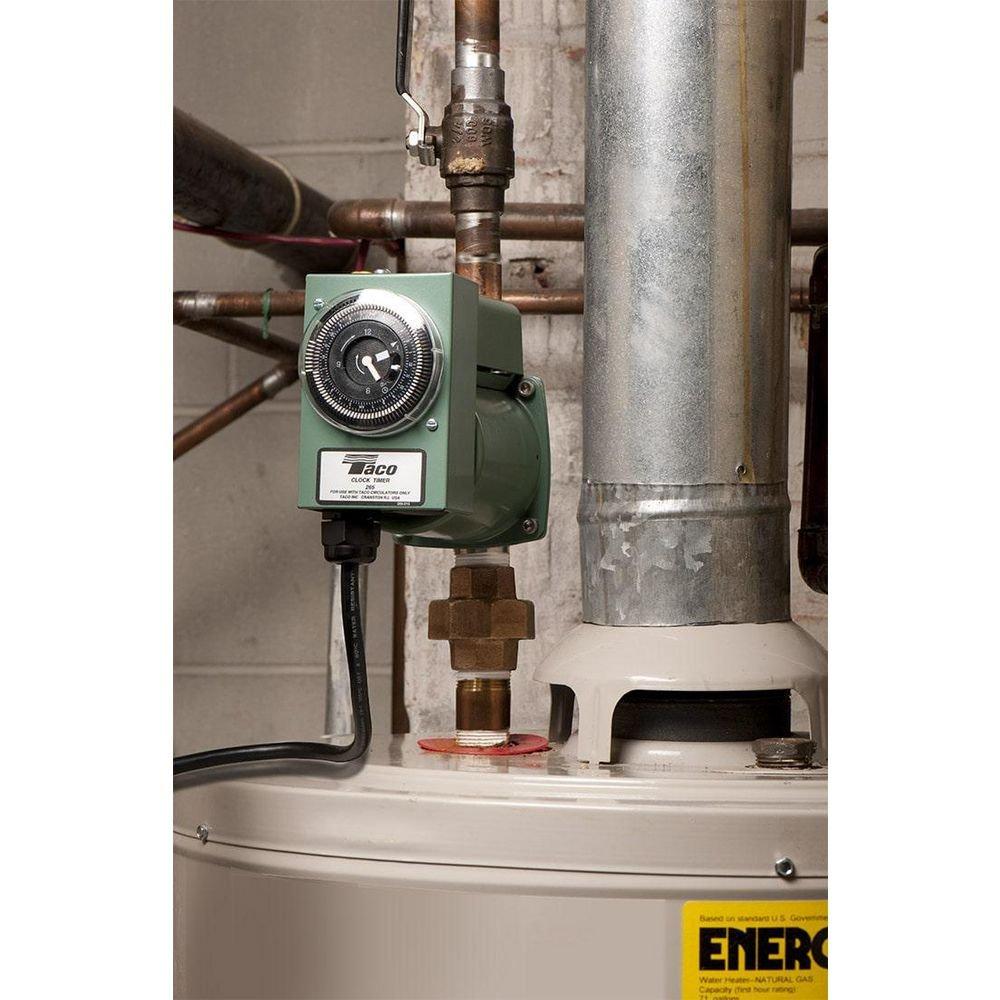

  • No under-sink electricity needed as circulator is mounted at the water heater
  • Easy to install
  • 6' power cord included
  • Whisper quiet operation
  • 3 year warranty
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
Connection Size
3/4
Cord Length
6 ft
Depth
7-3/8 in
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Flow at 5 feet of Head
9.5 gpm
Height
8-1/4 in
Maximum Feet of Head
9.5
Pressure - Maximum
125 psi
Width
3-5/16 in
Characteristics & Features
Connection Type
NPT
Hertz
60
Impeller
Composite
Material
Stainless Steel, Noryl
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pump Body Material
Stainless Steel
Pump Motor Type
PSC
Pump Mounting
Horizontal
Pump Phase
1
Pump Stage
1
Electrical & Operational Information
AMP
0.52
Horsepower
1/35 hp
Maximum Temperature
230
Minimum Temperature
40
Phase
Single Phase
Power Source
Plug-in
RPM
3250
Volts
115V
Watts
19 W
Warranty & Product Information
ANSI
ANSI 372
ASTM
No
Energy Star Compliant
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 372
NSF Certified
Yes
Origin
Domestic
Product Type
Circulator Pump
Pump Application
Circulator Pump
UL Listed
Yes
UPC
687752469776
