2 x 1-1/2 in. Painted Grooved Reducer Coupling with E-Gasket
Tyco

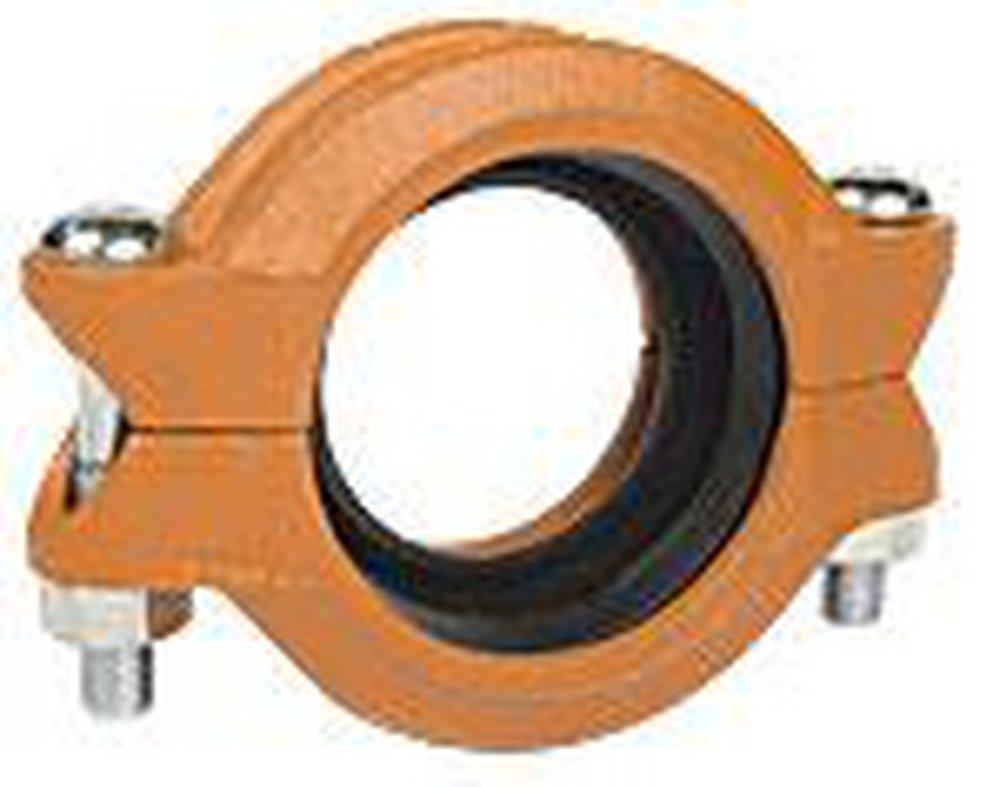

Grinnell® G-Fire 2 x 1-1/2 in. Painted Grooved Reducer Coupling with E-Gasket
All Sizes
Purchase history
Tyco
Grinnell® G-Fire
2 x 1-1/2 in. Painted Grooved Reducer Coupling with E-Gasket
7162015ES
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Provides an economical and efficient method of changing direction, adding an outlet, reducing, or capping grooved piping systems
- Available sizes: 2 in. x 1-1/2 in. (DN50 x DN40) through 8 in. x 6 in. (DN200 x DN150)
- Allows easy transition between two different pipe sizes and replaces two couplings and a reducing fitting
- It is capable of pressures up to 350 psi (24,1 bar) depending on pipe size and wall thickness
- A flexible reducing coupling is not recommended for low-temperature applications
- Listings and approvals: UL, ULC, FM, VdS, & LPCB
- Faster and easier than threading, welding or using flanges
- Standard grade "E" EPDM gasket, -30° F to 230° F (-34° C to 110° C)
Dimensions & Measurements
End Connection 1
Grooved
End Connection 2
Grooved
End Connections
Grooved
Fitting Size 1
2 in
Fitting Size 2
1-1/2 in
Fitting Sizes
2 in x 1-1/2 in
Length
1-22/25 in
Pressure - Maximum
350 psi
Weight
2.0 lb
Characteristics & Features
Coating
Painted
Collection
Grinnell® G-Fire
Fitting Type
Coupling
Material
Carbon Steel, Ductile Iron, Rubber
Material Type
EPDM
Electrical & Operational Information
Maximum Temperature
150
Warranty & Product Information
Application
Fire Protection
ASTM
ASTM A-153, ASTM A-183 Grade 2, ASTM A-536 Grade 65-45-12, ASTM A-563M Class 9, ASTM B-633, ASTM F-568M
FM Approved
Yes
NSF Certified
No
Origin
Global
UL Listed
Yes
