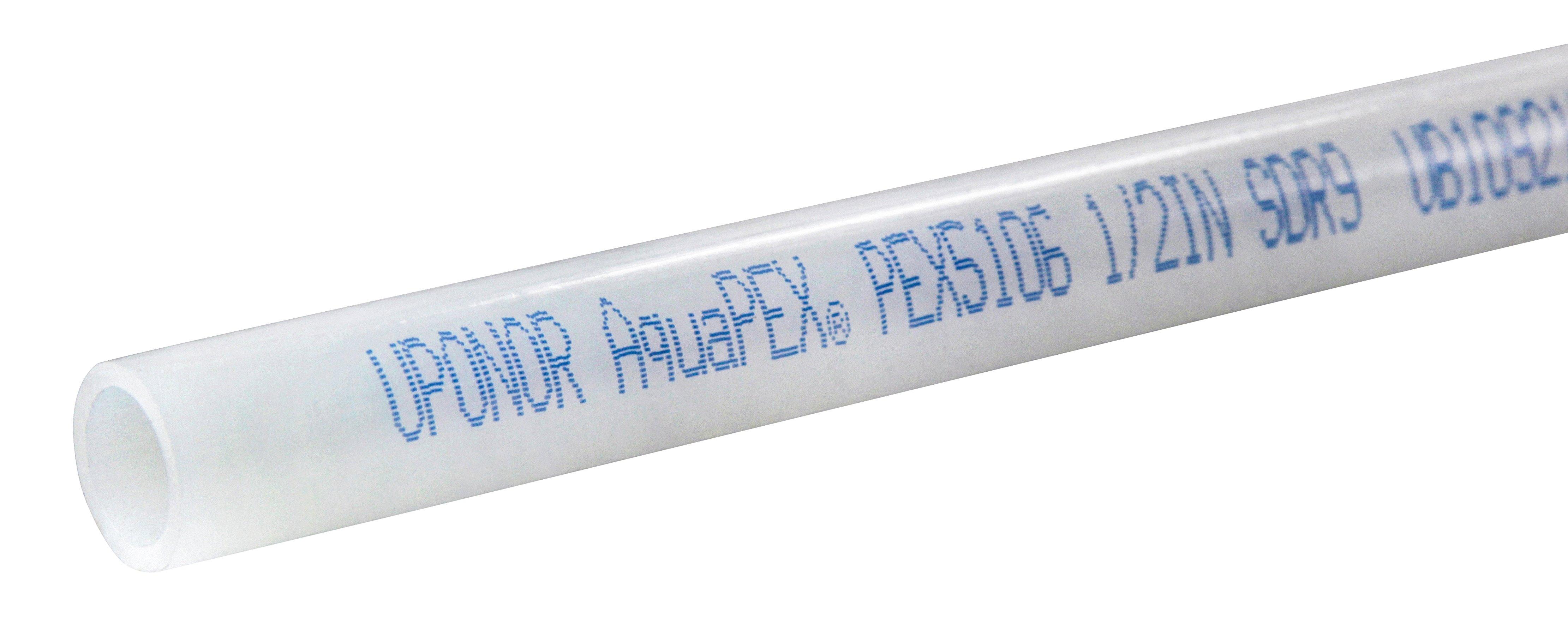

1/2 in. x 300 ft. PEX-A Tubing Coil in White with Blue Print
Uponor
AquaPEX® 1/2 in. x 300 ft. PEX-A Tubing Coil in White with Blue Print
Points
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 14
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Uponor
AquaPEX®
1/2 in. x 300 ft. PEX-A Tubing Coil in White with Blue Print
F4360500
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Engel-method PEX-a with the highest degree of crosslinking for the greatest flexibility, durability, and performance
- Water Quality Association (WQA) Gold Seal for the greatest resiliency in freezing conditions
- Blue colored print string to designate cold-water lines
- Resists corrosion, pitting, and scale buildup
- Long, flexible coils reduce the number of required fittings
- Approved in continuous-recirculation systems operating up to 140°F (60°C)
- Features a one-month UV resistance
- Approved for use with ASTM F1960 ProPEX® expansion fittings as well as crimp, clamp, compression, and push-to-connect fitting systems
- Manufactured in the U.S.A.
- Backed by a 25-year transferable limited warranty when combined with Uponor ProPEX® fittings
Dimensions & Measurements
Diameter - Inside 1
1/2 in
Diameter - Outside
5/8 in
Length
300 ft
Pressure - Maximum
160 psi
Characteristics & Features
Collection
AquaPEX®
Color Finish Name
White
Material
Plastic
Material Type
PEX-A
PipeTubing Size
1/2 in
Electrical & Operational Information
Maximum Temperature
200
Warranty & Product Information
ANSI
ANSI 14, ANSI 61
Application
Commercial
ASTM
ASTM E-119, ASTM E-814, ASTM E-84, ASTM F-1960, ASTM F-2023, ASTM F-876, ASTM F-877
AWWA
AWWA C-904
CSA Certified
CSA B137.5, CSA B214
Fire Suppression System Rated
Yes
FM Approved
No
GSA Approved
No
IAPMO Listed
Yes
NSF
NSF 14, NSF 61
NSF Certified
Yes
Origin
Domestic
UL Listed
UL 263
UPC
673372505901
