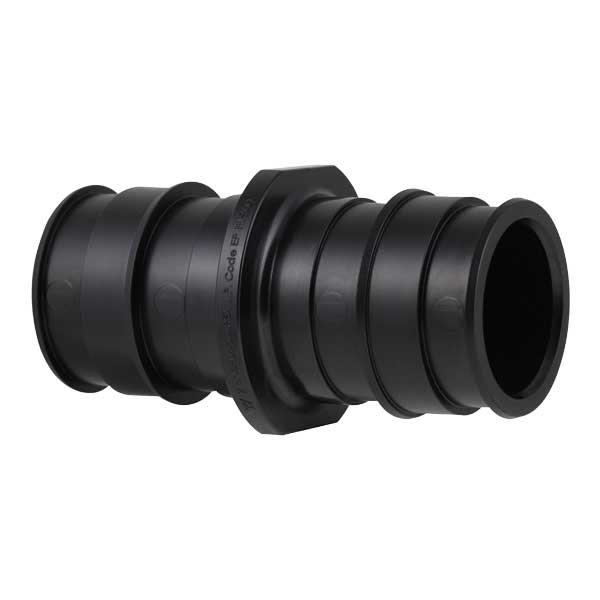

3 in. Plastic PEX Expansion Coupling
ProPEX® 3 in. Plastic PEX Expansion Coupling
Package Quantity Info:
EA: 1 IP: 10 CA: 10 PT: 320-
Pick Up: Not available
-
Shipping: Available for immediate shipment
All Sizes
Product Details
- Makes straight PEX-to-PEX connections using the trusted, proven, reliable ProPEX ASTM F1960 connection systems
- Manufactured from high-performance engineered polymers
- Approved for use in hot and cold domestic potable water, hydronic distribution piping, and radiant heating and cooling systems
- Backed by a 25-year transferable limited warranty when used as a system with Uponor PEX pipe and ProPEX rings
- Eliminates joining chemicals and open flame from the job site to promote worker safety
- Impossible to dry fit
- Offers greater durability and longevity compared to metals
- Competitive alternative to metals
Documents
Specifications
- ASTM:
- ASTM E-119, ASTM E-814, ASTM E-84, ASTM F-1960, ASTM F-877
- CARB OTC LEED Compliant:
- No
- CSA Certified:
- CSA B137.5
- Clean Bagged:
- No
- Collection:
- ProPEX®
- Diameter:
- 4-1/5 in
- End Connection 1:
- PEX Expansion
- End Connection 2:
- PEX Expansion
- End Connections:
- PEX Expansion x PEX Expansion
- FM Approved:
- No
- Fitting Size 1:
- 3 in
- Fitting Size 2:
- 3 in
- Fitting Sizes:
- 3 in
- Fitting Type:
- Coupling
- IAPMO Listed -:
- Yes
- Length:
- 7-3/100 in
- Material:
- Plastic
- Material Type:
- Engineered Polymer
- Maximum Temperature:
- 200
- Minimum Temperature:
- 73
- NSF:
- NSF 14, NSF 61
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure - High:
- 150
- Pressure - Maximum:
- 160 psi
- Temperature Range:
- Up to 210 Deg F (Up to 99 Deg C)
- Type:
- UQ4773030
- UL Listed:
- UL 263
- Weight:
- 0.85 lb
