1/4 in. Stainless Steel Full Port NPT 2000# Ball Valve

You last purchased this on

Velan Valve

VEE-2000 Series 1/4 in. Stainless Steel Full Port NPT 2000# Ball Valve

  • Fast #
  • Part #VSM1113SSGAB
  • Item #1823071
  • Manufacturer Part #S01M1113SSGA
4.9 out of 5 Customer Rating
Brand image

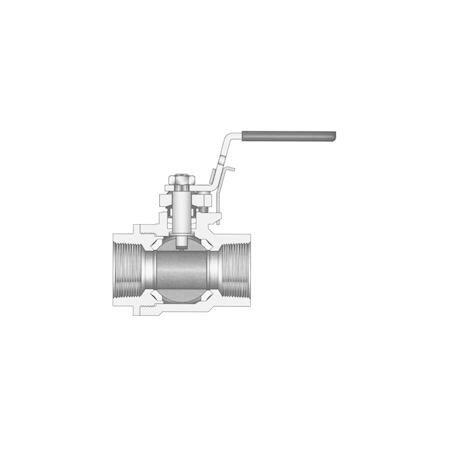

Velan Valve Stainless Steel Full Port NPT 2000# Ball Valve
You last purchased this on

Velan Valve

VEE-2000 Series 1/4 in. Stainless Steel Full Port NPT 2000# Ball Valve

  • Fast #
  • Part #VSM1113SSGAB
  • Item #1823071
  • Manufacturer Part #S01M1113SSGA
4.9 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 60 Pallet: 120
Looking for compatible parts?
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • Stainless Steel Body
  • RPTFE Seats
  • Threaded, VEE-2000, Full Port, End-Entry (Two-Piece), F316/CF8M Body, 316 Ball & Stem, Glass Reinforced PTFE Seat, Standard Service
  • Metal oscillating non-hold-open handle
  • Spud coupling, wall and spud flange for 1 1/4" top spud
  • 11 1/2" rough-in above fixture
  • Nos. S3082453 and S3082475 include ADA compliant handle, vandal resistant stop cap with set screw, and sweat solder adapter with cover tube and cast set screw wall flange
  • ADA
  • Requires Certification

Documents

SPECIFICATION

Specifications

Collection:
VEE-2000 Series
End Connection 1:
NPT
End Connection 2:
NPT
End Connections:
NPT
FM Approved:
No
IAPMO Listed:
No
Material:
Stainless Steel
Material Type:
CF8M
NSF Certified:
No
Pressure Class:
2000#
UL Listed:
No
Valve Body Style:
2 piece
Valve Operator:
Locking Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Reinforced PTFE
Valve Size:
1/4 in
Valve Type:
Ball Valve
