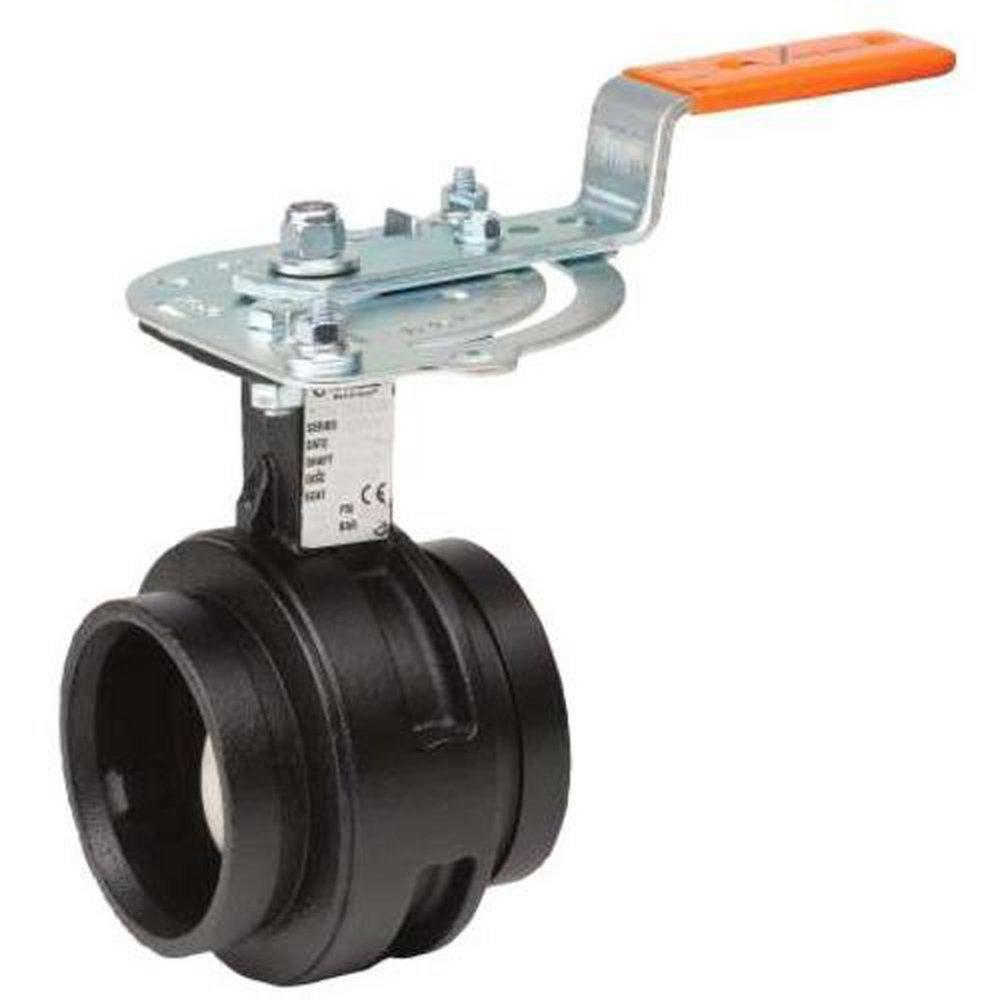

2 in. Ductile Iron EPDM Bare Stem Butterfly Valve
Victaulic
761 Series MasterSeal™ 2 in. Ductile Iron EPDM Bare Stem Butterfly Valve
Purchase history
Victaulic
761 Series MasterSeal™
2 in. Ductile Iron EPDM Bare Stem Butterfly Valve
V020761SE0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Designed for bi-directional, dead end services to full working pressure
- Available without handle, with gear operator, with lever lock handle and memory stop or with 10-position handle and memory stop
- Sizes from 2 - 12" / DN50 -DN300
- Pressures up to 300 psi / 2068 kPa / 21 bar
- For AGS sizes 14 - 24" / DN350 - DN600, download publication 20.06 for information on series W761
- For AGS sizes 26 - 48" / DN650 - DN1200, download publication 20.07 for information on series W709
Dimensions & Measurements
End Connection 1
Grooved
End Connection 2
Grooved
End Connections
Grooved
Length
3-21/100 in
Pressure Class
300#
Valve Size
2 in
Characteristics & Features
Coating
Black
Collection
761 Series MasterSeal™
Material
Ductile Iron, Rubber
Material Type
EPDM
Proposition 65
WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Valve Body Material
Ductile Iron
Valve Body Style
Grooved
Valve Disc Material
Ductile Iron
Valve Operator
Bare Stem
Valve Seat Material
EPDM
Valve Stem
Blowout-proof
Valve Type
Butterfly Valve
Electrical & Operational Information
Maximum Temperature
250
Pressure - High
300
Warranty & Product Information
ANSI
ANSI 300, ANSI 61
ASTM
ASTM A536 Grade 65-45-12, ASTM A582, ASTM B733
FM Approved
No
ISO
ISO 5208, ISO 5211
MSS
MSS SP-67
NSF
NSF 61
NSF Certified
Yes
Recommended Valve Application
Water
UL Listed
Yes
UPC
688304816444
