2 in. Ductile Iron Grooved Check Valve
Victaulic

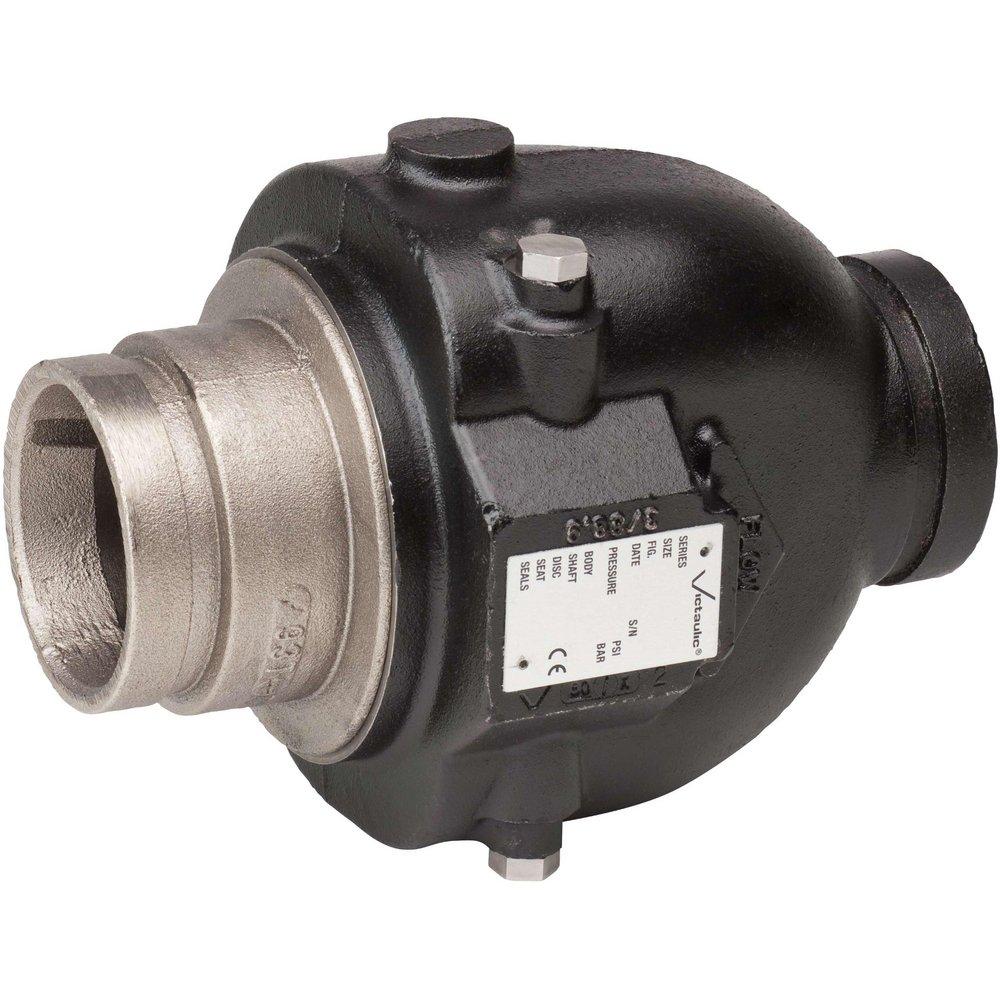

Series 716H 2 in. Ductile Iron Grooved Check Valve
Points
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 241
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Victaulic
Series 716H
2 in. Ductile Iron Grooved Check Valve
V020716PE3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Features an elastomer encapsulated disc and a welded in nickel seat
- Sizes from 4 – 12" / DN100 –DN300
- Pressures up to 300 psi / 2068 kPa / 21 bar
- For AGS sizes 14 – 24" , download publication 20.08 for information on Series W715
- Series 716H/716 check valves are engineered for long life and seize-free sealing
- For the series 716H, in 2-3"/50-80 mm sizes, the stainless steel disc seats against the O-ring seal which is mounted on the electroless nickel plated end face
Dimensions & Measurements
End Connection 1
Grooved
End Connection 2
Grooved
End Connections
Grooved
Length
8-3/4 in
Pressure Class
365#
Valve Size
2 in
Weight
10.7 lb
Width
6-1/2 in
Characteristics & Features
Coating
Painted
Collection
Series 716H
Color Finish Name
Black
Installation Type
Horizontal Mount, Vertical Mount
Material
Ductile Iron
Proposition 65
WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Valve Body Material
Ductile Iron
Valve Body Style
Grooved
Valve Disc Material
Stainless Steel
Valve Seat Material
EPDM, Electroless Nickel Plated
Valve Type
Check Valve
Electrical & Operational Information
Pressure - High
365
Warranty & Product Information
ASTM
ASTM A-536 Grade 65-45-12, ASTM B-733
FM Approved
No
IAPMO Listed
No
NSF Certified
No
UL Listed
No
UPC
688304656149
