2 in. Ductile Iron Standard Port Grooved 1500# Ball Valve

This product has been replaced by

2 727 HP BV CS STEM & BALL W/HDL
Victaulic 2 727 HP BV CS STEM & BALL W/HDL
Manufacturer Part #V020727PHC
Victaulic

Series 727 2 in. Ductile Iron Standard Port Grooved 1500# Ball Valve

  • Fast #
  • Part #VV020727PHA
  • Item #5025421
  • Manufacturer Part #V020727PHA
4.6 out of 5 Customer Rating
Brand image

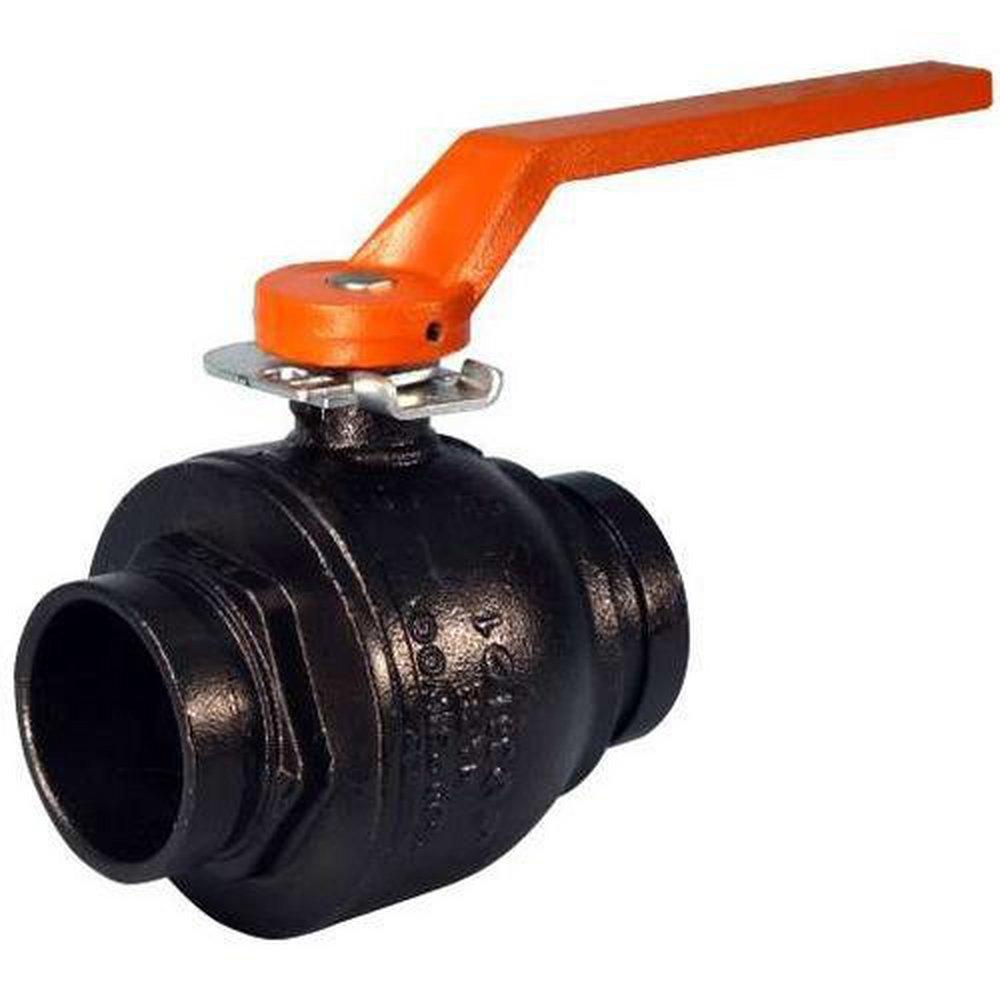

Victaulic Ductile Iron Standard Port Grooved 1500# Ball Valve
Victaulic Ductile Iron Standard Port Grooved 1500# Ball Valve

This product has been replaced by

2 727 HP BV CS STEM & BALL W/HDL
Victaulic 2 727 HP BV CS STEM & BALL W/HDL
Manufacturer Part #V020727PHC
Victaulic

Series 727 2 in. Ductile Iron Standard Port Grooved 1500# Ball Valve

  • Fast #
  • Part #VV020727PHA
  • Item #5025421
  • Manufacturer Part #V020727PHA
4.6 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
Looking for compatible parts?

Product Details

Product Description
  • High pressure enhanced port NACE-compliant ball valve
  • Up to 1/3 better flow than competitive standard port ball valves
  • Floating ball reduces torque requirements
  • Sizes from 2 in. - 6 in. / DN50 - DN150
  • Pressure up to 1500 psi / 10342 kPa / 103 bar
Product Information
  • Requires Certification

  • Lead Law Compliant

Documents

SPECIFICATION
Dimensions & Measurements
End Connection 1
Grooved
End Connection 2
Grooved
End Connections
Grooved
Length
5-63/100 in
Pressure Class
1500#
Valve Size
2 in
Weight
7.2 lb
Width
4 in
Characteristics & Features
Clean Bagged
No
Collection
Series 727
Handle Material
Ductile Iron
Material
Ductile Iron
Proposition 65
WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Standard Port
Valve Seat Material
Lubricated Nylon
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
1500
Temperature Range
-20 to 150 Deg F (-29 to 66 Deg C)
Warranty & Product Information
ASTM
ASTM A-105, ASTM A-395 Grade 60-40-18, ASTM A-395M-99 Grade 60-40-18, ASTM A-536 Grade 65-45-12, ASTM B-733
BAA Compliant
No
cUPC Certified
No
Fire Suppression System Rated
No
FM Approved
No
IAPMO Listed
No
ISO
ISO 9001:2008
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
No
NSF Certified
No
Recommended Valve Application
Water
UL Listed
No
UPC
883481359696
