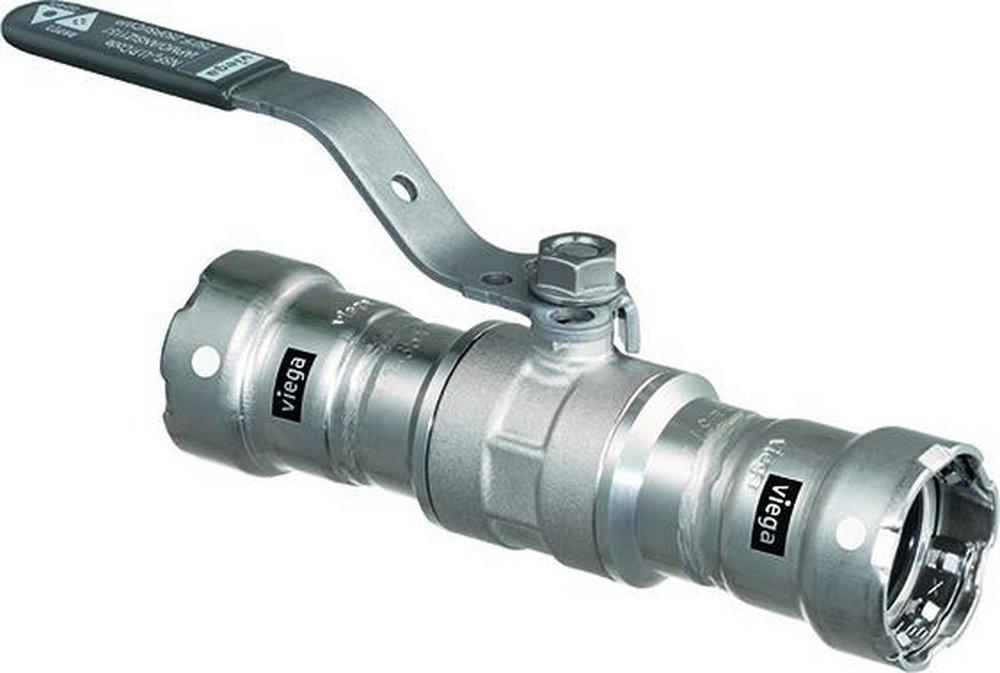

MegaPress® 3/4 in. Carbon Steel Full Port Press Ball Valve
Purchase history
Viega
MegaPress®
3/4 in. Carbon Steel Full Port Press Ball Valve
28950
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Available with EPDM and FKM sealing elements
- For use on up to schedule 40 pipe
- ISO 5211 actuator mounting pads
- Potable water, hydronic water and many other applications
- Carbon steel, 304 and 316 stainless options available
- 2-piece, 3-piece and check valve options available
- 316 stainless steel ball
- Body material designation: CS 1.0553
- Eco Brass® blowout-proof stem
- Lockable metal handle
Specifications
- ANSI:
- ANSI Z1157
- ASME:
- ASME B31
- Clean Bagged:
- Yes
- Collection:
- MegaPress®
- End Connection 1:
- Press
- End Connection 2:
- Press
- End Connections:
- Press
- Handle Length (in):
- 4-14/25 in
- Handle Material:
- Metal
- Height:
- 2-427/500 in
- IAPMO Listed:
- Yes
- ISO:
- ISO 5211
- Length:
- 5-59/100 in
- MSS:
- MSS SP-110
- Material:
- Carbon Steel, Metal, Plastic
- Material Type:
- RPTFE
- Maximum Temperature:
- 250
- Origin:
- Global
- Pressure - High:
- 250
- Recommended Valve Application:
- Industrial, Commercial, Marine
- Temperature Range:
- 14 to 284 Deg F
- Valve Body Material:
- Carbon Steel
- Valve Body Style:
- 2 piece
- Valve Operator:
- Lockable Metal Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- RPTFE
- Valve Size:
- 3/4 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 1.109 lb
- Width:
- 1-62/125 in
