3 in. IPS Ductile Iron Coupling with Rubber Insulating Sleeve and Anode
Wal-Rich

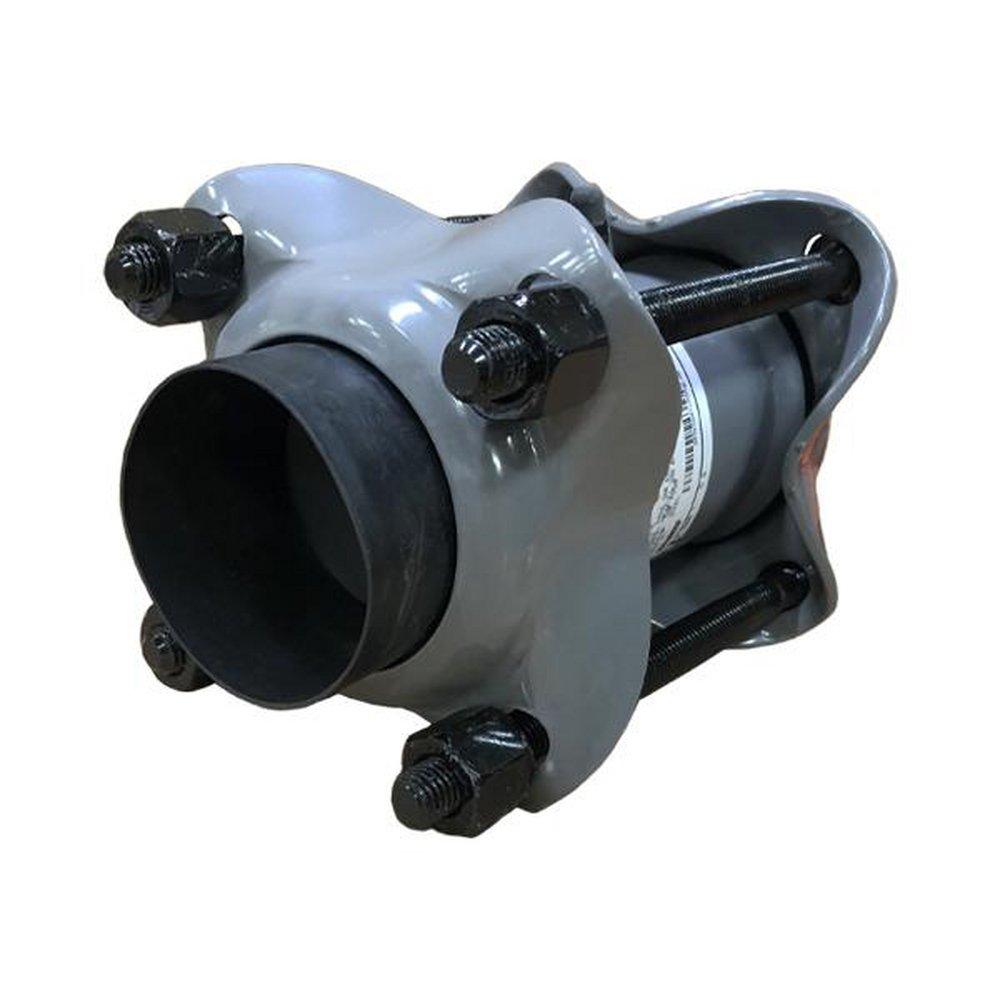

DRESSER™ Style 39 3 in. IPS Ductile Iron Coupling with Rubber Insulating Sleeve and Anode
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
All Sizes
Purchase history
Wal-Rich
DRESSER™ Style 39
3 in. IPS Ductile Iron Coupling with Rubber Insulating Sleeve and Anode
2803004
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Dresser Style 39 insulating couplings are widely used on lines which are to be electrically isolated for cathodic protection, or for insulating between pipe of dissimilar metals
- The Style 39 coupling follows the same basic design and benefits as the Style 38 coupling, but has insulating properties
- The insulating gasket has a skirt which extends under the follower ring to insulate it from the pipe. In addition, a “full boot” plastic tubular insulator inside the middle ring assures isolation of pipe ends
- Thus, one pipe end is completely insulated from the coupling and opposite pipe end, while the armored gasket on the other end bonds the coupling to the pipe where it can share cathodic protection currents
- Style 39 couplings can be virtually used on all sizes of gas and oil pipelines, and can be supplied with insulating features on both ends if required
Documents
Dimensions & Measurements
End Connection 1
Gasket
End Connection 2
Gasket
End Connections
Gasket
Fitting Size 1
3 in
Fitting Size 2
3 in
Fitting Sizes
3 in
Characteristics & Features
Collection
DRESSER™ Style 39
Fitting Type
Coupling, Straight
Material
Carbon Steel, Ductile Iron, Malleable Iron, Rubber
Material Type
Buna-S
Warranty & Product Information
ASME
ASME SA-36, ASME SA-675 GR60
ASTM
ASTM A-513, ASTM A-635
UPC
730284066088
