2 in. Compression Cast Iron Coupling
Wal-Rich

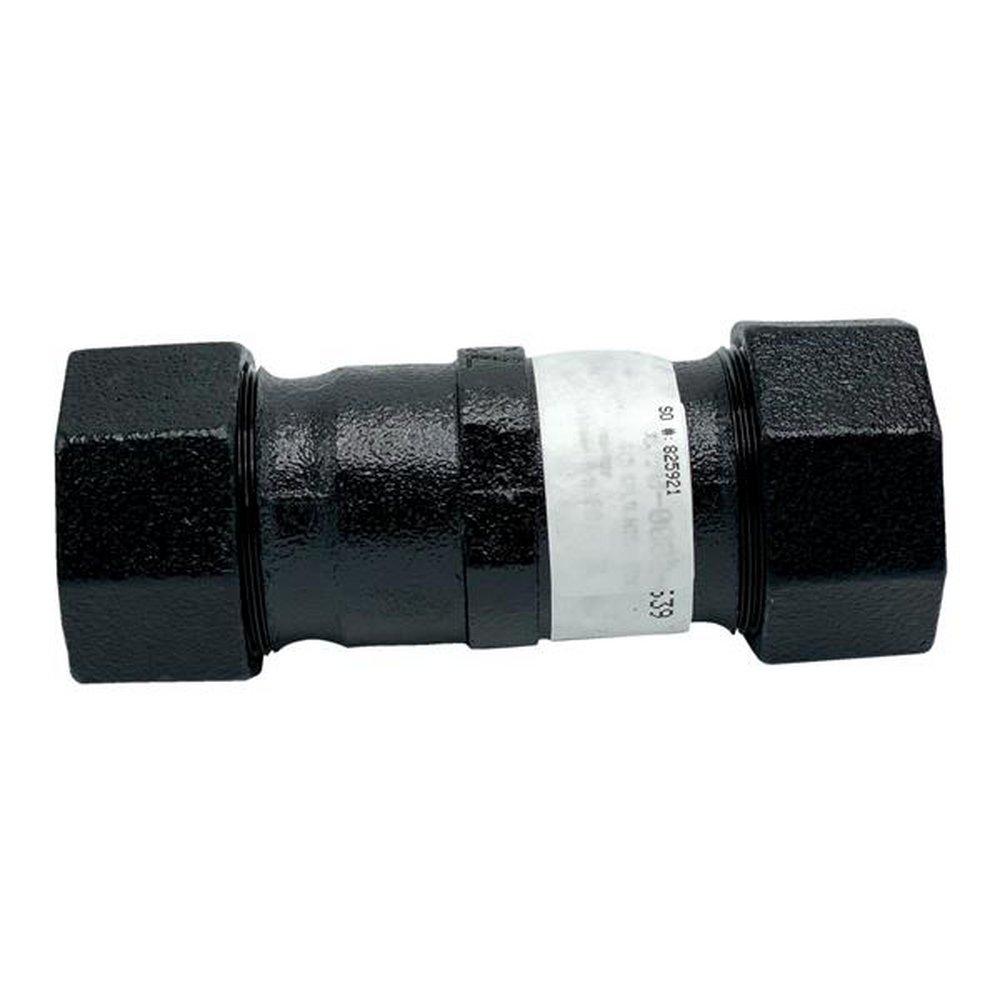

Dresser™ Style 90 2 in. Compression Cast Iron Coupling
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
All Sizes
Purchase history
Wal-Rich
Dresser™ Style 90
2 in. Compression Cast Iron Coupling
2806012
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Style 90 couplings and fittings consist of a cast iron or forged steel body; two resilient, specially compounded gaskets; two steel, self-centering protective gasket retainer cups; and two heavy end nuts
- All fittings are shipped assembled, ready-to-use and install in just a few minutes. 150 PSIG standard
- Made of rugged iron or cast-steel with a machined, wedge-shaped flare that provides a perfect gasket seat and uniform pack at all points
- Thickness always at least equal to that of pipe (on couplings, ells & tees)
- Longitudinal pipe movement up to 1/16 in. per gasket may be safely absorbed
- High grade iron, perfectly formed and rigidly inspected
- Long threading affords reserve “take-up” on gasket when needed and prevents stripping. Robust thread design resists stripping
- An ample, wedge-shaped section gives reserve packing power and high gasket pressure
- Scientifically compounded rubber is made to last the life of the pipe
- Interchangeable with most of the corresponding sizes of gaskets used in Style 38 bolted couplings
Documents
Dimensions & Measurements
End Connection 1
Compression
End Connection 2
Compression
End Connections
Compression
Fitting Size 1
2 in
Fitting Size 2
2 in
Fitting Sizes
2 in
Length
5 in
Characteristics & Features
Collection
Dresser™ Style 90
Fitting Type
Coupling, Straight
Material
Cast Iron
Warranty & Product Information
UPC
730284067405
