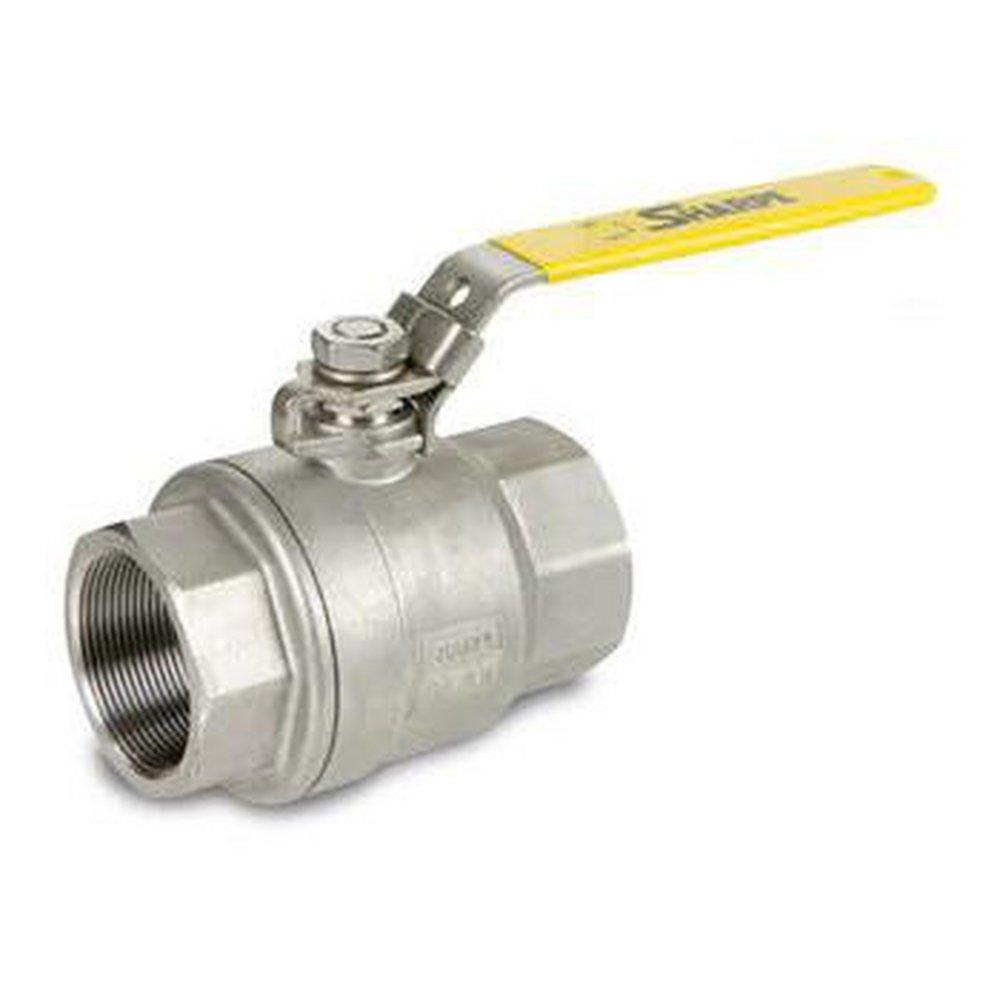

1 in. Stainless Steel Full Port Threaded 1000# Ball Valve
You last purchased this on
Warren Valve LP
1022C Series 1 in. Stainless Steel Full Port Threaded 1000# Ball Valve
Purchase history
Warren Valve LP
1022C Series
1 in. Stainless Steel Full Port Threaded 1000# Ball Valve
1022C 1
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
Specifications
- ANSI:
- ANSI B1.20.1
- API:
- API 598
- ASTM:
- ASTM A-276 316, ASTM A-351 Grade CF8M
- Clean Bagged:
- No
- Collection:
- 1022C Series
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- FM Approved:
- No
- Handle Material:
- Stainless Steel
- IAPMO Listed:
- No
- ISO:
- ISO 5211
- Length:
- 3-9/100 in
- Material:
- Stainless Steel, Plastic
- Material Type:
- 304, 316, PTFE, RPTFE
- NSF Certified:
- No
- Pressure - High:
- 150
- Pressure - Maximum:
- 1500 psi
- Pressure Class:
- 1000#
- Recommended Valve Application:
- Gas, Oil, Potable Water
- UL Listed:
- No
- Valve Body Material:
- 316 Stainless Steel
- Valve Body Style:
- 2 piece
- Valve Operator:
- Locking Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- RPTFE
- Valve Size:
- 1 in
- Valve Type:
- Ball Valve
- Weight:
- 1.41 lb
