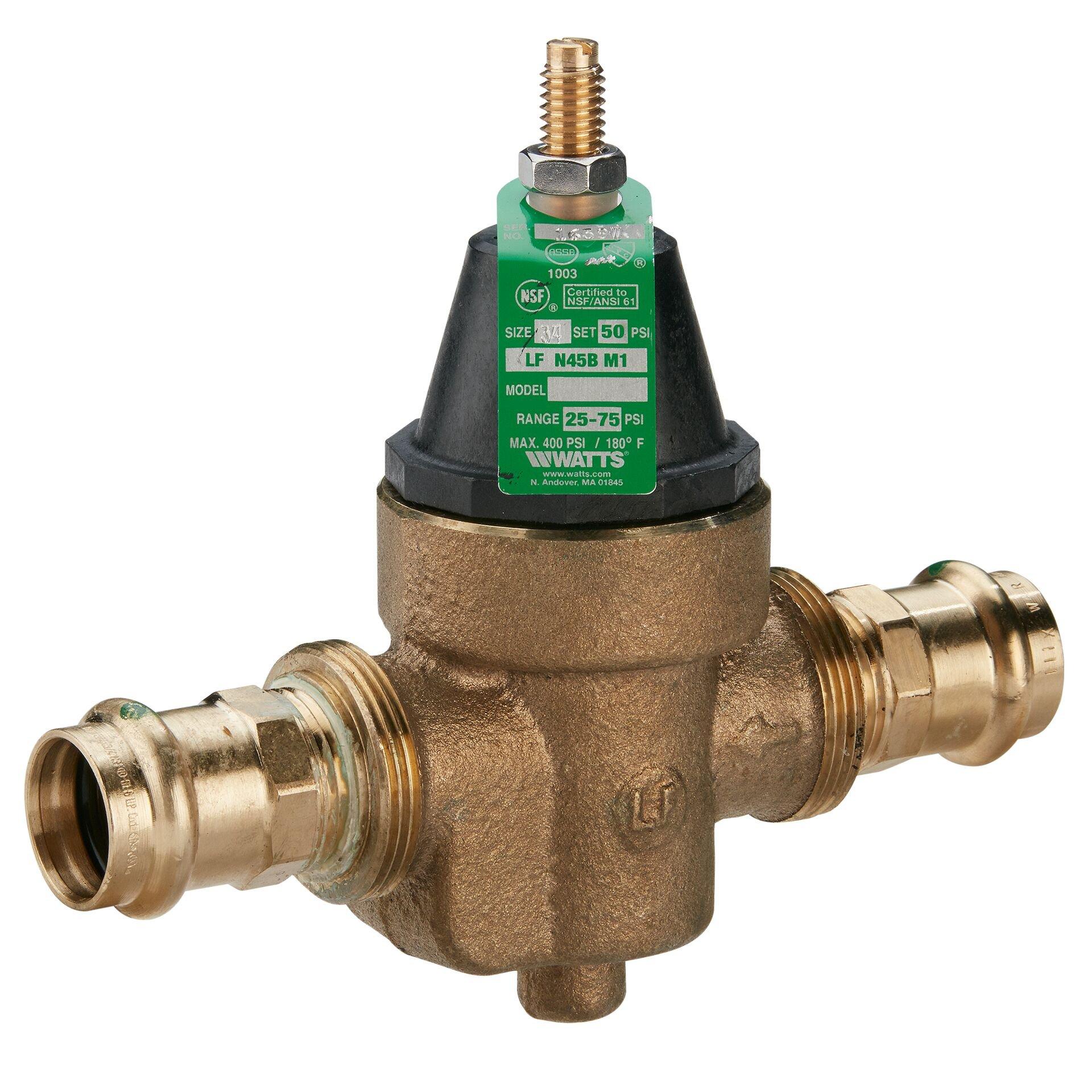

Union Press Hydronic Pressure Regulating Valve 400 psi 180F Cast Copper Silicon Alloy
Watts
LFN45B Series Union Press Hydronic Pressure Regulating Valve 400 psi 180F Cast Copper Silicon Alloy
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 12Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Watts
LFN45B Series
Union Press Hydronic Pressure Regulating Valve 400 psi 180F Cast Copper Silicon Alloy
88006880
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Viega ProPress® connections
- Integral stainless steel strainer removable for cleaning
- Thermoplastic seat and cage
- Sealed spring cage for accessible outdoor or waterworks pit installations
- Double union press connections
Dimensions & Measurements
End Connection 1
Union Press
End Connection 2
Union Press
End Connections
Union Press
Height
5-1/2 in
Length
3-7/16 in
Pressure - Maximum
400 psi
Valve Size
3/4 in
Width
2-1/2 in
Characteristics & Features
Collection
LFN45B Series
Material
Cast Copper Silicon Alloy
Proposition 65
CALIFORNIA PROP 65 WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Valve Body Material
Cast Copper Silicon Alloy
Valve Body Style
Standard
Valve Disc Material
Elastomer
Valve Seat Material
Thermoplastic
Valve Type
Pressure Regulator Valve
Electrical & Operational Information
Maximum Temperature
180
Warranty & Product Information
ANSI
ANSI 61 Annex G, ANSI A112.26.2
ASSE Standards
ASSE 1003
BAA Compliant
No
CSA Certified
CSA B356
IAPMO Listed
Yes
Lead Law Compliance Level
Applicable to Lead Leaching, Not Compliant
NSF
NSF 61
NSF Certified
Yes
UPC
098268178265
