2-1/2 in. 300 psi Cast Copper Silicon Alloy FNPT Pressure Reducing Valve

Watts

Series LF223 2-1/2 in. 300 psi Cast Copper Silicon Alloy FNPT Pressure Reducing Valve

  • Fast #
  • Part #WLFN223BM2L
  • Item #3920416
  • Manufacturer Part #0298602
4.2 out of 5 Customer Rating
Brand image

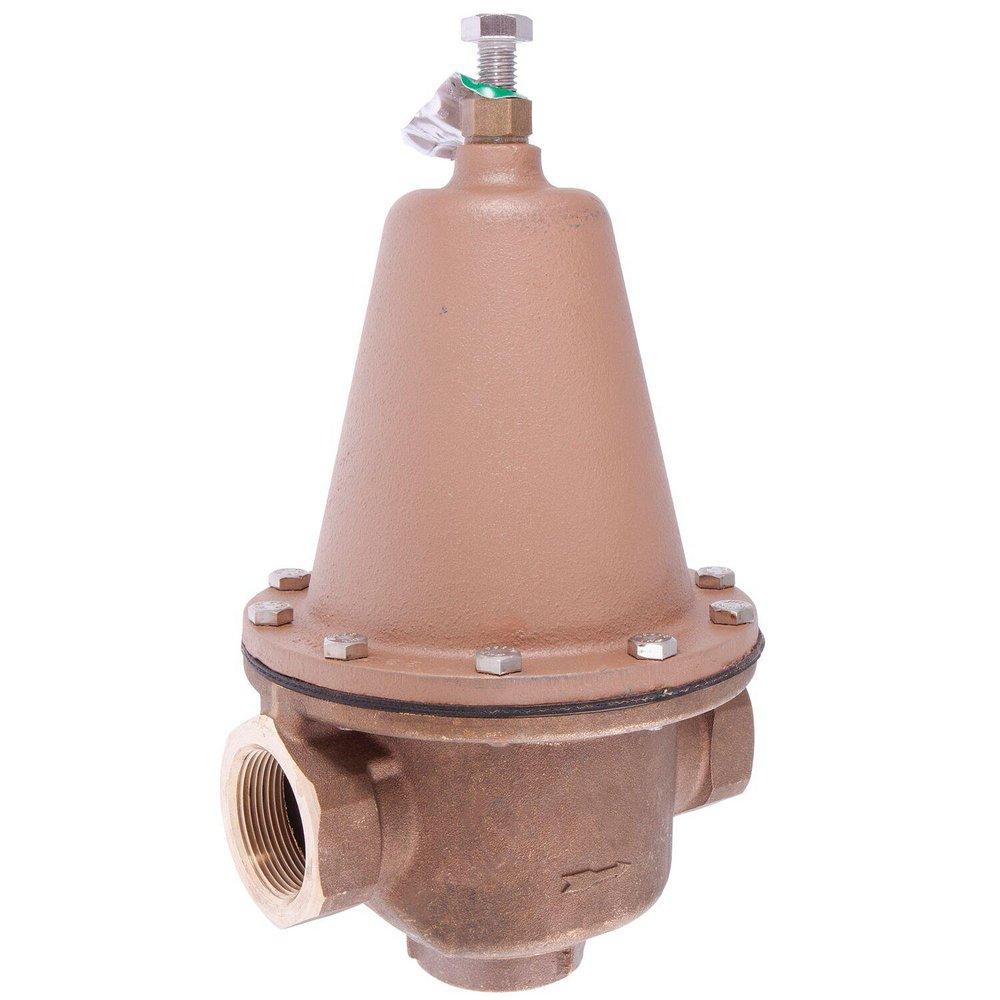

Watts 300 psi Cast Copper Silicon Alloy FNPT Pressure Reducing Valve
Watts 300 psi Cast Copper Silicon Alloy FNPT Pressure Reducing Valve
Watts

Series LF223 2-1/2 in. 300 psi Cast Copper Silicon Alloy FNPT Pressure Reducing Valve

  • Fast #
  • Part #WLFN223BM2L
  • Item #3920416
  • Manufacturer Part #0298602
4.2 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • NPT threaded female inlet by NPT threaded female outlet connections
  • Lead free iron body construction
  • Enlarged diaphragm, spring cage and seat orifice for high capacity performance
  • Serviceable in line
  • Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
  • Sensitive spring and large diaphragm for accurate pressure control
  • High temperature resisting diaphragm for hot or cold water
  • Sealed spring cage
  • Maximum working pressure 300 PSI (20.7 BAR)
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Height
13-5/8 in
Length
9 in
Pressure - Maximum
300 psi
Valve Size
2-1/2 in
Weight
32.5 lb
Width
9-1/2 in
Characteristics & Features
Collection
Series LF223
Material
Copper Silicon Alloy
Proposition 65
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Valve Body Material
Cast Iron
Valve Body Style
Standard
Valve Disc Material
Copper Silicon Alloy
Valve Port Opening
Standard Port
Valve Seat Material
Stainless Steel
Valve Type
Pressure Reducing Valve
Electrical & Operational Information
Maximum Temperature
160
Warranty & Product Information
ANSI
ANSI 61 Annex G, ANSI A112.26.2
ASSE Standards
ASSE 1003
CSA Certified
Yes
FM Approved
No
IAPMO Listed
Yes
ISO
ISO 9001-2008
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 61 Annex G
NSF Certified
Yes
Recommended Valve Application
Water
UL Listed
No
UPC
098268350791
