1-1/4 in. Copper Silicon Alloy Full Port Threaded 600# Ball Valve

Watts

Series LFFBV-4 1-1/4 in. Copper Silicon Alloy Full Port Threaded 600# Ball Valve

  • Fast #
  • Part #WLFFBV4H
  • Item #4631699
  • Manufacturer Part #0555123
5 out of 5 Customer Rating
Brand image

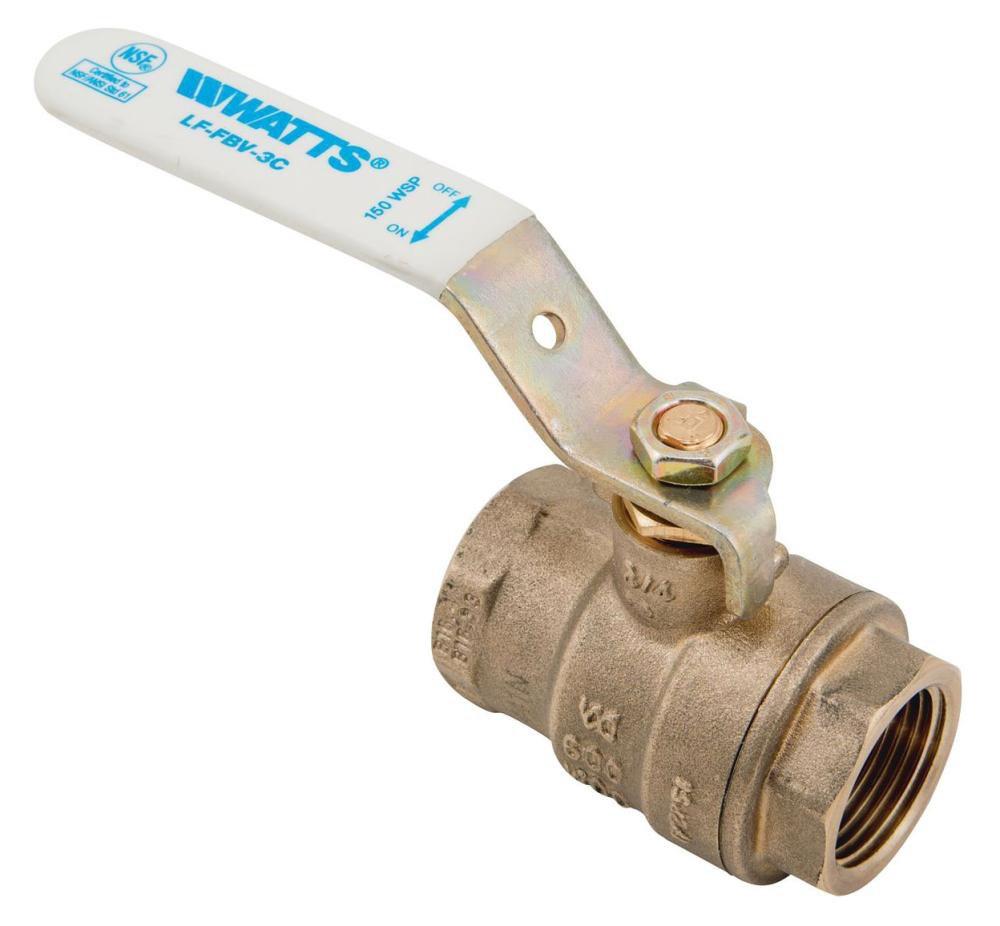

Watts Brass Copper Silicon Alloy Full Port Threaded 600# Ball Valve
Watts Brass Copper Silicon Alloy Full Port Threaded 600# Ball Valve
Watts

Series LFFBV-4 1-1/4 in. Copper Silicon Alloy Full Port Threaded 600# Ball Valve

  • Fast #
  • Part #WLFFBV4H
  • Item #4631699
  • Manufacturer Part #0555123
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 5 Case: 20
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Metal-to-metal adapter body seal to eliminate adapter leaks after soldering
  • Fluorocarbon elastomer stem O-ring prevents stem leaks
  • Adjustable stem packing gland provides longer service life
  • Bottom loaded blowout proof stem
  • Lead-free
  • CSA approved threaded valves only 1/4" - 3"
  • Certified to NSF/ANSI Standard 61/8
  • PTFE stem packing seal and seats
  • Machined chrome-plated lead free brass ball
  • Complies with MSS-SP-110
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 61-8, ANSI 61-G
ASME:
ASME B16.33, ASME B16.44
Collection:
Series LFFBV-4
End Connection 1:
FPT
End Connection 2:
FPT
End Connections:
FPT
FM Approved:
No
Handle Material:
Carbon Steel
Height:
5-83/100 in
IAPMO Listed:
No
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
3-1/8 in
MSS:
MSS SP-110
Material:
Forged Copper Silicon Alloy, Brass, Plastic
Material Type:
Virgin PTFE, Vinyl
Maximum Temperature:
400
Minimum Temperature:
-40
NSF:
NSF 61-8, NSF 61-G
NSF Certified:
Yes
Origin:
Global
Pressure - High:
600
Pressure Class:
600#
Proposition 65:
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Gas, Oil, Potable Water
Temperature Range:
0 to 400 Deg F (-18 to 204 Deg C)
UL Listed:
Yes
UPC:
098268805499
Valve Body Material:
Forged Copper Silicon Alloy
Valve Body Style:
2 piece
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
1-1/4 in
Valve Stem:
Bottom-loaded/Blowout-proof
Valve Type:
Ball Valve
Weight:
1.5 lb
Width:
3-59/100 in
