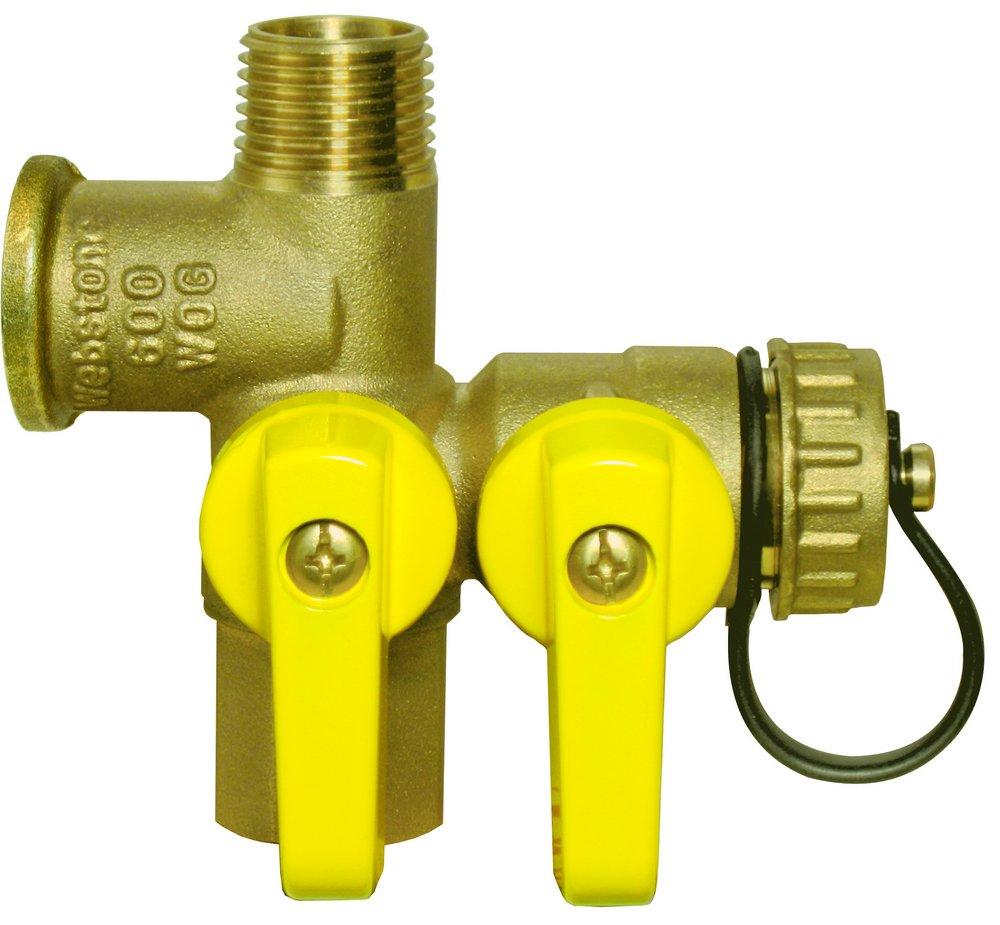

1/2 in. Pro-Pal Full Port Brass Ball Valve with Hi-Flow Hose Drain

Webstone a brand of NIBCO

4167 Series 1/2 in. Pro-Pal Full Port Brass Ball Valve with Hi-Flow Hose Drain

  • Fast #
  • Part #WH41672
  • Item #3874503
  • Manufacturer Part #H-41672
3.7 out of 5 Customer Rating
Brand image
Webstone a brand of NIBCO Brass Forged Brass Full Port FIPT x MIPT x FIPT x GHT 600# Ball Valve
Webstone a brand of NIBCO Brass Forged Brass Full Port FIPT x MIPT x FIPT x GHT 600# Ball Valve
Webstone a brand of NIBCO

4167 Series 1/2 in. Pro-Pal Full Port Brass Ball Valve with Hi-Flow Hose Drain

  • Fast #
  • Part #WH41672
  • Item #3874503
  • Manufacturer Part #H-41672
3.7 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 30
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • The 3-way ball controls flow between the expansion tank and the system
  • Replaces 7 components, eliminates 6 leak paths and saves 54 minutes of labor
  • Easily install, isolate, drain and replace any expansion tank
  • Ideal for use with webstone air separator
  • Quickly connect entire system to the cold water feed
  • MIP model for direct connection to air separator or tee
  • Saves 36 minutes
  • Replaces 5 components
  • Eliminates 4 leak paths
  • Available in FIP x MIP x FIP x Hose, FIP x FIP x FIP x Hose
Product Information
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Dimensions & Measurements
End Connection 1
FPT
End Connection 2
MPT
End Connection 3
FPT
End Connection 4
GHT
End Connections
FPT x MPT x FPT x GHT
Height
3-19/50 in
Pressure Class
600#
Valve Size
1/2 in
Characteristics & Features
Collection
4167 Series
Handle Material
Enamel Coated Aluminum
Material
Forged Brass, Plastic
Material Type
PTFE
Valve Body Material
Forged Brass
Valve Body Style
1 piece
Valve Operator
Quarter Turn Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
350
Pressure - High
600
Warranty & Product Information
ANSI
ANSI B1.20.1
FM Approved
No
IAPMO Listed
No
ISO
ISO 9001
Lead Law Compliance Level
Not Compliant, Approved for Non-Potable Water Applications
NSF Certified
No
Recommended Valve Application
Gas, Oil, Potable Water
UL Listed
No
UPC
018394416727
