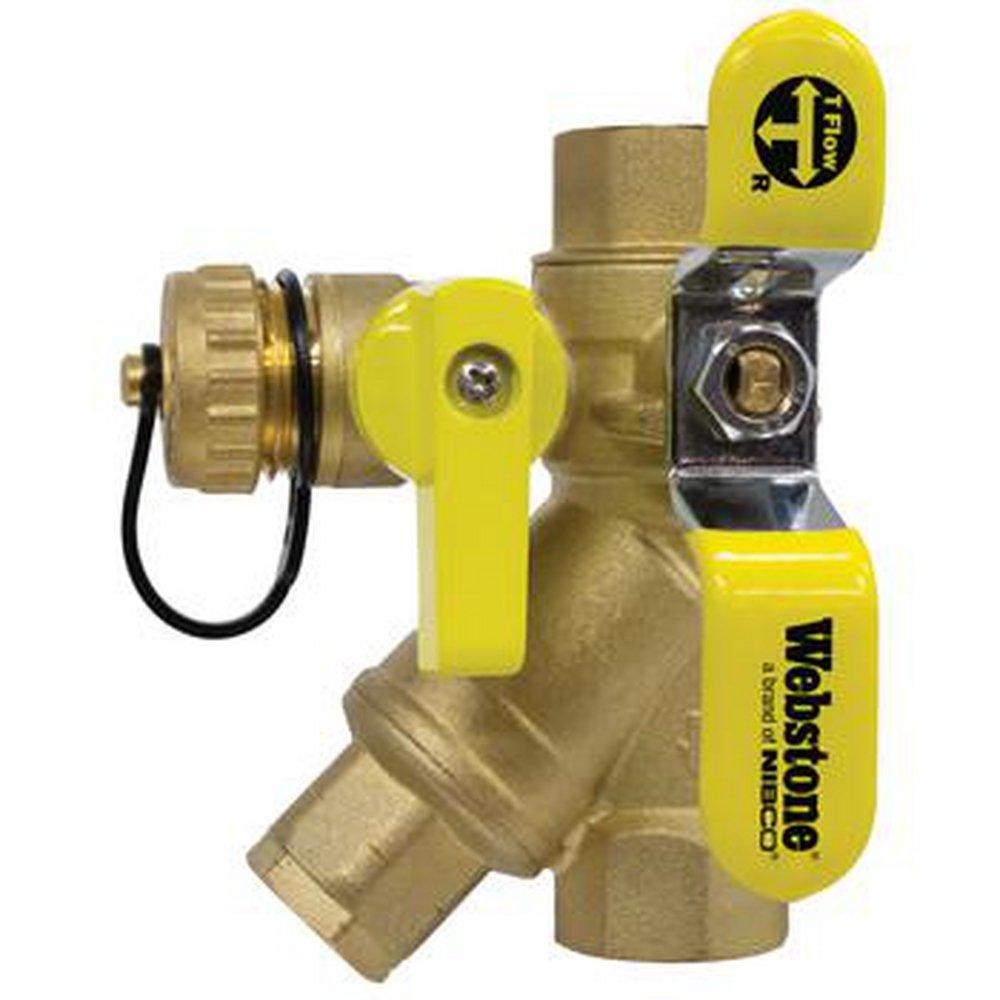

1/2 in. FIP Pro-Pal Ball Drain Strainer
Webstone a brand of NIBCO
H-x156W Series 1/2 in. FIP Pro-Pal Ball Drain Strainer
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Webstone a brand of NIBCO
H-x156W Series
1/2 in. FIP Pro-Pal Ball Drain Strainer
H-41562W
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Eliminates assemblies needed to isolate, drain and strain any portion of a piped system
- Integrated Y-strainer saves space and protects system from debris
- Creates cleaner-looking, more efficient installations
- Replaceable 20 mesh screen
- O-ring sealed and plugged strainer port for easy removal of filter
- O-ring sealed and plugged blow down port for easy installation of a drain valve
- Suitable for vertical or horizontal installation
- Saves 63 minutes, replaces 8 components
- Eliminates 7 leak paths
- This valve is actuated by a blowout proof stem
Dimensions & Measurements
End Connection 1
FIPT
End Connection 2
FIPT
End Connections
FIPT
Height
2-14/25 in
Length
3-29/50 in
Pressure Class
250#
Valve Size
3/4 in
Width
3-27/50 in
Characteristics & Features
Collection
H-x156W Series
Material
Forged Brass, Brass, Plastic
Material Type
DZR, PTFE
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Forged Brass
Valve Body Style
1 piece
Valve Material
Brass
Valve Operator
Wing Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-proof
Valve Type
Y-Strainer
Electrical & Operational Information
Maximum Temperature
200
Pressure - High
250
Warranty & Product Information
ANSI
ANSI 372, ANSI B1.20.1, ANSI 61
NSF
NSF 372, NSF 61
Origin
Global
Recommended Valve Application
Glycol, Oil, Water
UL Listed
No
UPC
018394021570
