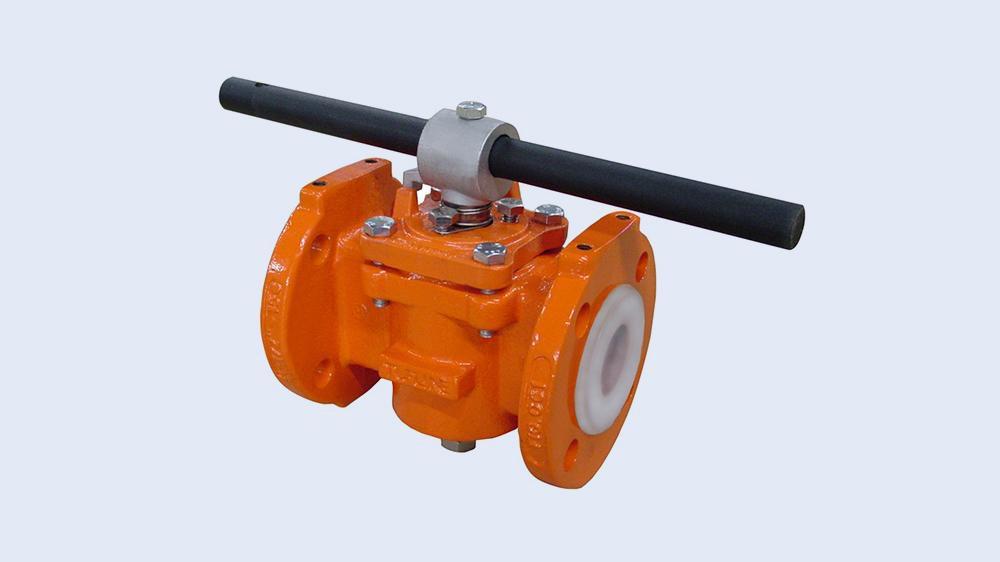

1-1/2 in. Ductile Iron Flanged Lockwing Handle Plug Valve
You last purchased this on
XOMOX
Figure 061 1-1/2 in. Ductile Iron Flanged Lockwing Handle Plug Valve
Purchase history
XOMOX
Figure 061
1-1/2 in. Ductile Iron Flanged Lockwing Handle Plug Valve
061-1-P6-2-P6-WY 1-1/2
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Locked in liner: There are no cavities where flow media can accumulate or contaminate
- Large seal area: Cast-in ribs behind the body lining concentrate compression of the lining between the ribs and the plug
- This assures a full circumferential in-line seal
- There is also a full circumferential seal around the plug, both above and below the flow passage
- In-line adjustments: The locked in lining resists shrinkage, collapse, and blow-out. Higher pressures and vacuums are easily handled
Documents
Specifications
- ANSI:
- ANSI B16.34
- ASME:
- ASME B16.34
- ASTM:
- ASTM D-5162
- Collection:
- Figure 061
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Length:
- 6-1/2 in
- MSS:
- MSS SP-61
- Material:
- Ductile Iron, Carbon Steel
- Material Type:
- PFA
- Pressure Class:
- 150#
- Recommended Valve Application:
- Benzene, Bromine, Chlorine, Hydrochloric Acid, Nitric Acid, Phosphoric Acid, Sea Water, Sulphuric Acid
- Valve Body Material:
- Ductile Iron
- Valve Body Style:
- 2-way
- Valve Operator:
- Lockwing Handle
- Valve Size:
- 1-1/2 in
- Valve Type:
- Plug Valve
