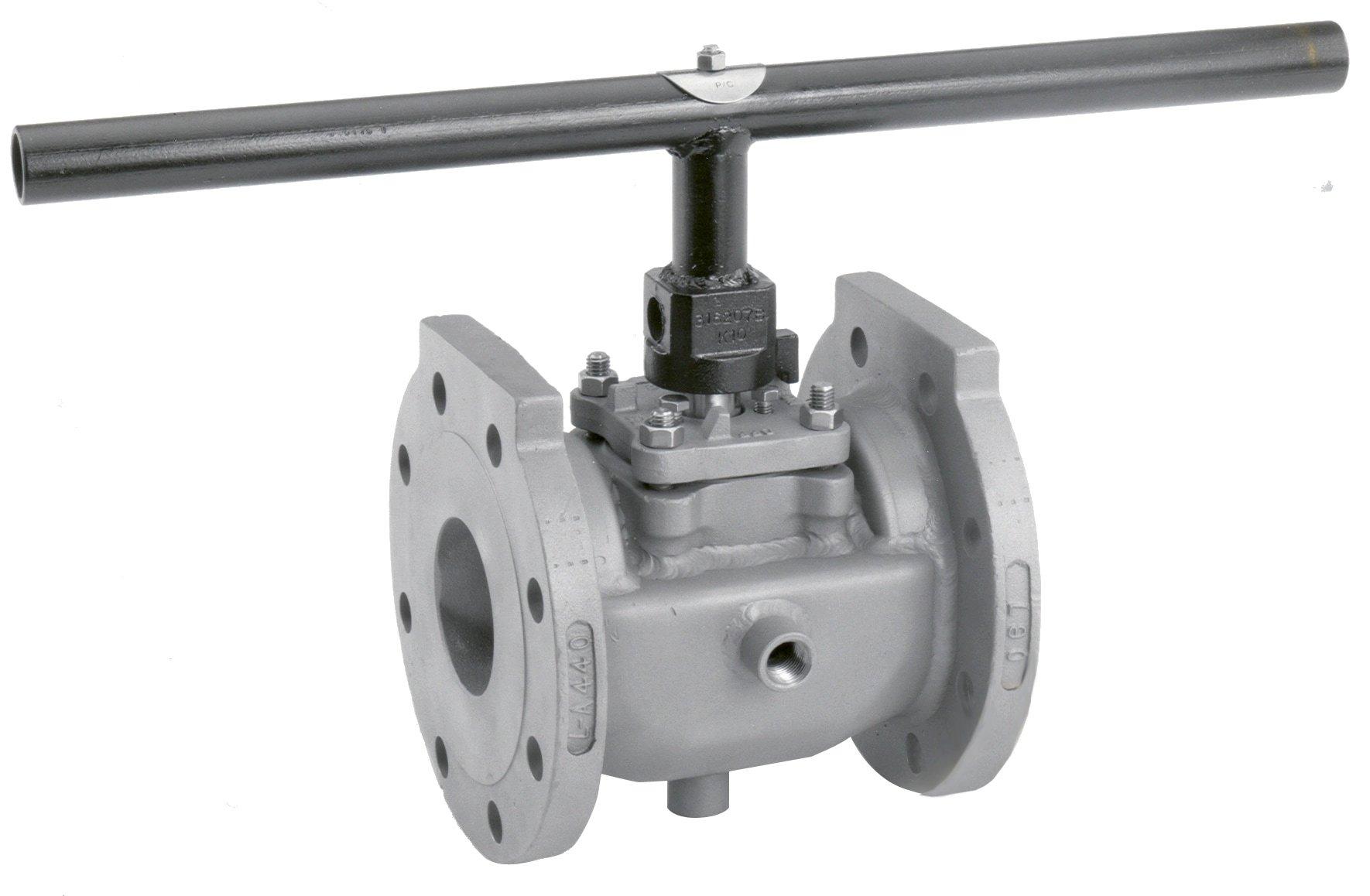

1 in. Stainless Steel 150 psi Flanged Wrench with Locking Device Plug Valve
XOMOX
Figure 067 1 in. Stainless Steel 150 psi Flanged Wrench with Locking Device Plug Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
XOMOX
Figure 067
1 in. Stainless Steel 150 psi Flanged Wrench with Locking Device Plug Valve
SE26379
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Bi-directional flow, simple actuation, lightweight compact design, and multiport configurations all facilitate improved system design
- The inert PTFE sleeve completely surrounds the plug providing a large, circumferential sealing surface from port to port
- Secure sealing with no cold-flow, deformation, or sleeve rotation and greatly minimized potential for blow out
- No seizing or sticking
- There are no body cavities where flow media can accumulate and contaminate future processing
Documents
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged x Flanged
Pressure - Maximum
150 psi
Valve Size
1 in
Characteristics & Features
Collection
Figure 067
Material
Stainless Steel
Valve Operator
Wrench with Locking Device
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Type
Plug Valve
