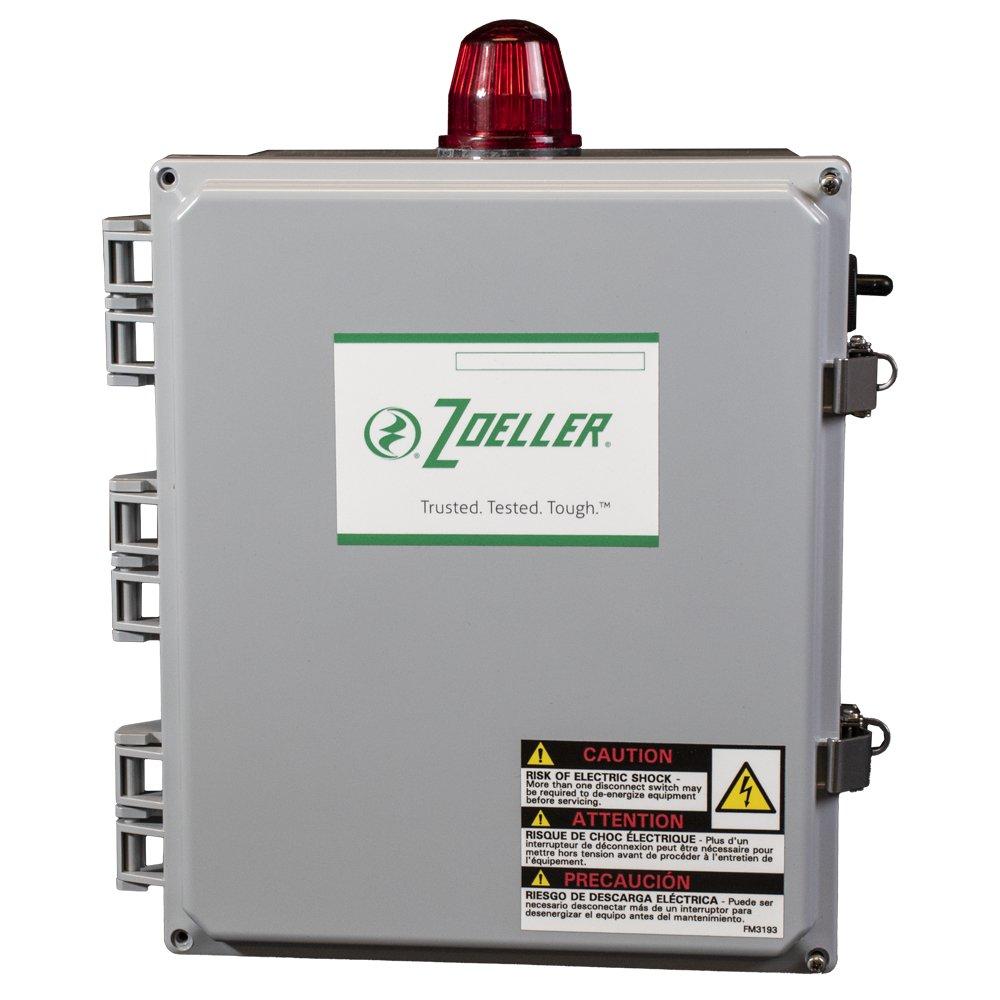

15A Polycarbonate Pump Control Panel
Zoeller Pump Co
15A Polycarbonate Pump Control Panel
Package Quantity Info:
Each: 1 Inner Pack: 1
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Zoeller Pump Co
15A Polycarbonate Pump Control Panel
31324-0001
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details

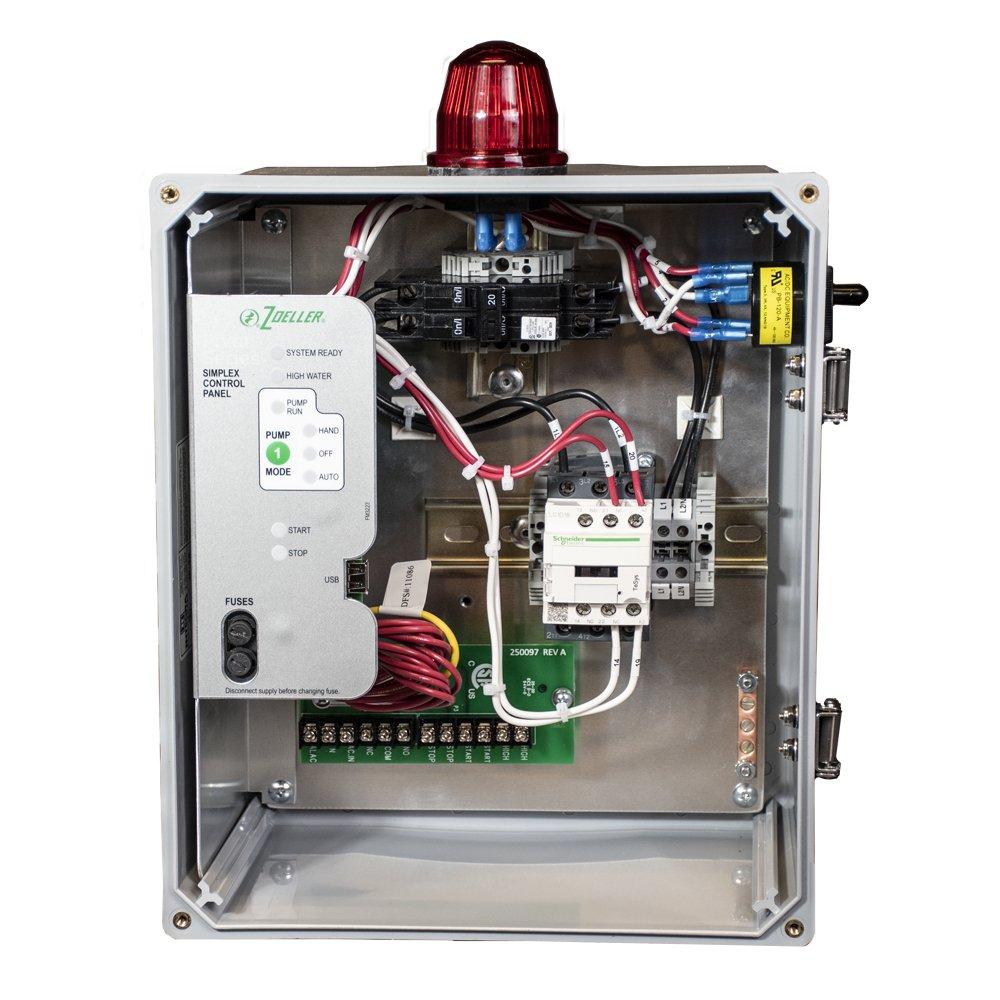

- RED/AMBER/GREEN LEDs for float switch indicators, Pump Run, High Water, System Ready, and HOA functions
- Ample room within the panel around the terminal block for field wiring
- TEST toggle will check all LEDs, globe, and horn
- Elapsed time and cycle counts can be downloaded via a built-in USB port
- Adjustable settings
- Smart float logic that will compensate for bad floats
- Continuous run alarm with a 20 minute default and many other adjustable settings
- Globe mode with a solid, blink, or alarm-specific blink pattern
- 5-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Specifications
- AMP:
- 15
- Brand Model Compatibility:
- Pivot Simplex
- CSA Certified:
- No
- Color Finish Name:
- Grey
- Cover Included:
- Yes
- Decibel Rating (dB):
- 95 dB
- Depth:
- 6 in
- Height:
- 10 in
- Length:
- 12 in
- Material:
- Plastic
- Material Type:
- Polycarbonate
- Maximum Temperature:
- 140
- NEMA:
- NEMA 4X
- Phase:
- Single Phase
- UL Listed:
- No
- UPC:
- 053514445829
- Volts:
- 115V
- Width:
- 6 in
