Washdown Urinal in White

You last purchased this on

Zurn

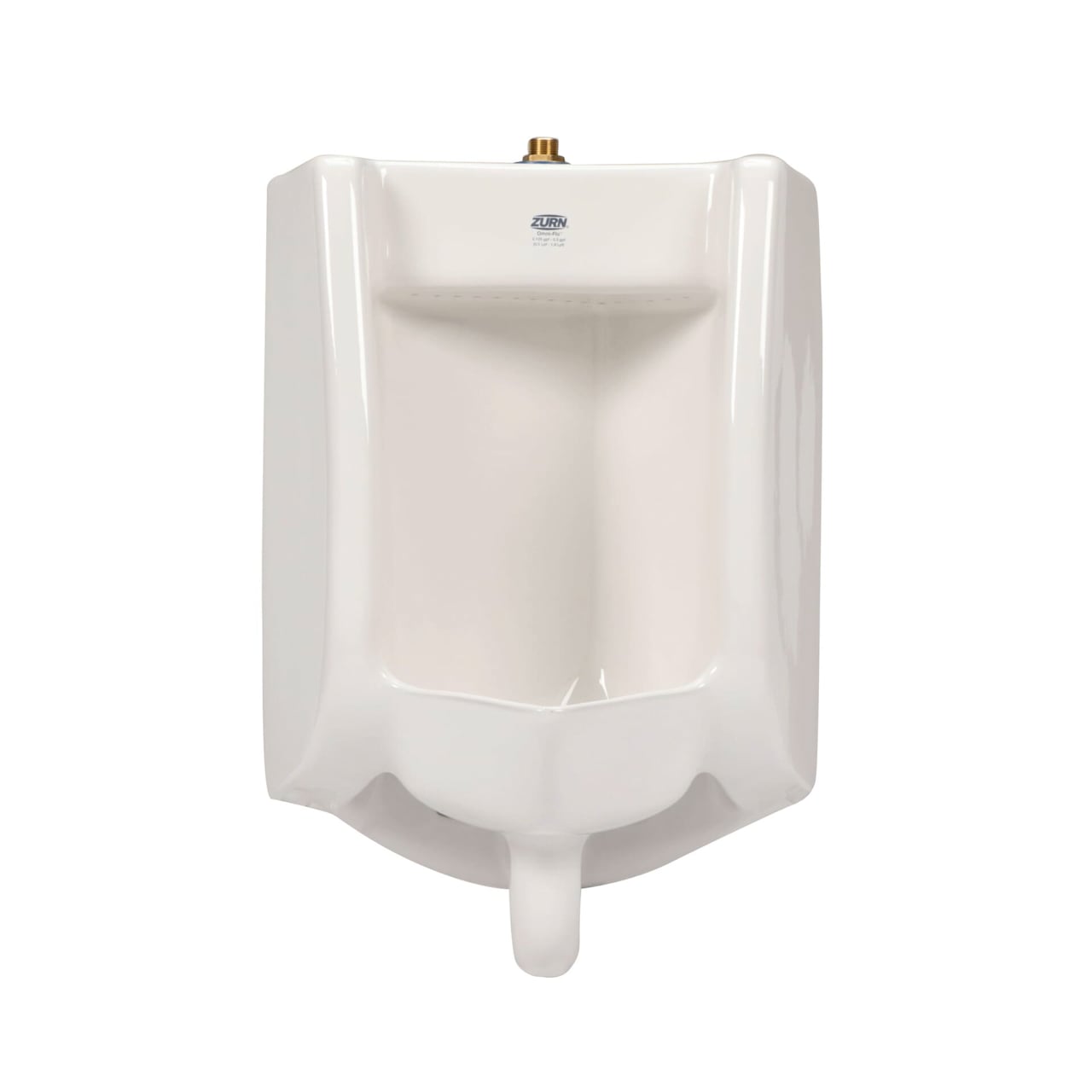

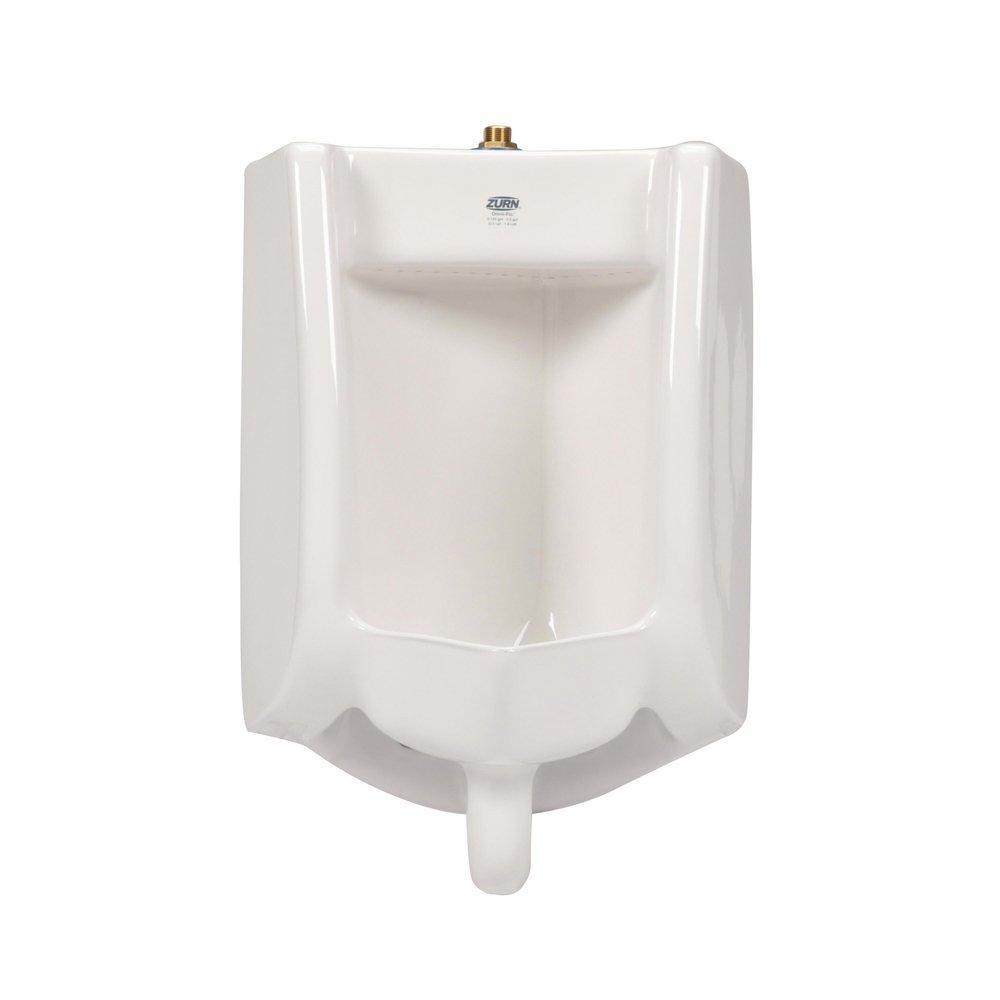

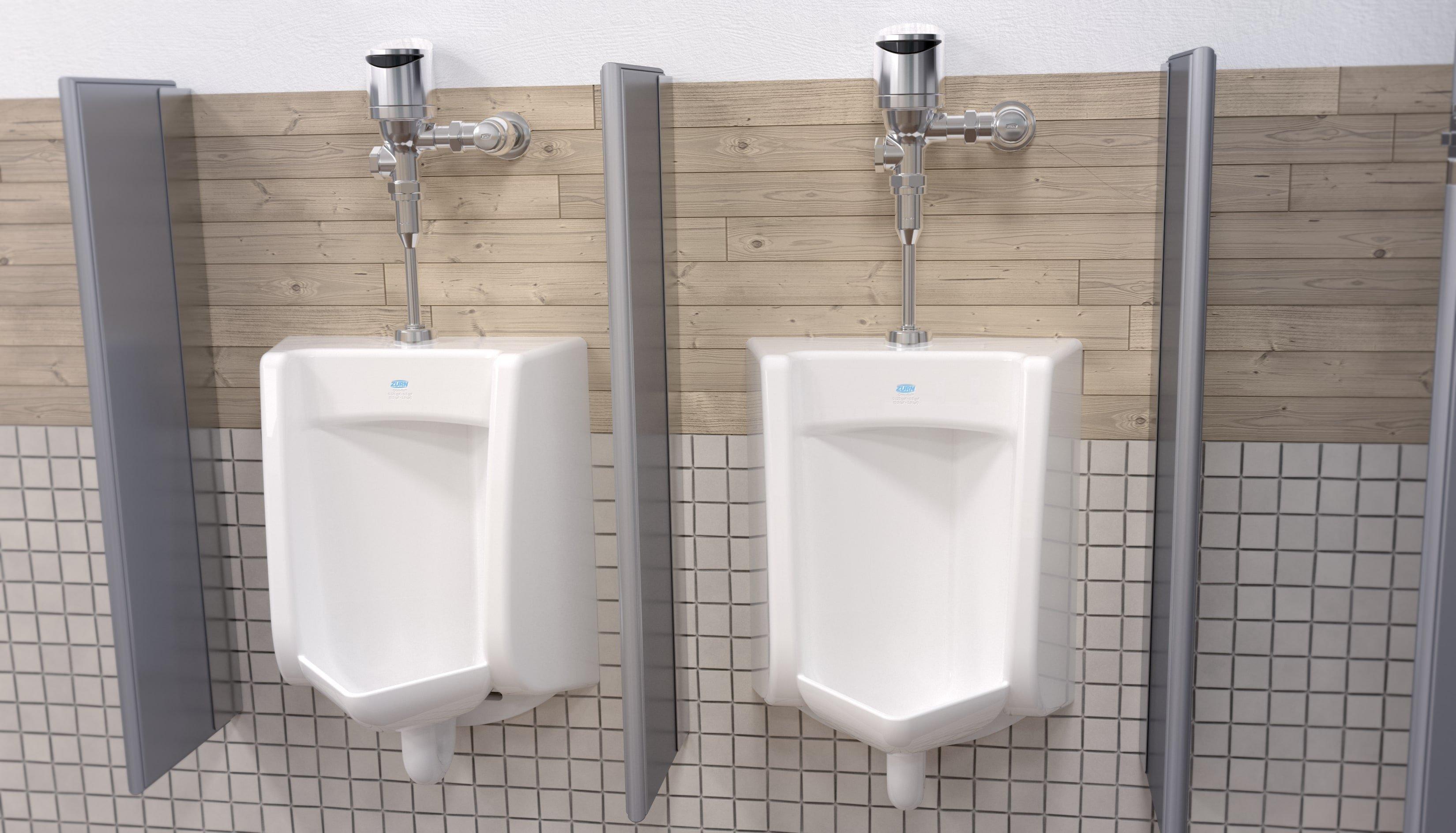

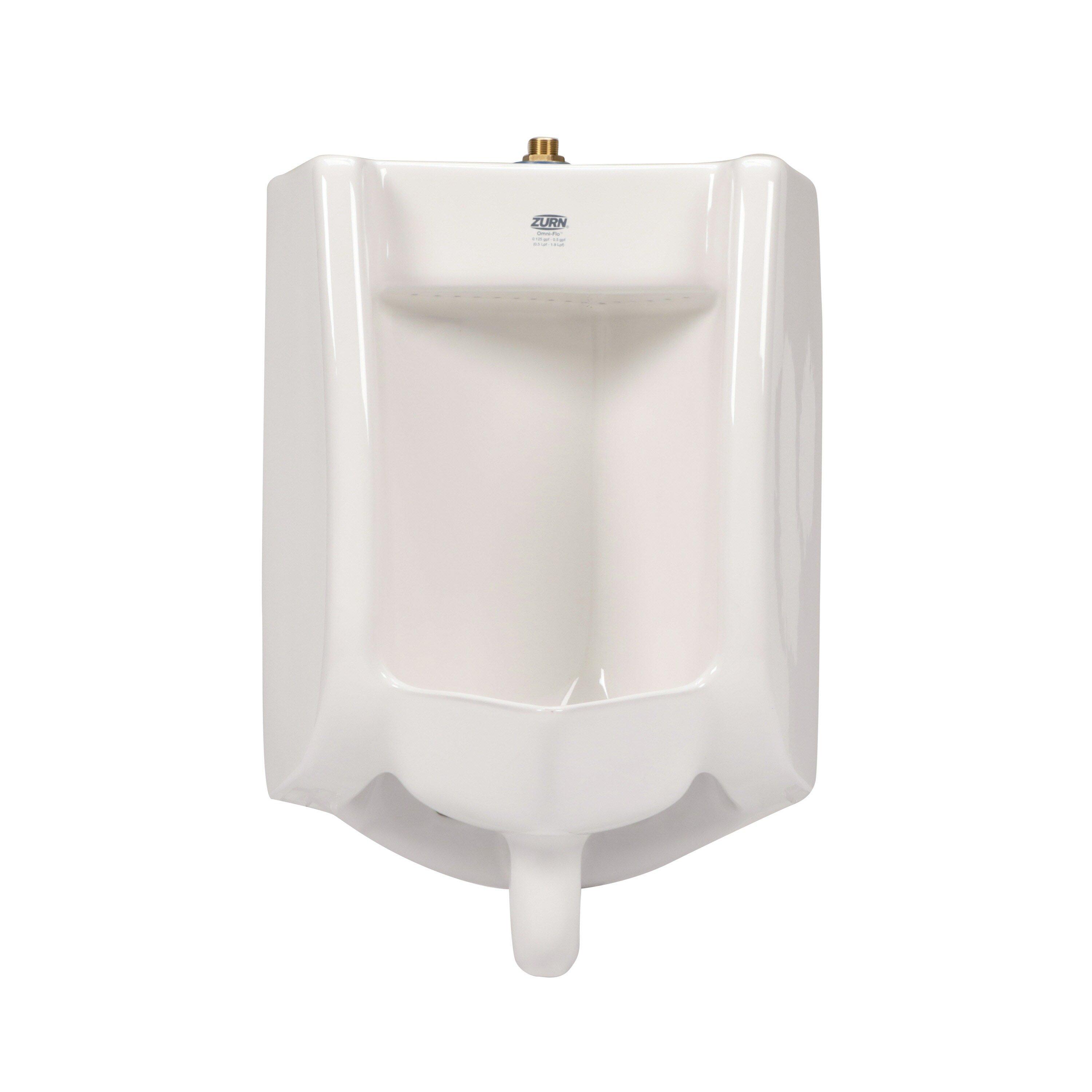

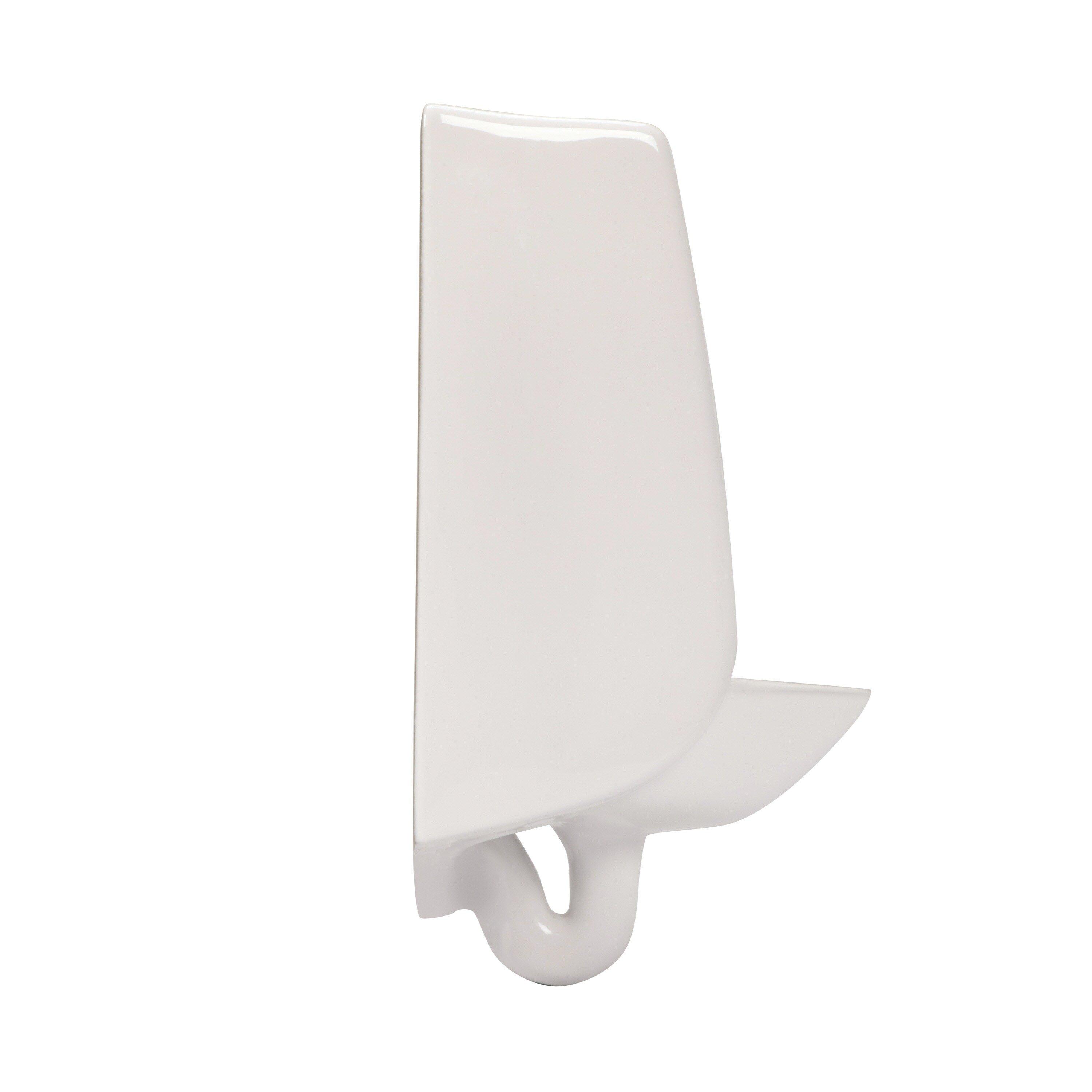

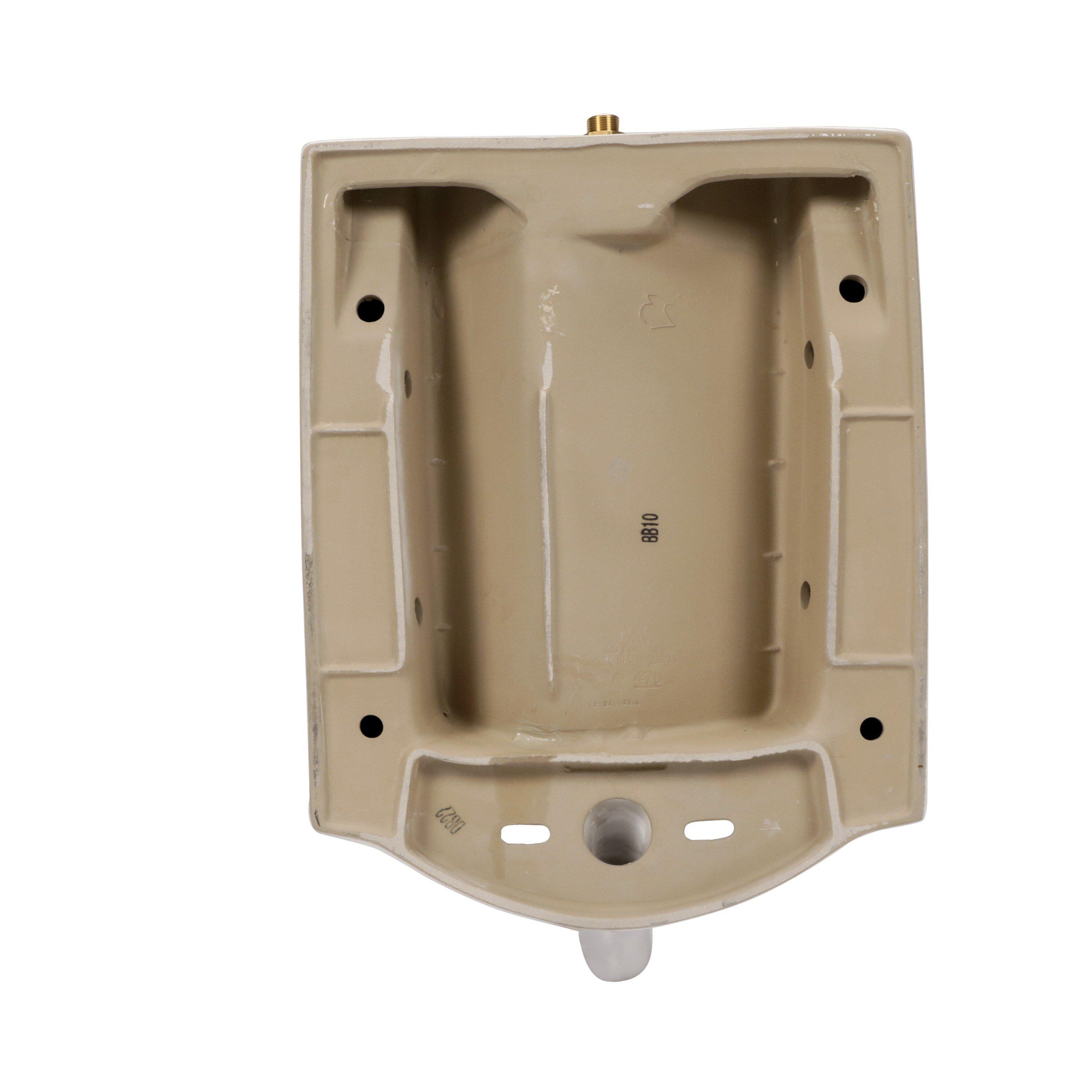

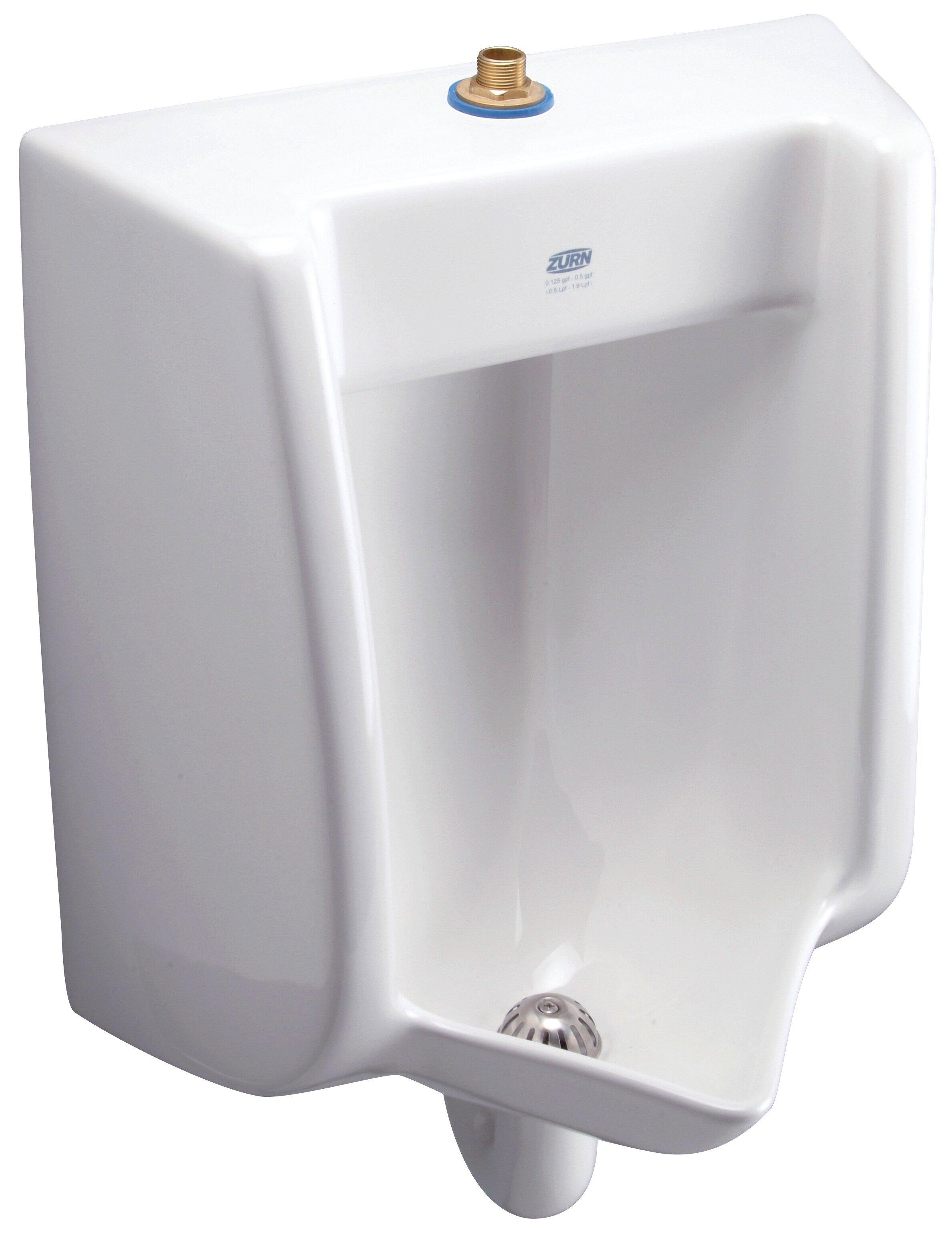

EcoVantage® Washdown Urinal in White

This product requires certification to purchase.
Brand image
You last purchased this on

Zurn

EcoVantage® Washdown Urinal in White

  • Fast #
  • Part #ZZ5755U
  • Item #4845406
  • Manufacturer Part #Z5755-U
4.8 out of 5 Customer Rating
This product requires certification to purchase.

X Points
Color Finish Name: White Select Color Finish Name
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping

Frequently Purchased Together

Product Details

  • Durable vitreous China resists stains and scratches
  • ¾” top spud
  • High-efficiency washout action increases flushing power
  • 14” extended rim
  • Oversized footprint covers previous equipment marks for simplified retrofit installation
  • Concealed universal wall bracket for easy retrofit installation
  • Vandal-resistant outlet strainer
  • 2” I.P.S. outlet flange and rubber gasket with integral trap
  • 3-year limited warranty
  • ADA compliant when installed at proper height
  • Requires Certification
  • ADA Compliant


Specifications

ADA Compliant:
Yes
ANSI:
ANSI A117.1
ASME:
ASME A112.19.2
Application:
Commercial, Residential
BAA Compliant:
No
Basin Shape:
Rectangle
Bowl Shape:
Rectangular
CARB OTC LEED Compliant:
No
CEC Compliant:
For Sale in CA
CSA Certified:
CSA B45
Collection:
EcoVantage®
Color Finish Category:
Whites
Color Finish Name:
White
Depth:
18-1/2 in
EPA Compliant:
Yes
End Connection 1:
NPSM
End Connection 2:
NPSM
End Connections:
NPSM
Faucet Connection:
NPSM
Fitting Size 1:
3/4 in
Fitting Size 2:
2 in
Fitting Sizes:
3/4 in x 2 in
Flow Rate:
0.125 gpf
Flow Rate Range:
0.125 gpf - 1.0 gpf
Flush Type:
Washdown
GSA Approved:
No
Green Product:
Yes, WaterSense
Height:
25-5/8 in
IAPMO Listed -:
Yes
Inlet Outlet:
3/4 in inlet
Inlet Spud Size:
3/4 in
Length:
18-1/2 in
MA Approved -:
Yes
Material:
Vitreous China
NSF Certified:
No
Origin:
Global
Outlet Spud Size:
2 in
Spud Location:
Top
Toilet Seat Shape:
Rectangular
Toilet/Urinal Outlet:
Rear
UL Listed:
No
Urinal Installation:
Wall Mount
WaterSense Labeled:
Yes
Weight:
56 lb
Width:
14-1/4 in
cUPC Certified:
Yes
