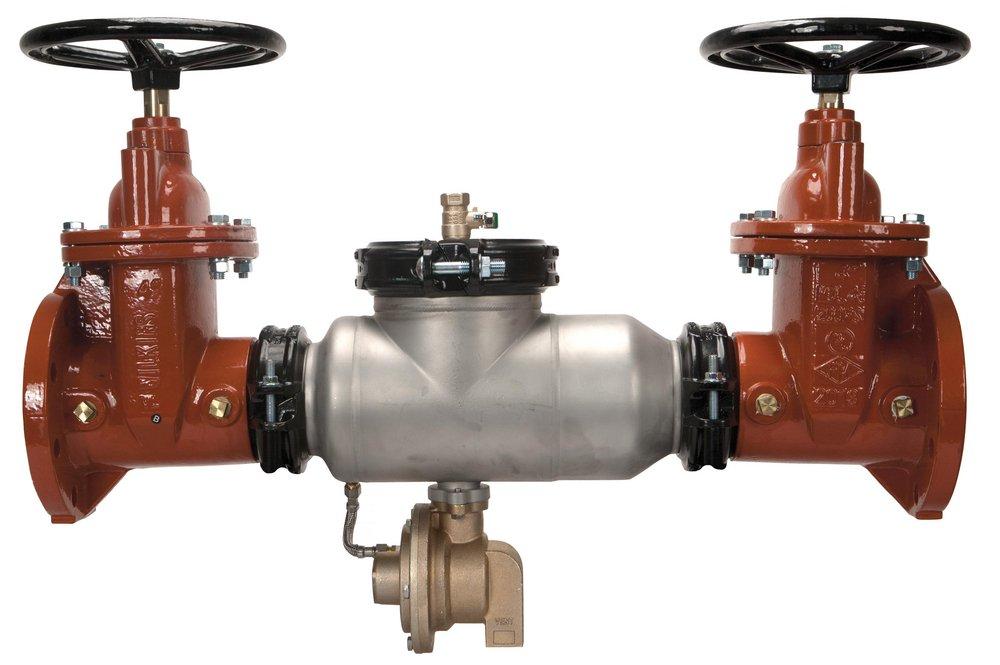

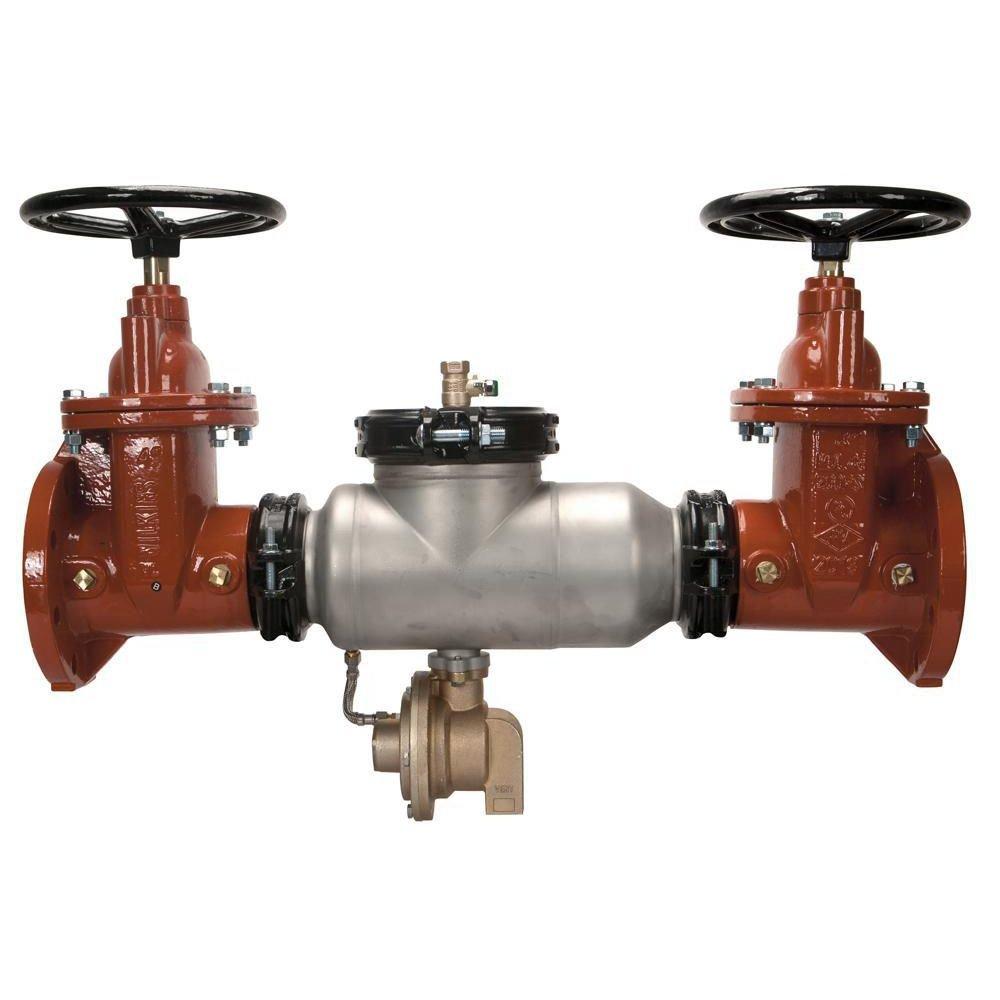

4 in. 304L Stainless Steel Flanged Reduced Pressure Principle Assembly
Zurn Wilkins
375AST 4 in. 304L Stainless Steel Flanged Reduced Pressure Principle Assembly
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Zurn Wilkins
375AST
4 in. 304L Stainless Steel Flanged Reduced Pressure Principle Assembly
4-375AST
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- CSA® Certified
- IAPMO® Listed
- Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
- Flanged, grooved, or grooved x flanged end connections provide versatile installation
- Short lay-length offers reduces installation time and costs in compact spaces
- Patented Compound Check offers reliable performance, improved flow characteristics, and installation in lower-pressure systems
- Stainless steel body protects against corrosion
- ASSE® Listed 1013
- AWWA Compliant C511 (with gates only), and C550
- FM® Approved
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Height
24-1/4 in
Length
34-22/25 in
Pressure - Maximum
350 psi
Valve Size
4 in
Weight
176 lb
Width
12-1/2 in
Characteristics & Features
Coating
Epoxy
Collection
375AST
Installation Type
Horizontal, Vertical
Material
Stainless Steel, Rubber, Plastic
Material Type
300, Buna-N, EPDM, Noryl®
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Stainless Steel
Valve Body Style
Inline
Valve Material
Stainless Steel
Valve Operator
Wheel Handle
Valve Port Opening
Full Port
Valve Seat Material
Stainless Steel
Valve Type
Reduced Pressure Principle Assembly
Electrical & Operational Information
Maximum Temperature
33
Minimum Temperature
33
Pressure - High
175
Warranty & Product Information
ANSI
ANSI 61
ASSE Standards
ASSE 1013
AWWA
AWWA C-511
CSA Certified
CSA
FM Approved
Yes
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF Certified
Yes
Recommended Valve Application
Water
UL Listed
Yes
UPC
612052112244
